Instructions for the installer
32
Never use the oven door to lever the oven into
place when fitting.
Avoid exerting too much pressure on the oven door
when open.

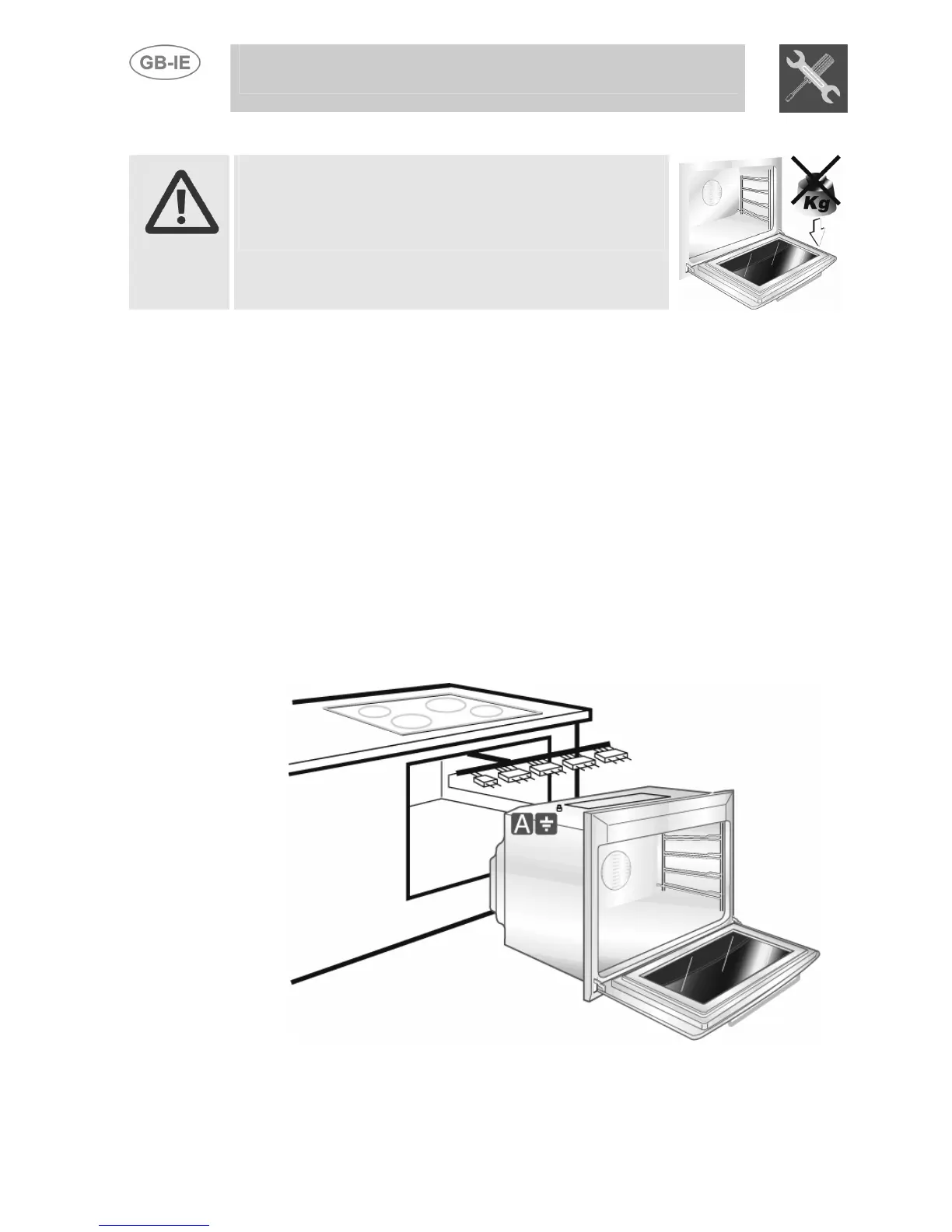

2.3 Connecting the hob to the oven
Once installed, the hob must be connected to the oven. Install the oven
allowing enough room for the following operations to take place.
• Connect the earth wire (yellow-green) of the hob to the earth terminal
A of the oven (see figure).
• Fit the hob connectors into the appropriate sockets in the top cover
of the oven. Make sure that the colours and symbols of the
connectors match those of the oven sockets.
• If the hob is equipped with a connector for the residual heat indicator,
this must be fitted into the free socket on the right handside.
The oven can now be fully mounted into the cabinet; make sure that the
power cable is properly routed and does not come into contact with parts
which may become hot during operation.
