Installation
125
EN

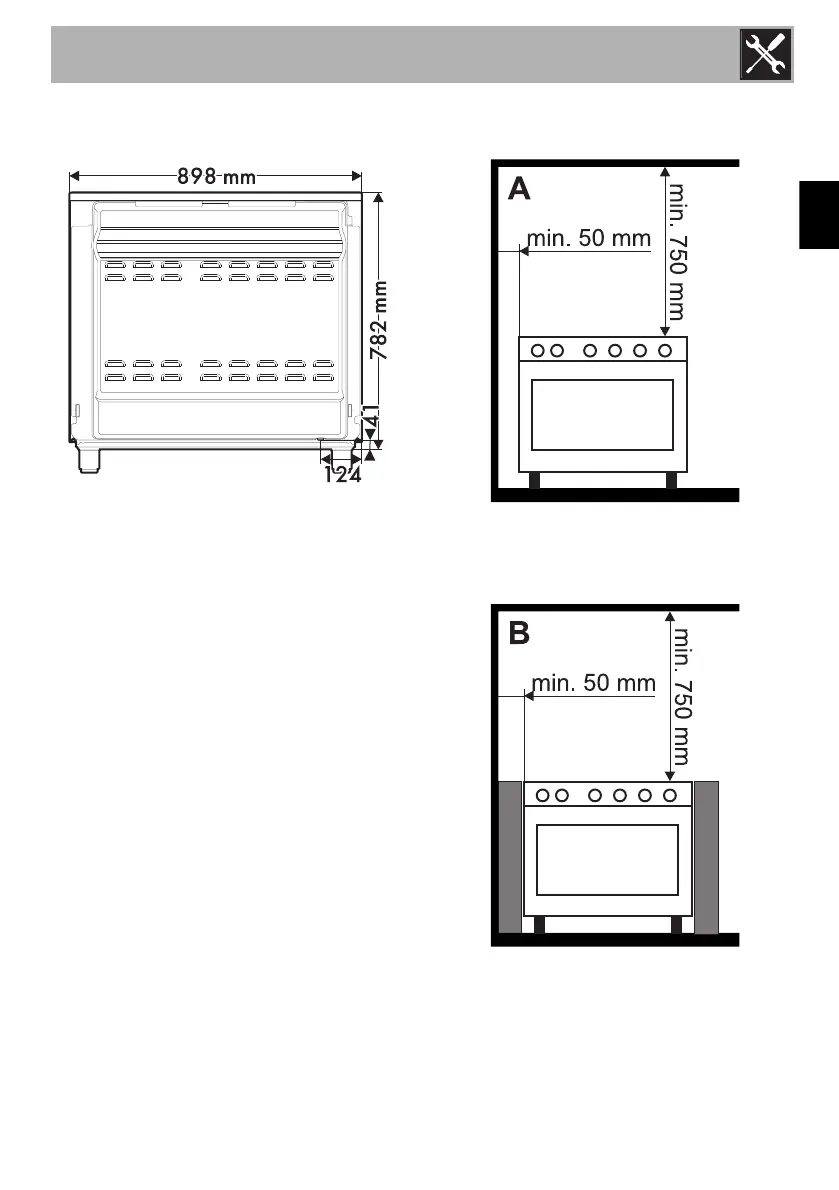

Appliance dimensions
Position of gas and electrical connections.
General information
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of 50 mm
from the side of the appliance, as shown in
figures A and C relative to the installation
classes.
Any wall units positioned above the
worktop must be at a minimum distance of
at least 750 mm. If a hood is installed
above the hob, refer to the hood instruction
manual to ensure the correct clearance is left.
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
B - Class 2 subclass 1
(Built-in appliance)
