Instructions for the user

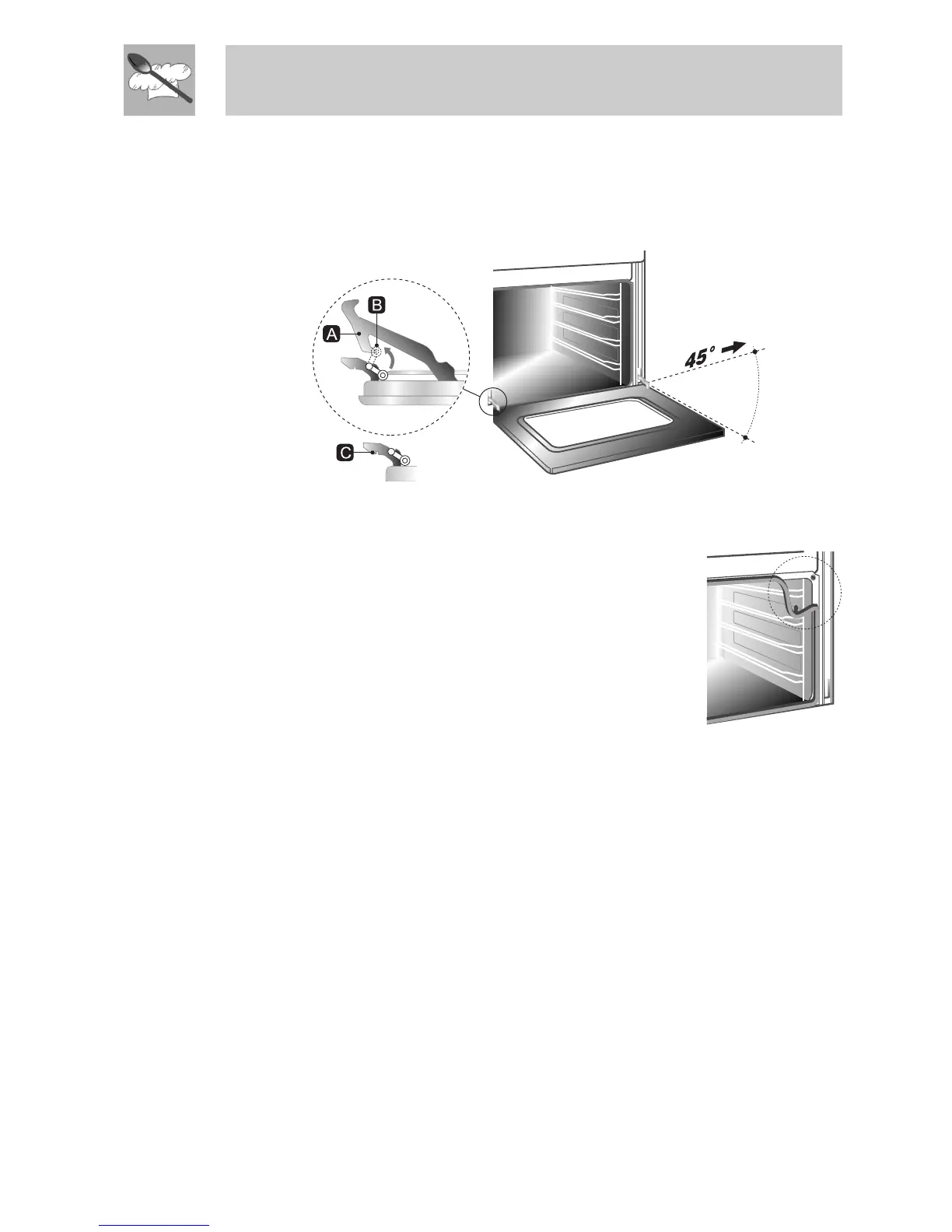

8.2 Removing
Hold the door on both sides with both hands near hinges A and raise levers
B. Lift up the door forming an angle of about 45° and remove. To refit, slide
the hinges A in the grooves, drop the door and release levers B.
8.3 Oven door seal
To permit thorough cleaning of the oven, the seal
may be removed. Before removing the seal, take off
the door as described above. Once the door has
been taken off, lift the tabs at the corners as shown
in the figure.
After cleaning, refit the seal with the longer side
horizontal and insert the tabs into the appropriate
holes starting from the top ones.
