29

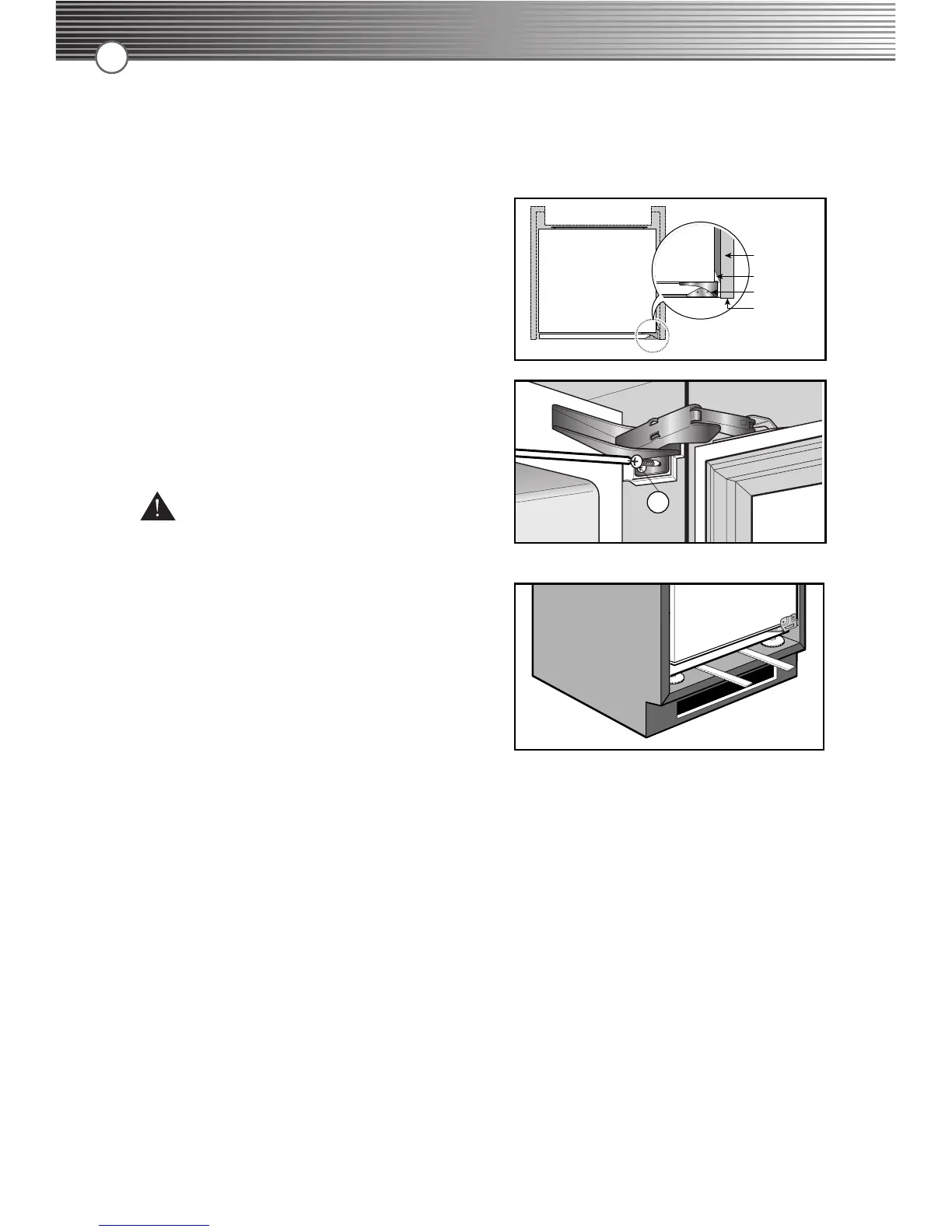

7. Make sure that the end of the hinge base ②
is aligned with the front right of the furniture.
9. Use the ruler to make sure that the left
depth and the right depth are constant as
shown at Figure 4.
8. Fix the top hinge and the bottom hinge by
the hinge screws ⓕ (four spots).
(See Figure 3)
When fixing the screws, be careful of being
damaged by the hinge operation.
Furniture
Hinge
Hinge base②
Front side of
the furniture
(Figure 4)
(Figure 3)
f
6. Procedure to install
2) Case related work after placing the refrigerator
