30

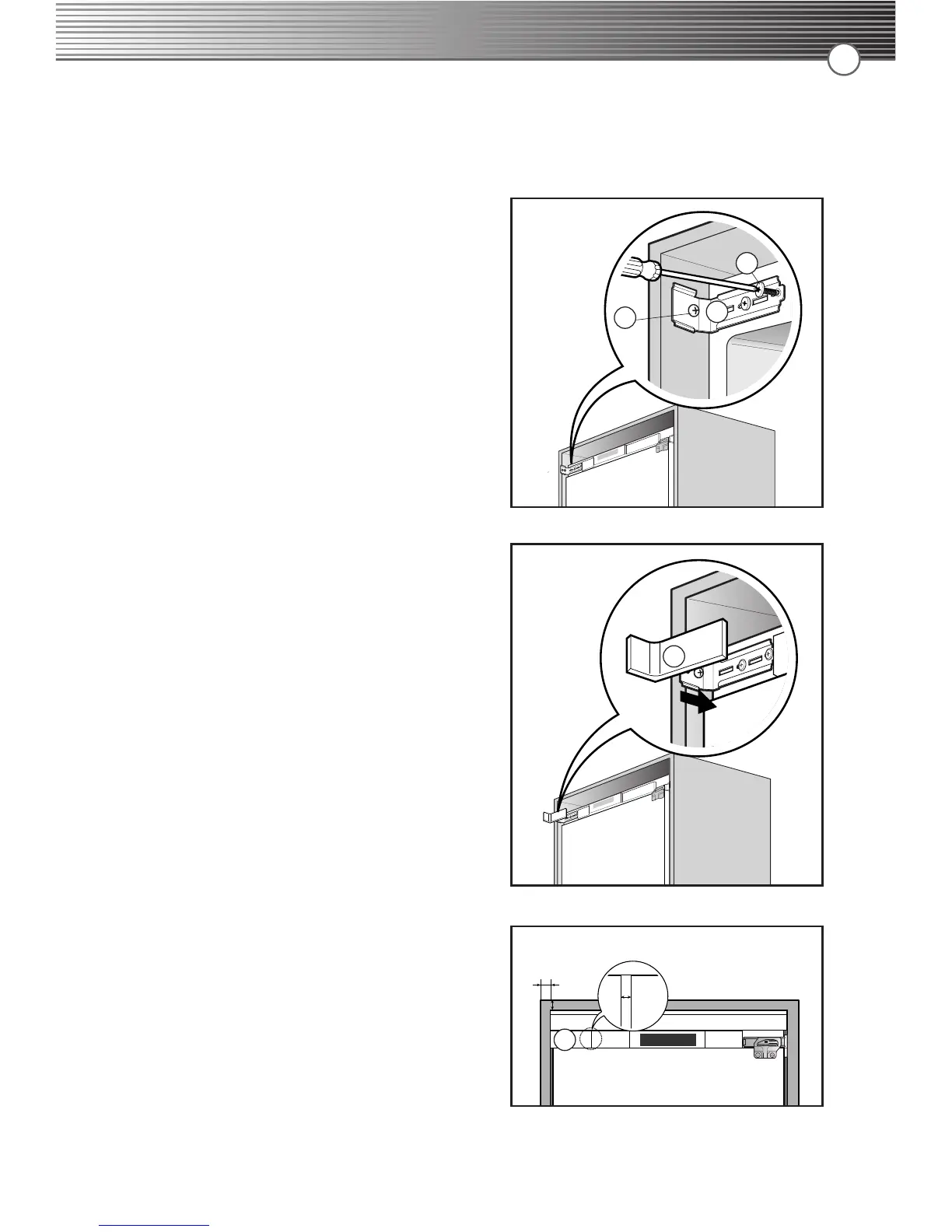

10. Open the refrigerator door, place the hinge
bracket ⑤ at the top left of the refrigerator,
and fix them at the furniture and the
refrigerator respectively with the wood screw
ⓑ (one spot) and the bracket screws ⓔ (two
spots). (See Figure 5)
11. Insert the hinge bracket cover ⑥ from the left
and then press it. (See Figure 6).
※※
Reference
If the furniture thickness is 15mm, about 6mm of
gap between the hinge bracket cover ⑥ and the
cover display is generated.
• If the furniture thickness is 18~20mm
About 1mm gap is generated.
6. Procedure to install
2) Case related work after placing the refrigerator
6mm
display
15mm
(Figure 5)
(Figure 6)
e
b
5
6
6
