Smeg KITFD050 - Button Switch Installation; Overflow Connection; Water and Drainage Connection

EN

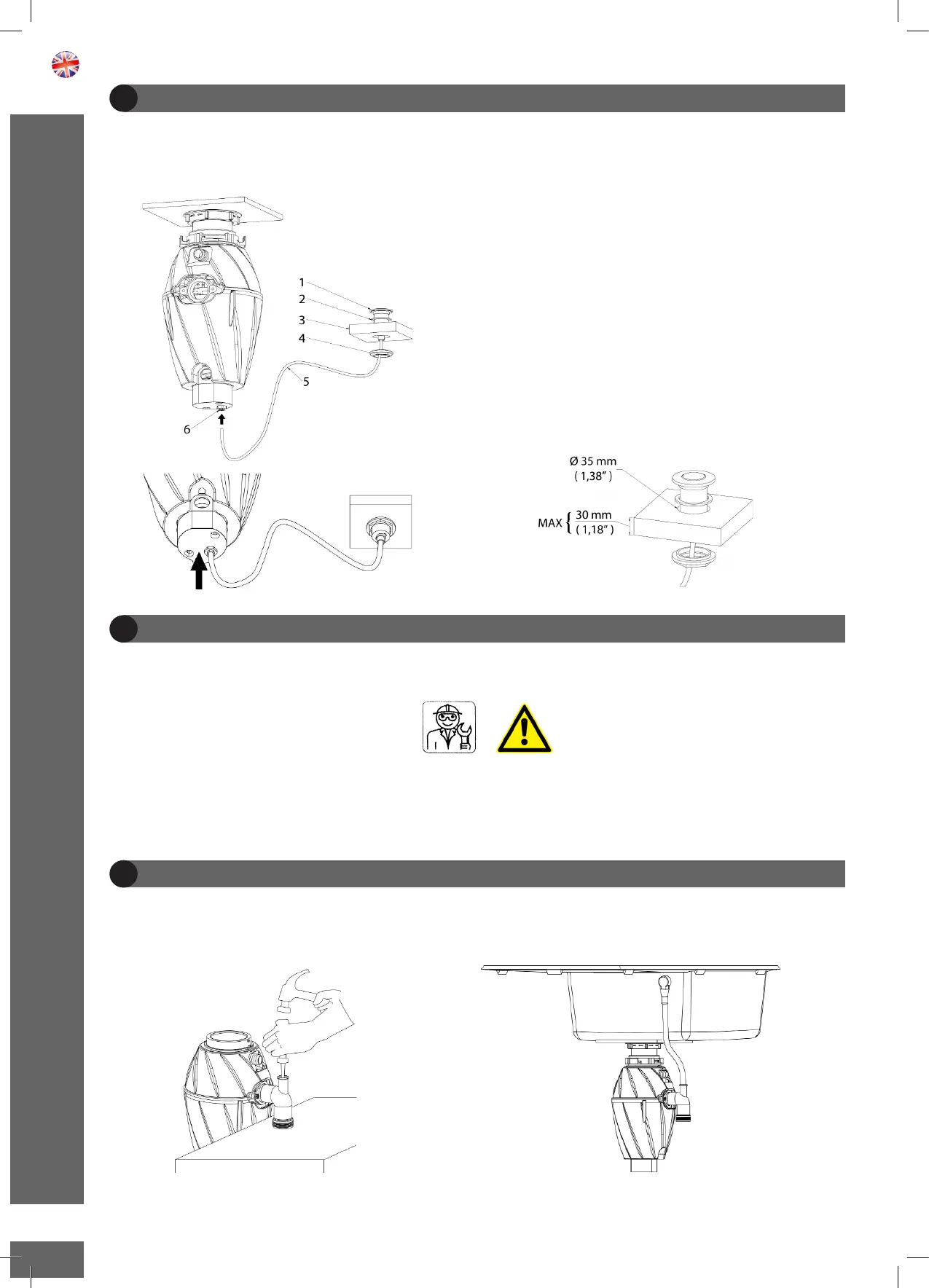

BUTTON SWITCH INSTALLATION
10
For installation of the food waste disposer START - STOP pneumatic push button follow the connection
diagram shown in the figure:
1. Pneumatic push button
2. Gasket
3. Connection surface (sink edge/surface)
4. Fixing ring nut
5. Pipe
6. Pipe fitting
OVERFLOW CONNECTION
12.
Before connecting the sink overflow drain piping, using a screwdriver and a hammer, remove the diaphragm
on the drain elbow.
Removal of the diaphragm
Example of sink overflow drain connection
WATER AND DRAINAGE CONNECTION
11.
Every intervention must be carried out by a qualified professional in accordance with the applicable rules and
regulations on injury prevention.
The user must prepare a proportioned water supply line
Characteristics of the water supply source:
- pressure: 1 - 1,5 Bar (100 -150 kpa) - capacity : 8 - 20 L/min
23
