14

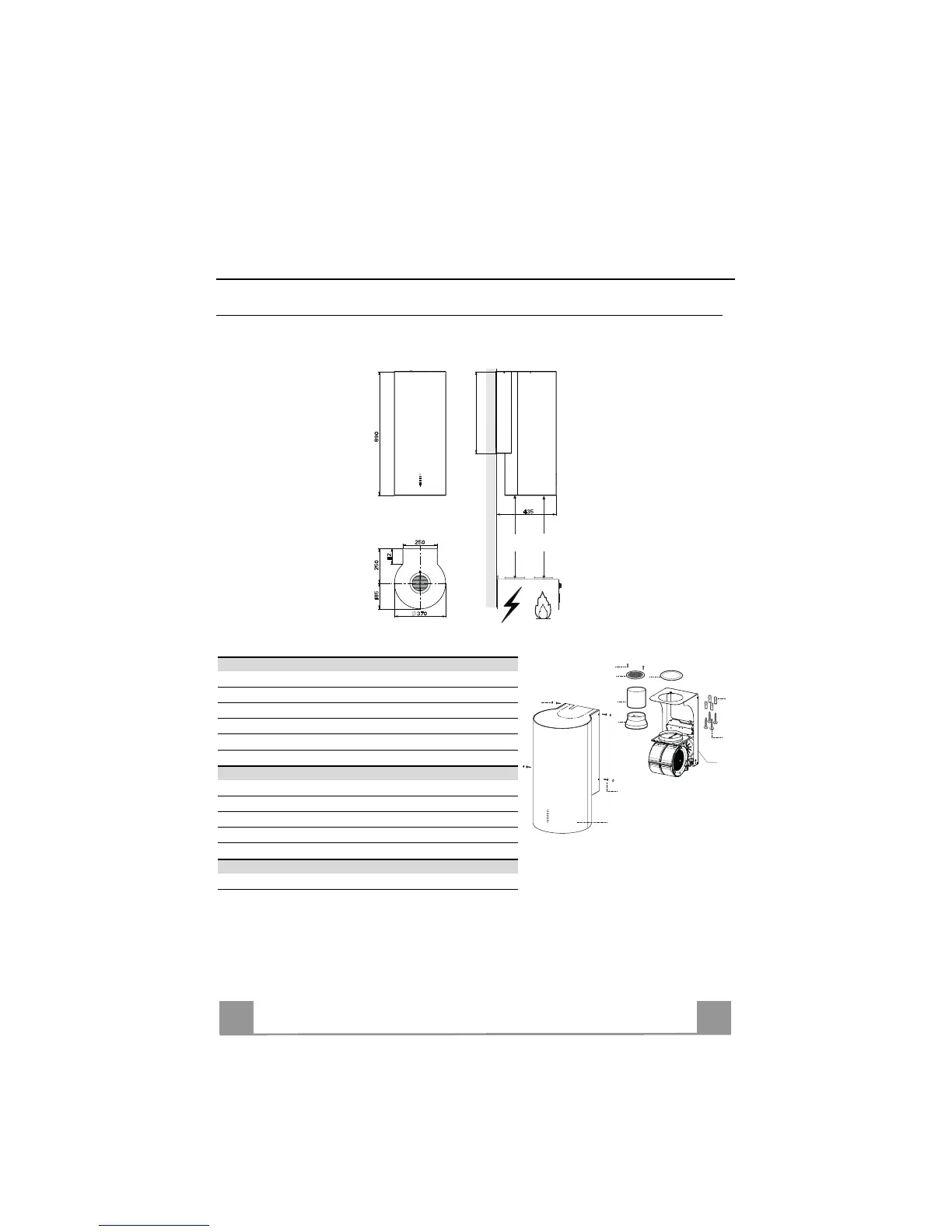

CHARACTERISTICS
Dimensions
Min.
550mm
Min.
550mm
540
Components
Ref. Q.ty Product components
1 1 Hood equipped with: Controls, Lights, Filters
3 1 Hood support equipped with the Exhaust Group
7 1 tube in PVC
8 1 Directioned grid
8c 1 Air outlet reduction ø 120mm
9 1 Reduction flange ø 150-120 mm
Ref. Q.ty Installation components
11 4 Small blocks ø 10
12a 4 Screws 5 x 70
12b 4 Screws M4 x 15
12e 2 Screws 2,9 x 9,5
13 4 Screws plug M4
Q.ty Documentations
1 Instruction booklet
11
12a
3
12b
13
1
9
7
12e
8
8c
