3. Openthetapscompletelyaftermakingthe
hose connection to check for water leaks at
theconnectionpoints.Ifanyleaksoccur,turn
off the tap and remove the nut. Retighten
the nut carefully after checking the seal. To
prevent water leakages and damages caused
bythem,keepthetapsclosedwhenthe
machine is not in use.
Connecting to the drain
• Theendofthedrainhosemustbedirectly
connected to the wastewater drain or to the
washbasin.
A
 Yourhousewillbefloodedifthehosecomes
out of its housing during water discharge.
Moreover,thereisriskofscaldingdueto
high washing temperatures! To prevent such
situations and to ensure smooth water intake
and discharge of the machine, fix the end of
the discharge hose tightly so that it cannot
come out.

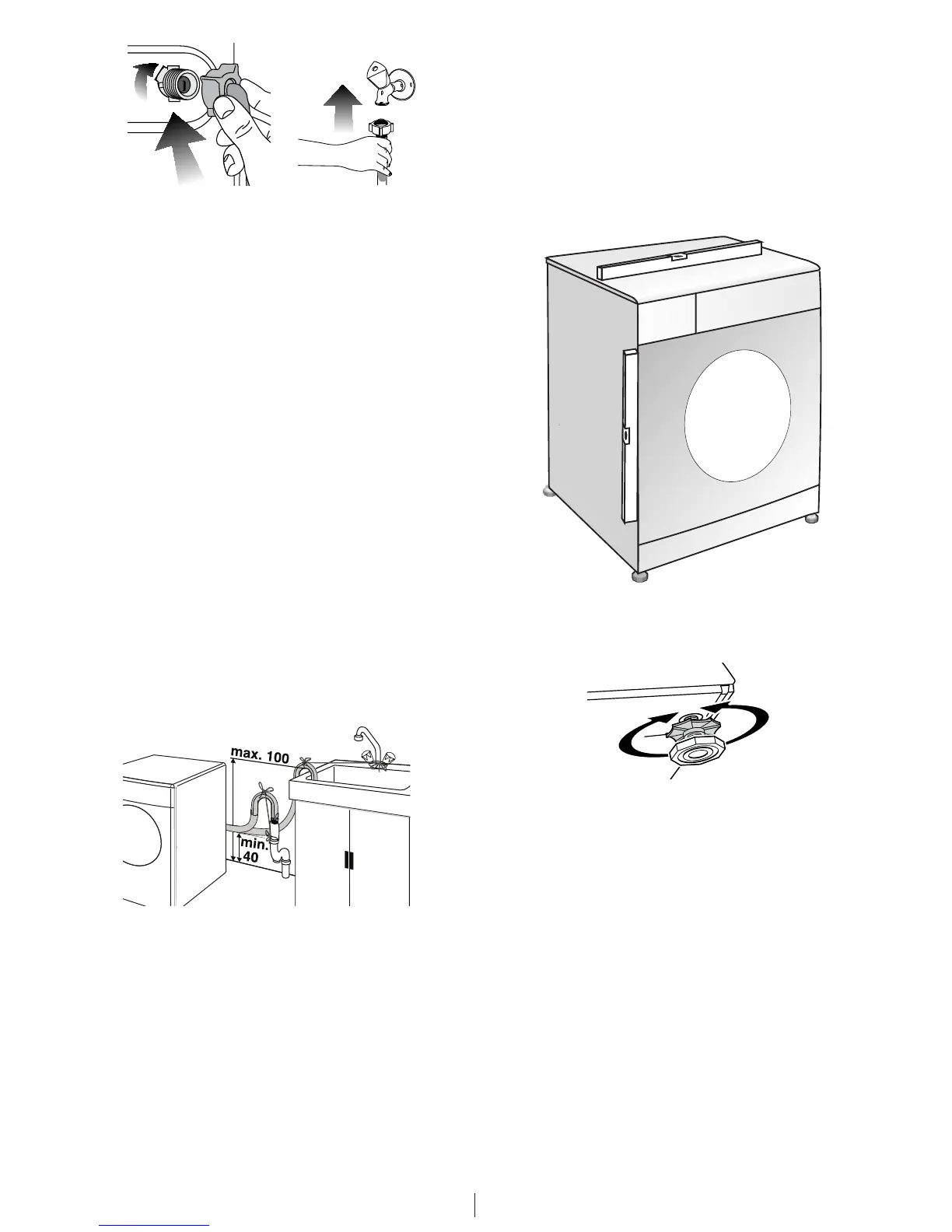

• Thehoseshouldbeattachedtoaheightofat
least 40 cm, and 100 cm at most.
• Incasethehoseiselevatedafterlayingiton
the floor level or close to the ground (less than
40cmabovetheground),waterdischarge
becomesmoredifficultandthelaundrymay
come out excessively wet. Therefore, follow
theheightsdescribedinthefigure.
• Topreventflowingofdirtywaterbackintothe
machine and to allow for easy discharge, do
not immerse the hose end into the dirty water
ordriveitinthedrainmorethan15cm.Ifitis
too long, cut it short.
• Theendofthehoseshouldnotbebent,it
shouldnotbesteppedonandthehosemust
notbepinchedbetweenthedrainandthe
machine.
• Ifthelengthofthehoseistooshort,useit
byaddinganoriginalextensionhose.Length
ofthehosemaynotbelongerthan3.2m.
To avoid water leak failures, the connection
betweentheextensionhoseandthedrain
hoseoftheproductmustbefittedwellwith
an appropriate clamp as not to come off and
leak.
Adjusting the feet
A
 Inordertoensurethattheproductoperates
moresilentandvibration-free,itmuststand
levelandbalancedonitsfeet.Balancethe
machinebyadjustingthefeet.Otherwise,the
product may move from its place and cause
crushingandvibrationproblems.
1. Loosenthelocknutsonthefeetbyhand.
2. Adjustthefeetuntiltheproductstandslevel
andbalanced.
3. Tightenalllocknutsagainbyhand.
A
 Donotuseanytoolstoloosenthelocknuts.
Otherwise,theywillgetdamaged.
Electrical connection
Connecttheproducttoagroundedoutlet
protectedbyafusecomplyingwiththevaluesin
the"Technicalspecifications"table.Ourcompany
shallnotbeliableforanydamagesthatwillarise
when the product is used without grounding in
accordance with the local regulations.
• Connectionmustcomplywithnational
regulations.
• Powercableplugmustbewithineasyreach
after installation.
• Thevoltageandallowedfuseorbreaker
protection are specified in the “Technical
specifications”section.Ifthecurrentvalueof
thefuseorbreakerinthehouseislessthan
16Amps,haveaqualifiedelectricianinstalla
16Ampfuse.
• Thespecifiedvoltagemustbeequaltoyour
mains voltage.
