Instructions for the installer
65
When installing in tall units, comply with the dimensions shown in figures 1 and
2, bearing in mind that the top/rear of the unit must have an opening 35-40 mm
deep.
Remove the screw covers on the frame and screw in the 2 screws A (fig. 5) to
fix the appliance to the unit. Replace the screw covers. For installing beneath a
countertop hob, allow for a rear and bottom clearance as shown in Figure 1 (ref.
F).
See the relevant instructions for fitting and securing the appliance.

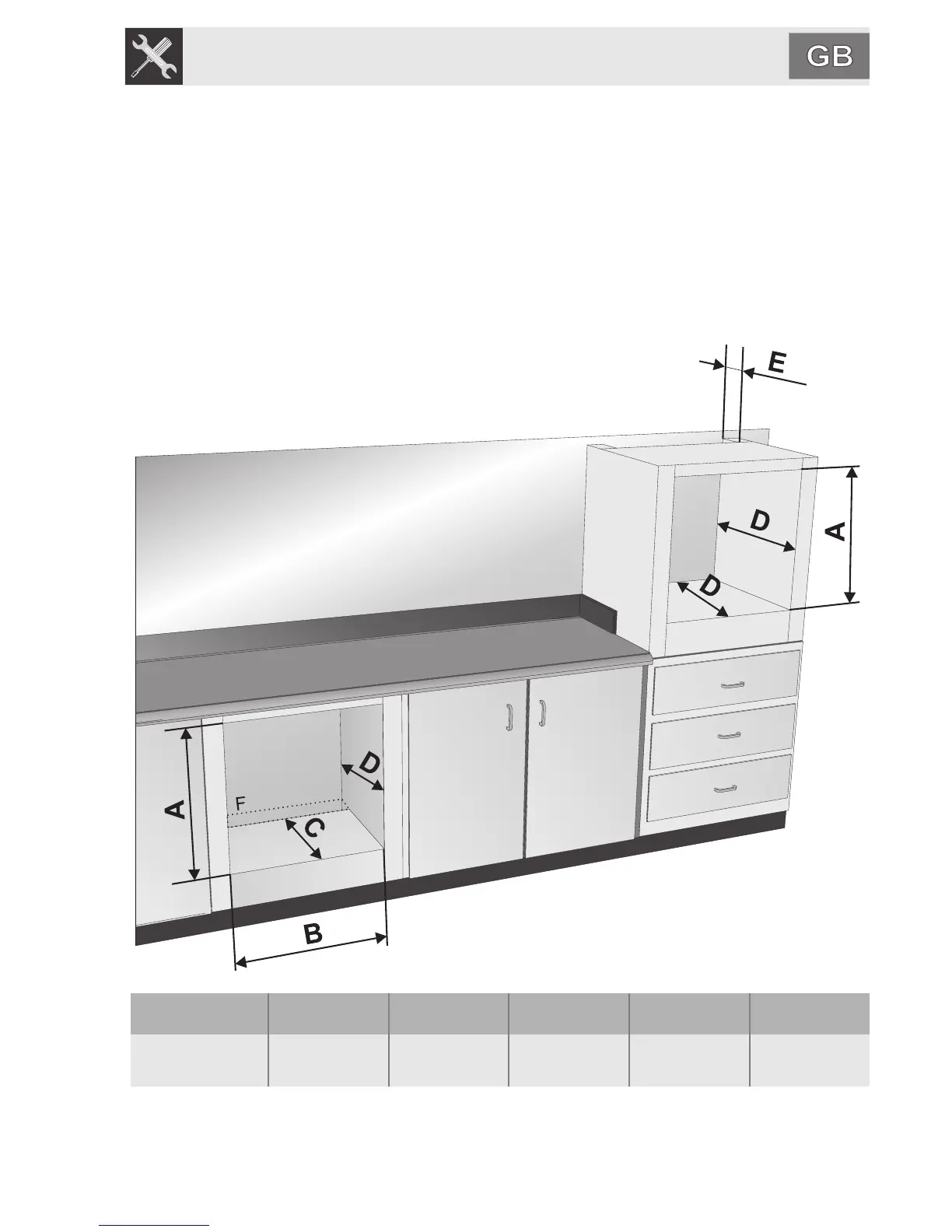

FIG.1
A B C D E
Measurements
(mm)
583 ÷ 585 554 ÷ 564 490 ÷ 500 560 min. 35 ÷ 40
