Instructions for the installer
13

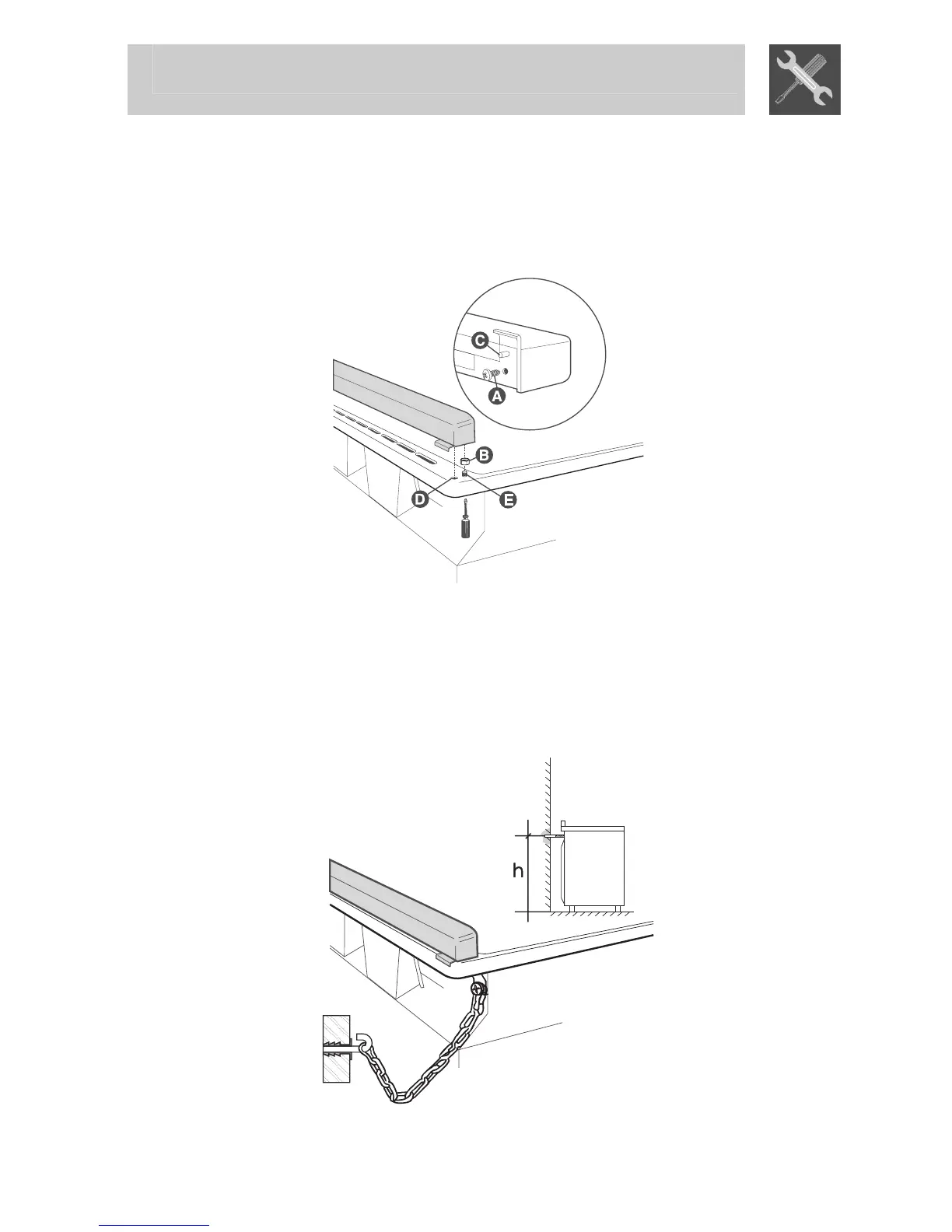

5.3 Mounting the rear top skirtboard (where applicable)
• Loosen screws A located beneath the skirt.
• Loosen nuts B.
• Position the skirt above the top, taking care to align pins C with holes D.
• Secure the skirt to the top by tightening screws E.
5.4 Wall fixing
• Stretch out the chain attached to the cooker horizontally so that the
other end touches the wall.
• Mark the wall in the position where the hole is to be drilled.
• Drill the hole, insert the finned dowels and attach the chain.
• Move the cooker up against the wall.
