Instructions for the installer
HOB TYPE
(CM)

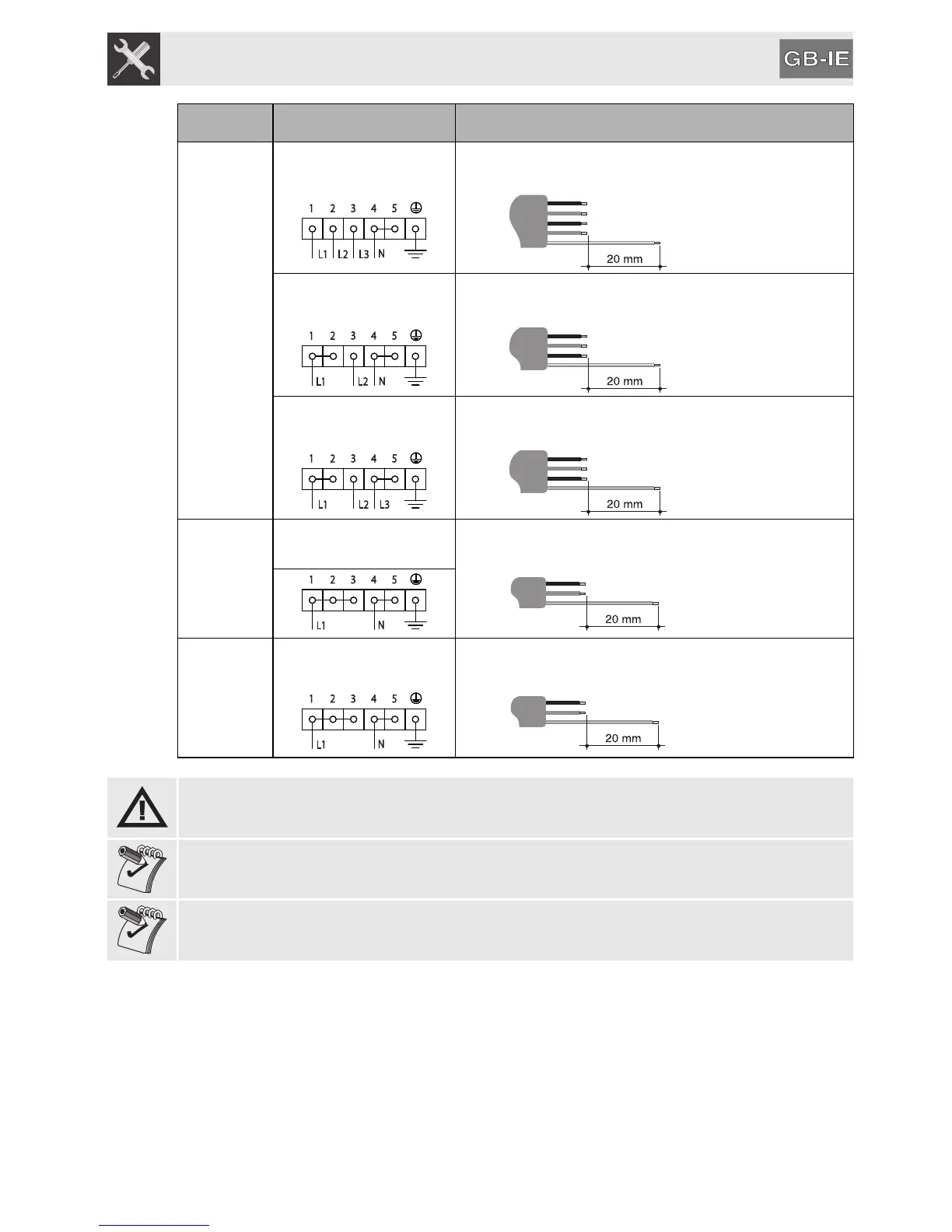

POSSIBLE CONNECTION
TYPES
CABLE TYPE
(if not present)
60 - 70 -90
380 - 415 V 3N~ 5-pole 5 x 2,5 mm² H05V2V2-F
380 - 415 V 2N~ 4-pole 4 x 2.5 mm² H05V2V2-F
220 - 240 V 3~ 4-pole 4 x 2.5 mm² H05V2V2-F
60 - 70
220 - 240 V 1N~ 3-pole 3 x 4 mm² H05V2V2-F
70 - 90
220 - 240 V 1N~ 3-pole 3 x 6 mm² H05V2V2-F
Carefully read the connection layout plate underneath the appliance or around the power cable.
Use H05V2V2-F cables resistant to a temperature of at least 90°C.
The aforementioned power cables are sized taking into account the coincidence factor (in compliance
with standard EN 60335-2-6).
