Smeg SDP20 - 5 Installation and Connection; Overall Dimensions

Installation and connection
30
5. INSTALLATION AND CONNECTION
5.1 Overall dimensions
5.1.1 Home Garden’s overall dimensions

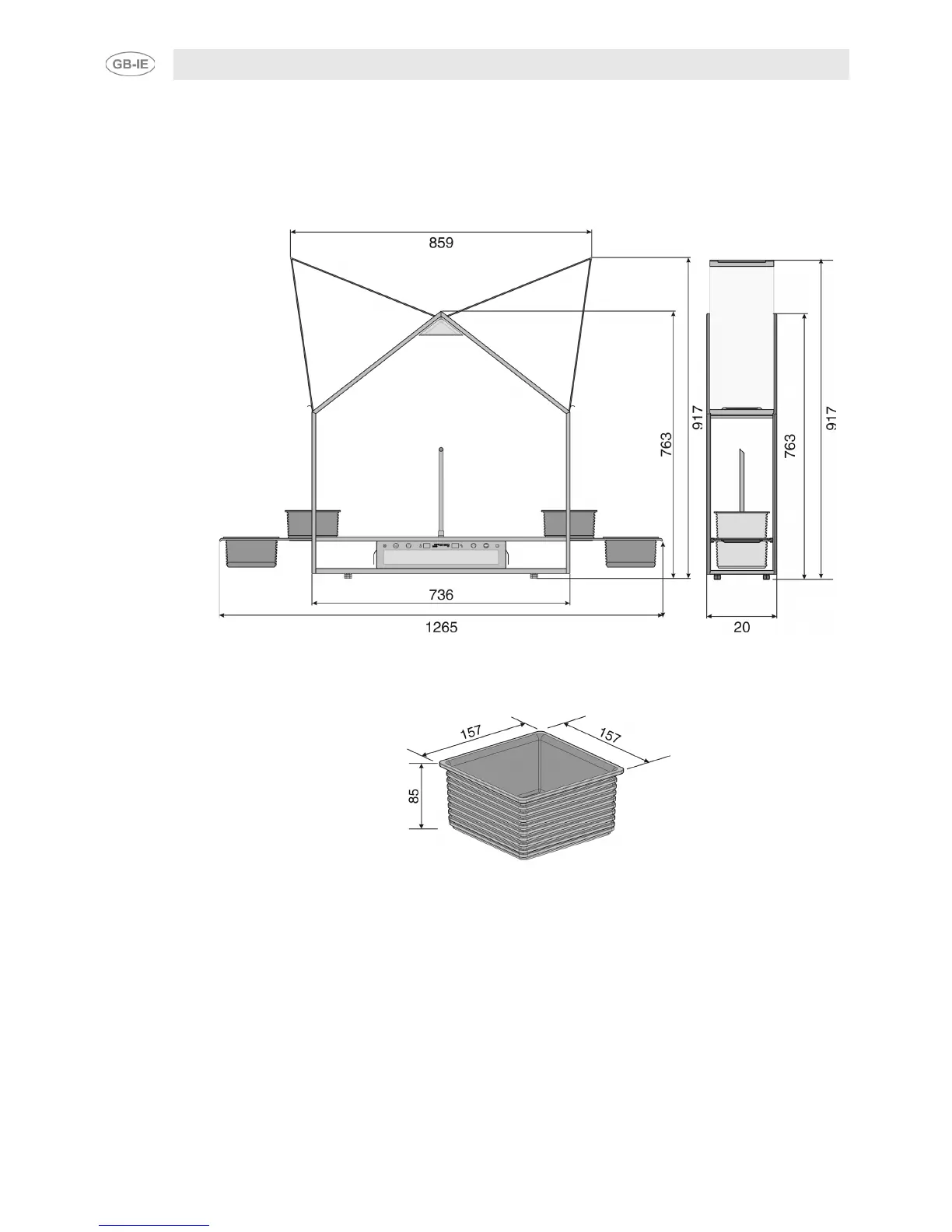

The drawing below shows the Home Garden’s maximum overall dimensions with the glass panels and
trays open.
(Fig.1)
5.1.2 Pot overall dimensions
The drawing below shows the maximum overall dimensions of the pots.
(Fig. 2)
