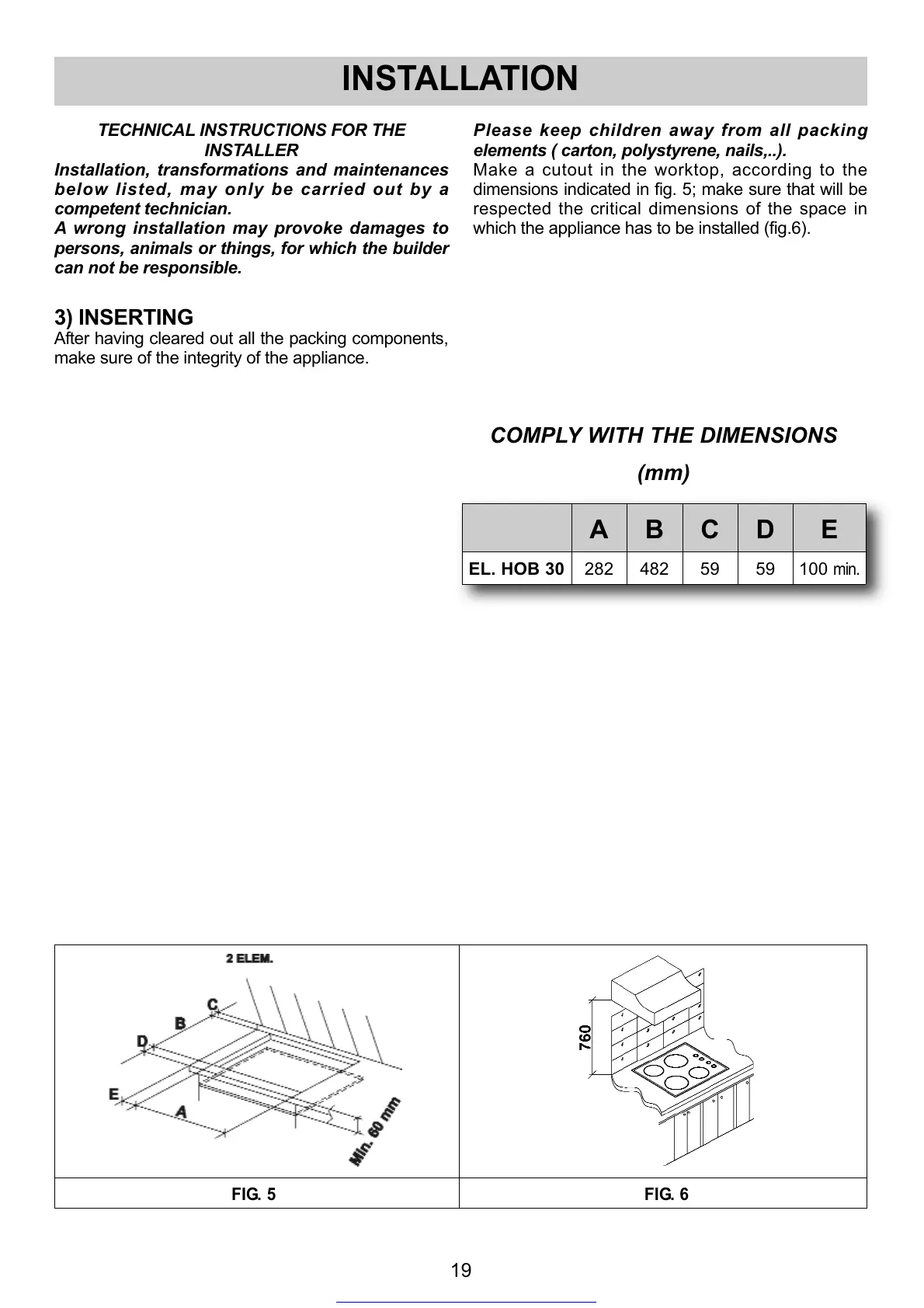

19
INSTALLATION
TECHNICAL INSTRUCTIONS FOR THE
INSTALLER
Installation, transformations and maintenances
below listed, may only be carried out by a
competent technician.
A wrong installation may provoke damages to
persons, animals or things, for which the builder
can not be responsible.
3) INSERTING
After having cleared out all the packing components,
make sure of the integrity of the appliance.
Please keep children away from all packing
elements ( carton, polystyrene, nails,..).
Make a cutout in the worktop, according to the
dimensions indicated in fig. 5; make sure that will be
respected the critical dimensions of the space in
which the appliance has to be installed (fig.6).
COMPLY WITH THE DIMENSIONS
(mm)
A B C D E
EL. HOB 30 282 482 59 59 100
min.
FIG. 5 FIG. 6
