Instructions for the installer
14
6. POSITIONING IN THE COUNTER TOP
The following operation requires building and/or carpentry work so must be
carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry, metal,
solid wood or plastic laminated wood as long as they are heat resistant (T
90°C).
6.1 Fixing to the supporting structure

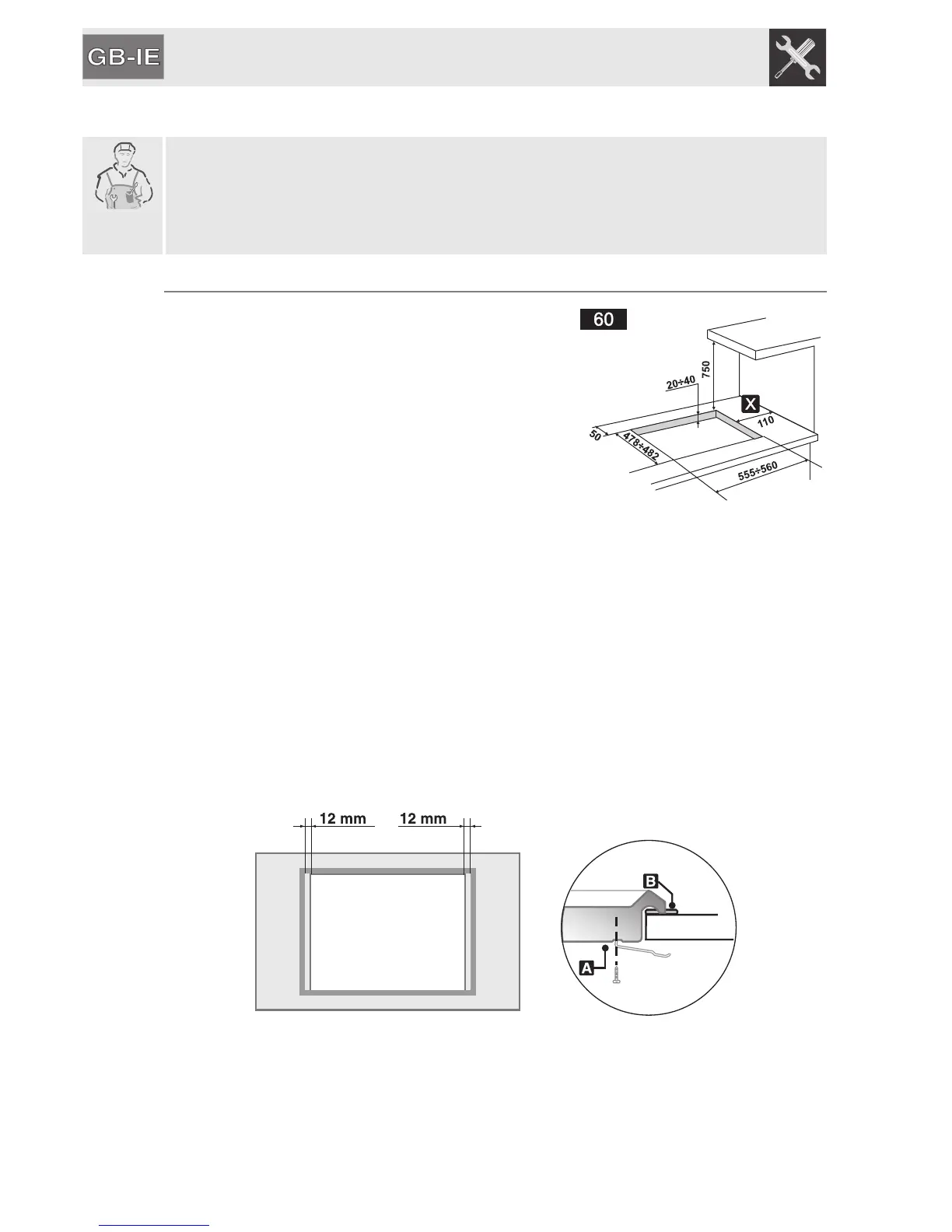

Create an opening with the dimensions shown in
the figure in the top surface of the counter,
keeping a minimum distance of 50 mm from the
rear edge.
This appliance can be mounted against walls
higher than the work surface on condition that a
distance of "X" be kept between the appliance
and the wall as shown in the figure so as to avoid
damage from overheating.
Make sure that there is a minimum distance of 750 mm between the stoves and
any shelf that may be installed directly above it.
Carefully position the supplied insulating seal on the outer perimeter of the hole
made in the counter top as shown in the figures below, trying to make it stick on
the entire surface by applying light pressure on it with your hands. Depending on
the hob model being installed refer to the dimensions in the figure, bearing in
mind that for both models the long front side must brush against the hole. Fix the
hob to the unit using the appropriate brackets A supplied. Carefully trim the
surplus away from edge B beyond the seal.
The dimensions given in the following drawing refer from the hole to the inside of
the seal.
