DSTA-40 TEMP CHECK Thermometer Operator’s Manual

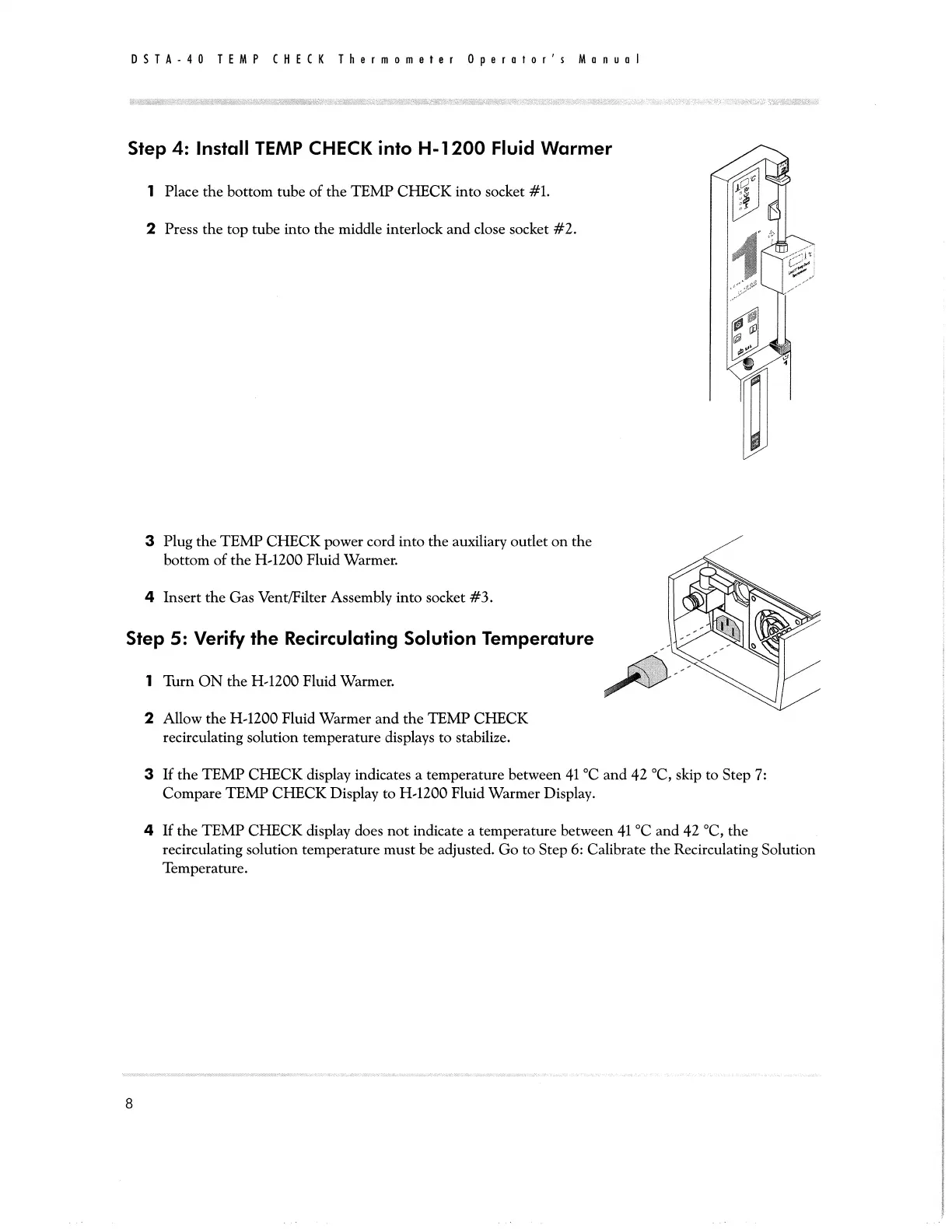

Step 4: Install TEMP CHECK into H-1200 Fluid Warmer
1 Place the bottom tube of the TEMP CHECK into socket #1.
2 Press the top tube into the middle interlock and close socket #2.
에
va:
So
tu
e
==
*
3 Plug the TEMP CHECK power cord into the auxiliary outlet on the
bottom of the H-1200 Fluid Warmer.
4 Insert the Gas Vent/Filter Assembly into socket #3.
Step 5: Verify the Recirculating Solution Temperature
1 Turn ON the H-1200 Fluid Warmer.
2 Allow the H-1200 Fluid Warmer and the TEMP CHECK
recirculating solution temperature displays to stabilize.
3 If the TEMP CHECK display indicates a temperature between 41 °C and 42 °C, skip to Step 7:
Compare TEMP CHECK Display to H-1200 Fluid Warmer Display.
4 If the TEMP CHECK display does not indicate a temperature between 41 °C and 42 °C, the |
recirculating solution temperature must be adjusted. Go to Step 6: Calibrate the Recirculating Solution
Temperature.
