DSTA-40 TEMP CHECK Thermometer Operator's Manual

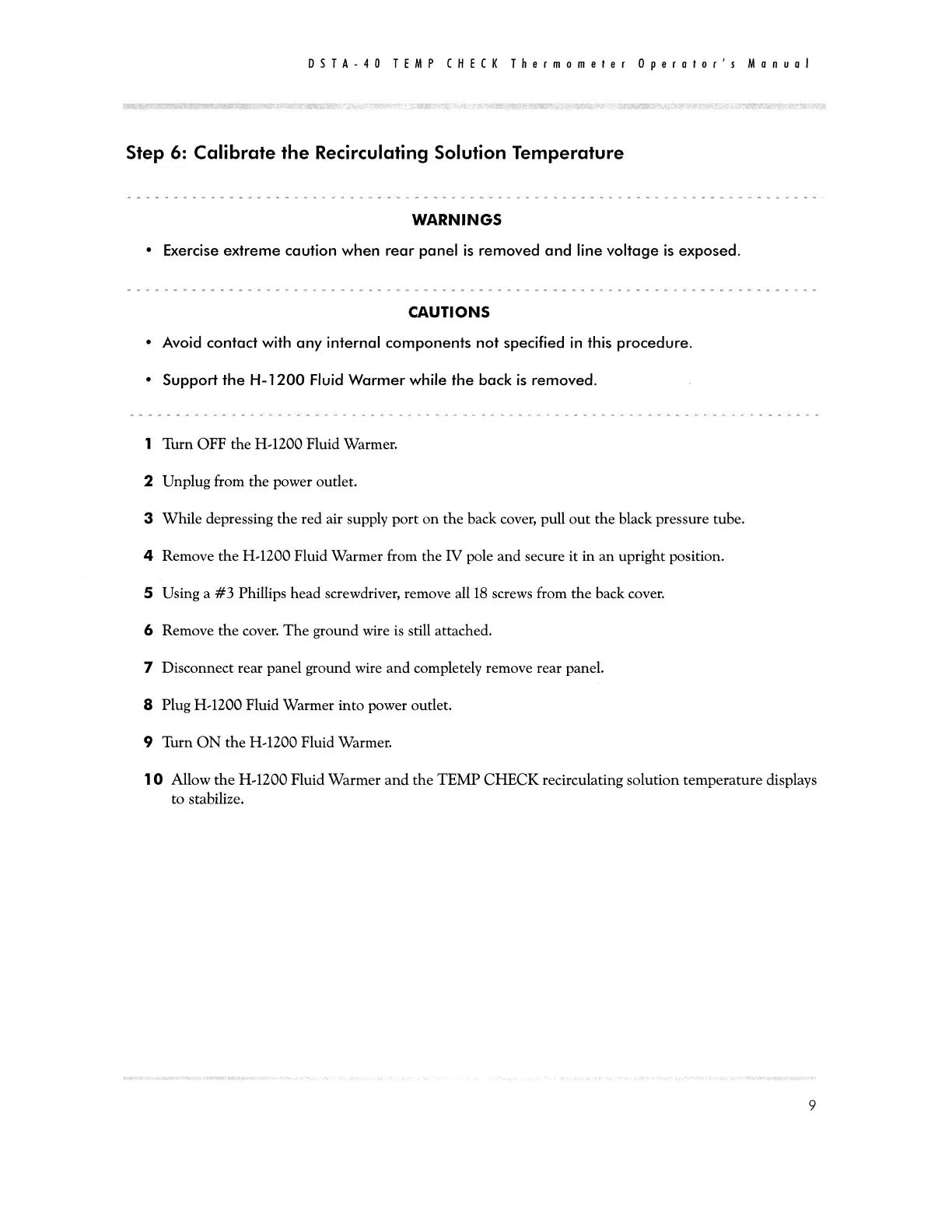

Step 6: Calibrate the Recirculating Solution Temperature
8
9
WARNINGS
Exercise extreme caution when rear panel is removed and line voltage is exposed.
CAUTIONS
Avoid contact with any internal components not specified in this procedure.
Support the H-1200 Fluid Warmer while the back is removed.
Turn OFF the H-1200 Fluid Warmer.
Unplug from the power outlet.
While depressing the red air supply port on the back cover, pull out the black pressure tube.
Remove the H-1200 Fluid Warmer from the IV pole and secure it in an upright position.
Using a #3 Phillips head screwdriver, remove all 18 screws from the back cover.
Remove the cover. The ground wire is still attached.
Disconnect rear panel ground wire and completely remove rear panel.
Plug H-1200 Fluid Warmer into power outlet.
Turn ON the H-1200 Fluid Warmer.
10 Allow the H-1200 Fluid Warmer and the TEMP CHECK recirculating solution temperature displays
to stabilize.
