Time and Frequency Systems
Model 9100 Modular Frequency and Time System
A-3
TM4400013 REV. D
Features
• Single or dual redundant configurations
• GPS discipline of crystal and rubidium
oscillators
• Low phase noise and spurious on sine
wave outputs
• Modules “Hot Swappable”
• RS-232 and Network interfaces
• Network Time Server
Applications
• Communications networks
• Satellite ground stations
• Mobile radio synchronization
• Station / BITS clock
• Test and measurement systems

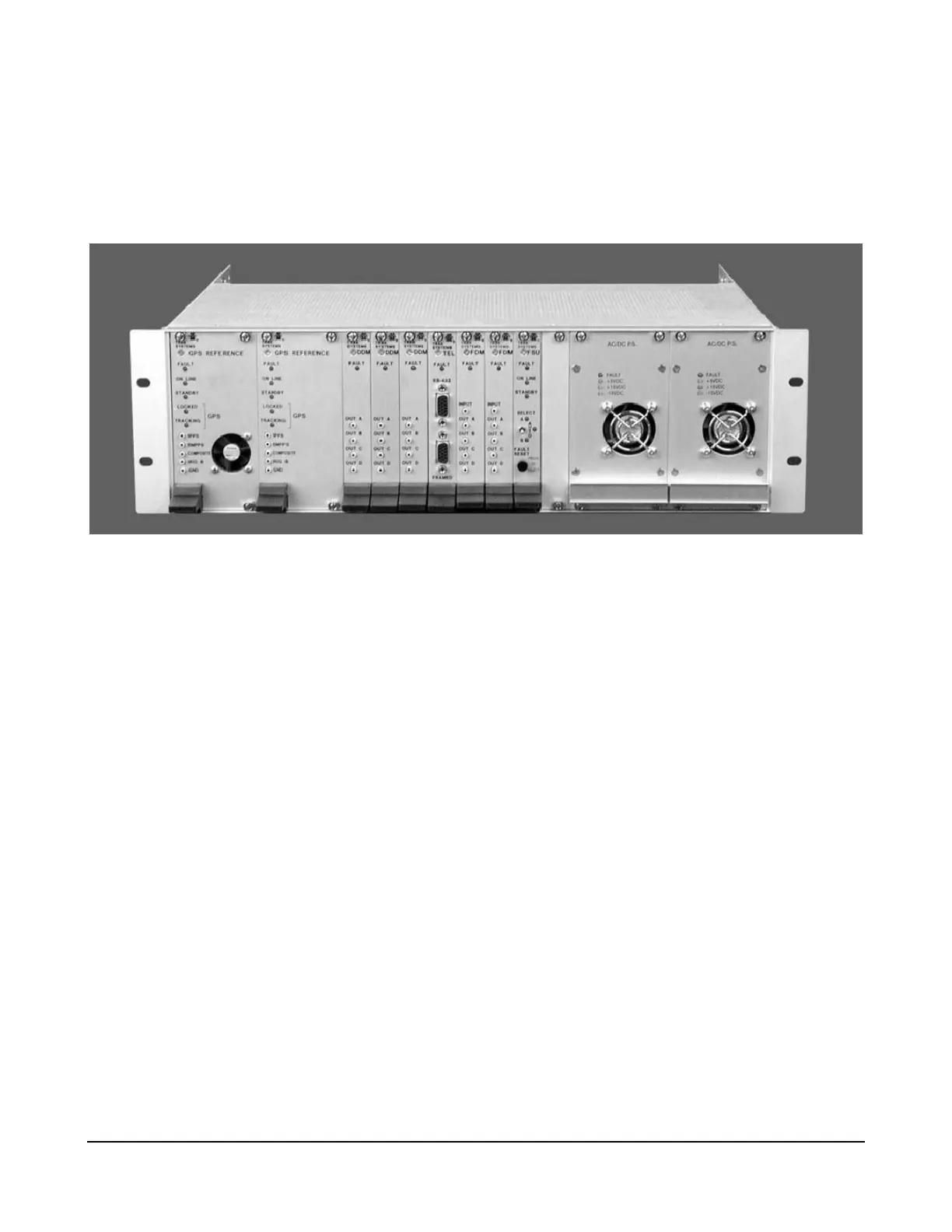

The Model 9100 is a robust and versatile modular frequency and time system. Ultra-stable
frequencies, rates, and telecom outputs are all referenced to GPS. Disciplined oscillators include
single and double oven crystal oscillators as well as rubidium oscillators. Once synchronized to GPS,
sophisticated oscillator discipline algorithms maintain a high degree of precision and smoothness on
all outputs. With a wide selection of plug-in functional modules, the Model 9100 is highly configurable.
Dual redundant configurations include two antennas, GPS receivers, and power supplies. And, for
increased versatility, a Digital Distribution Unit, Model 9200, is available and produces as many as 56
additional digital outputs. Model 9200’s may be “daisy – chained” for system users requiring a very
large number of digital signals
.
