2-4 REAR PANEL CONNECTORS AND FUSES
The Model 9200 rear panel is shown in Figure 2-1. All connectors, fuses, and indicators are described in Table
2-1.

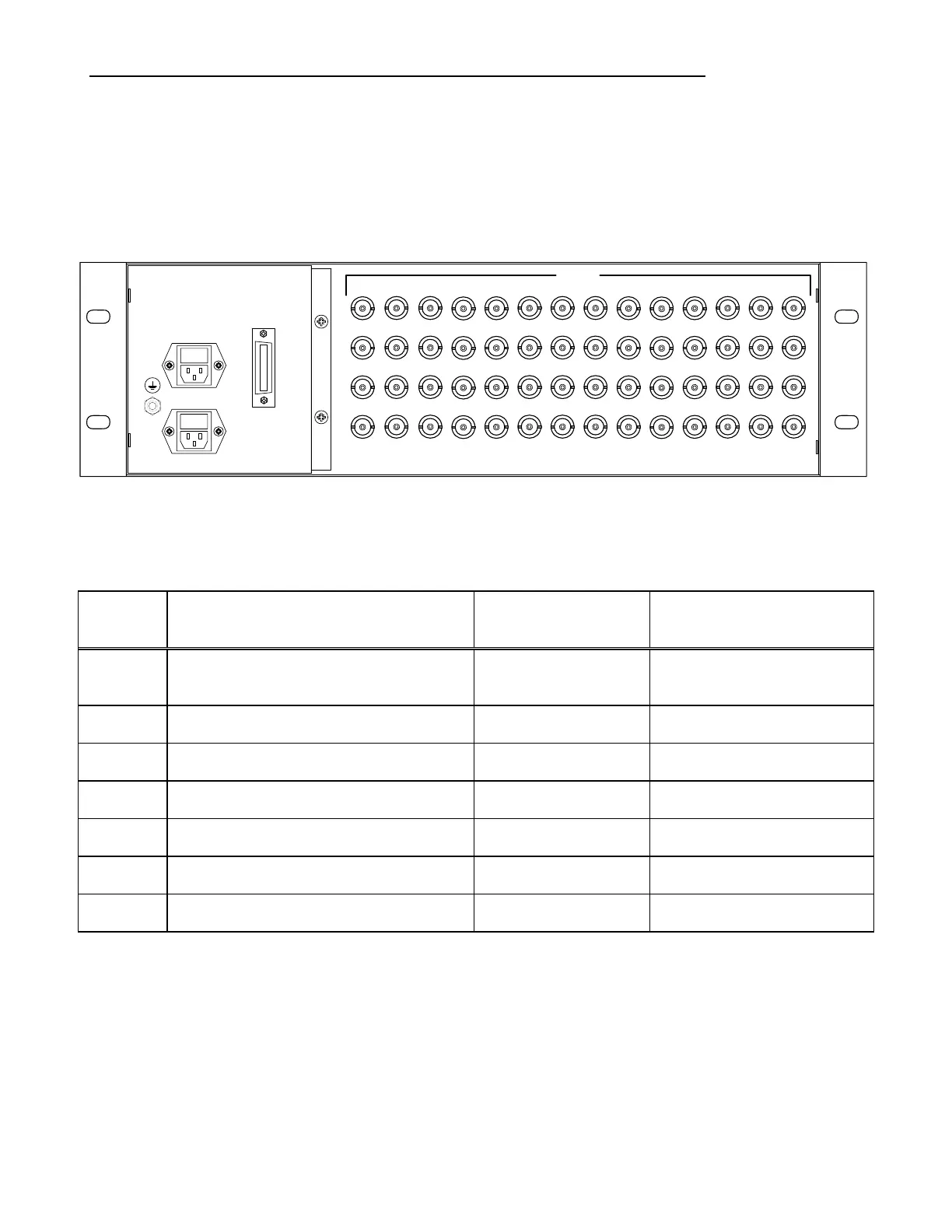

Figure 2-1. Model 9200 Rear Panel
Table 2-1. Rear Panel Connectors and Fuses
REF
DES
FUNCTION
CHASSIS
CONNECTOR
MATING
CONNECTOR
J57 Reference Inputs from Model 9100
(See Table 2-3 for connections)
AMP 554088-1
female
Interface cable, 1meter,
supplied by TRAK
J1 – J56 DDM Installed, 1PPS, 5 MPPS, or Comp. BNC Female BNC Male
J1 – J56 TEL Installed, TTL level clock, T1 or E1 BNC Female BNC Male
FL1 100 to 240 Vac, power to PS A (A17) IEC-320 type Power Cord
F1 3 amp slo-blo fuse for PS A (A17) Installed in FL1
FL2 100 to 240 Vac power to PSB ( A18) IEC-320 type Power Cord
F2 3 amp slo-blo fuse for PSB (A18) Installed in FL2
