Power switch
Direction switch (IN/OUT)
NEW! XRC Gen3 Winch

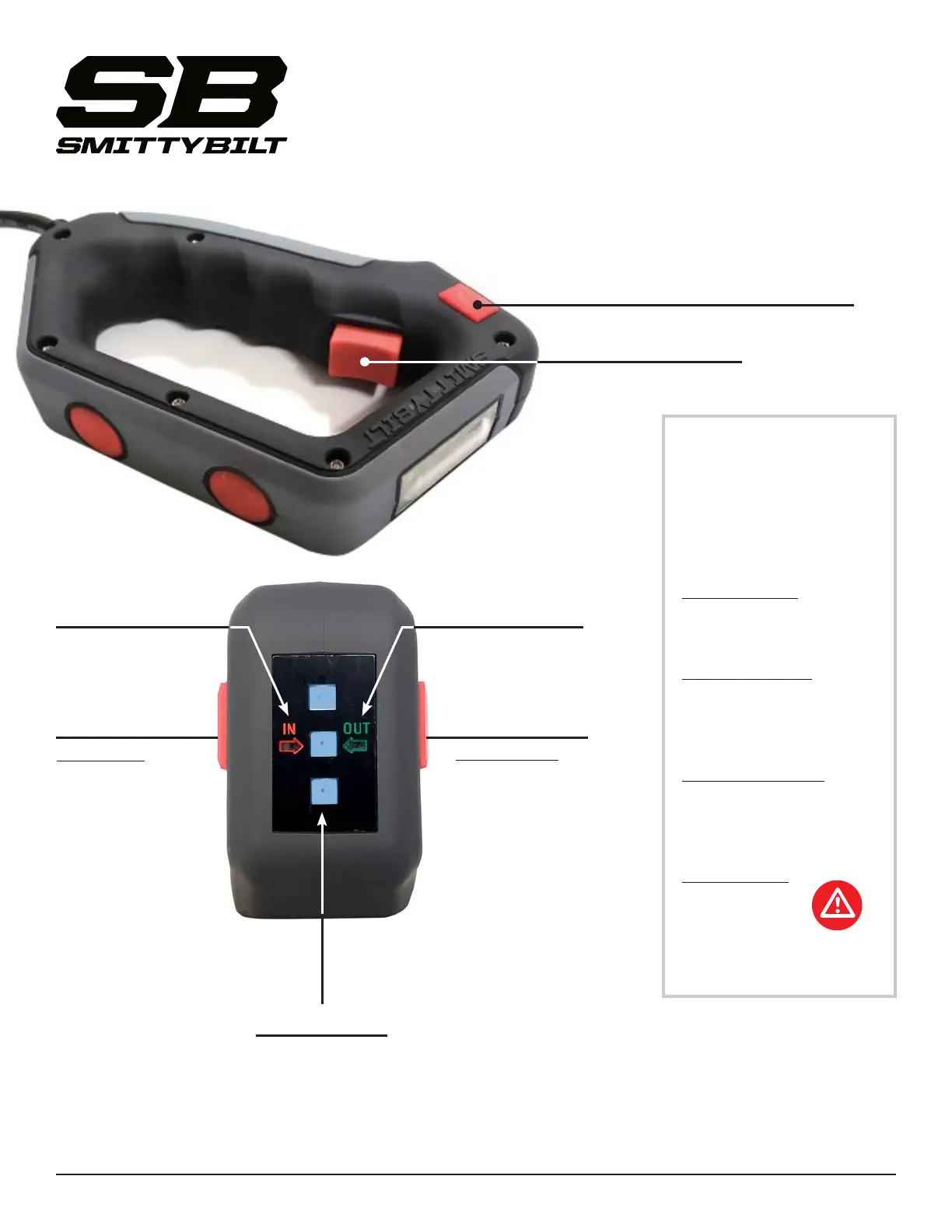

Remote Controller Features
Load Indicator
Power IN
switch
To power IN:
Press the power IN
switch. The switch
cover and IN indica-
tor will light up. Use
the power switch to
control the winch.
Note: If you press
the power IN switch
a second time, the
remote will go into
neutral and will not
power the winch.
Power IN
indicator light
Power OUT
switch
To power OUT:
Press the power OUT
switch. The switch
cover and IN indica-
tor will light up. Use
the power switch to
control the winch.
Note: If you press the
power OUT switch
a second time, the
remote will go into
neutral and will not
power the winch.
Power OUT
indicator light
What do the
colored lights
on the Load
Indicator mean?
COLOR: BLUE
READY
Winch is ready to start
COLOR: GREEN
LOADING
Winch is operating within
safe levels
COLOR: YELLOW
MAX LOAD
Winch is operating at
maximum load
COLOR: RED
OVERLOAD
STOP!!!
Time to use snatch
block or other assist
IMPORTANT: Load indicator lights will let you know approximately how much load is on your winch based on the
chart above. Maximum pulling power is only achieved when pulling from the rst layer of rope on the drum. Avoid
continuous winching at high load and always check motor temperature frequently. If motor is too hot to touch , allow
to cool before you continue your recovery. It is recommended to re-access your recovery and consider the use of a
snatch block when recovery exceeds full load and/or when red over load lights begin to light up.
