Smittybilt XRC 2 User Manual

9
Step 2 - Install the wiring
• Connect short red cable from remote control to the positive terminal (+) on the
motor.
• Connect short black cable from remote control to the negative terminal (-) on
the motor.
• Connect long red cable from the remote control to the positive terminal (+) of
the battery.
• Connect long black cable from the remote control to the negative terminal (-)
of the battery.

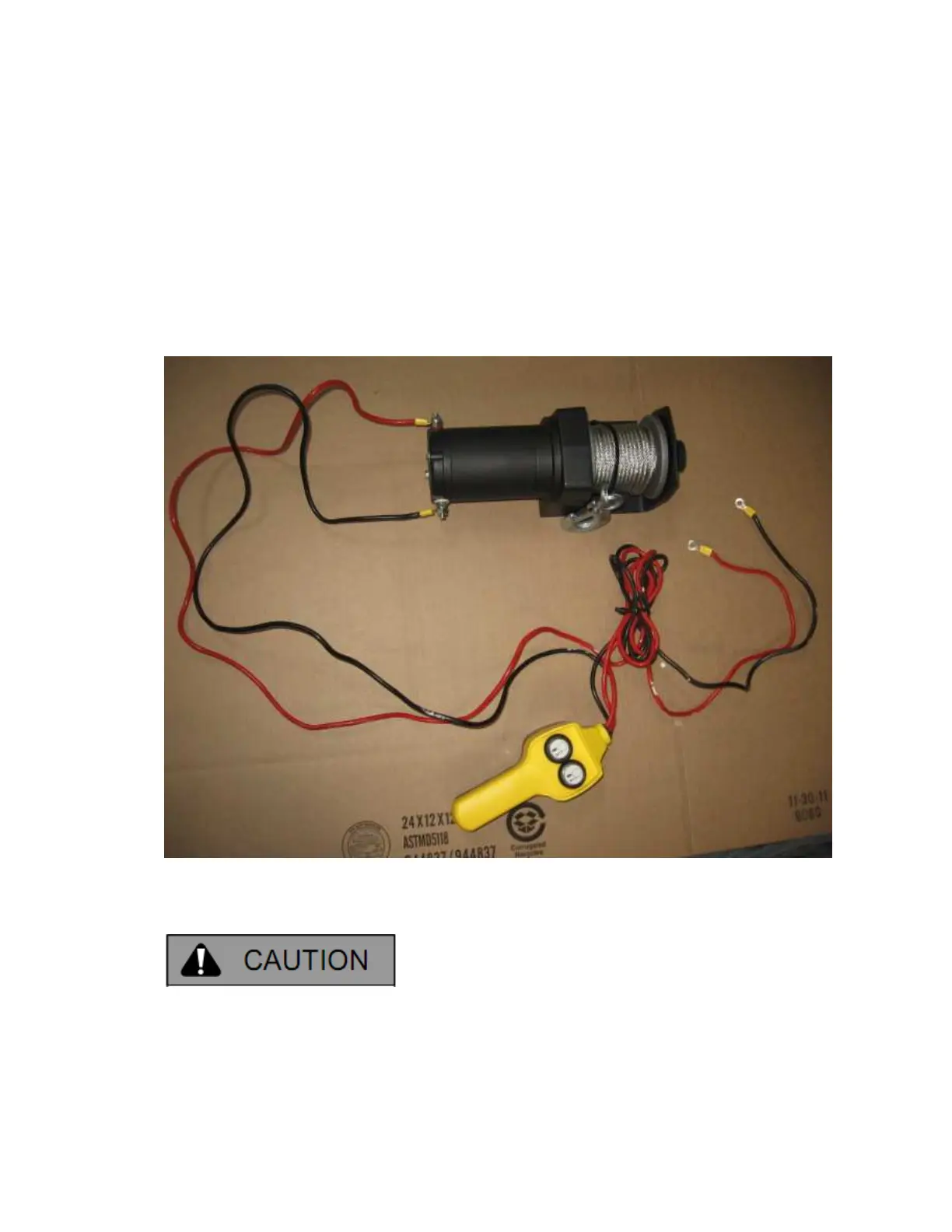

(Wiring Diagram)
 To avoid accidental operation DO NOT leave controller hooked/wired up
to winch when not in use.
