Smittybilt XRC 8 User Manual

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Page 12 of 17
XR
XRXR
XRC
C C
C 10
1010

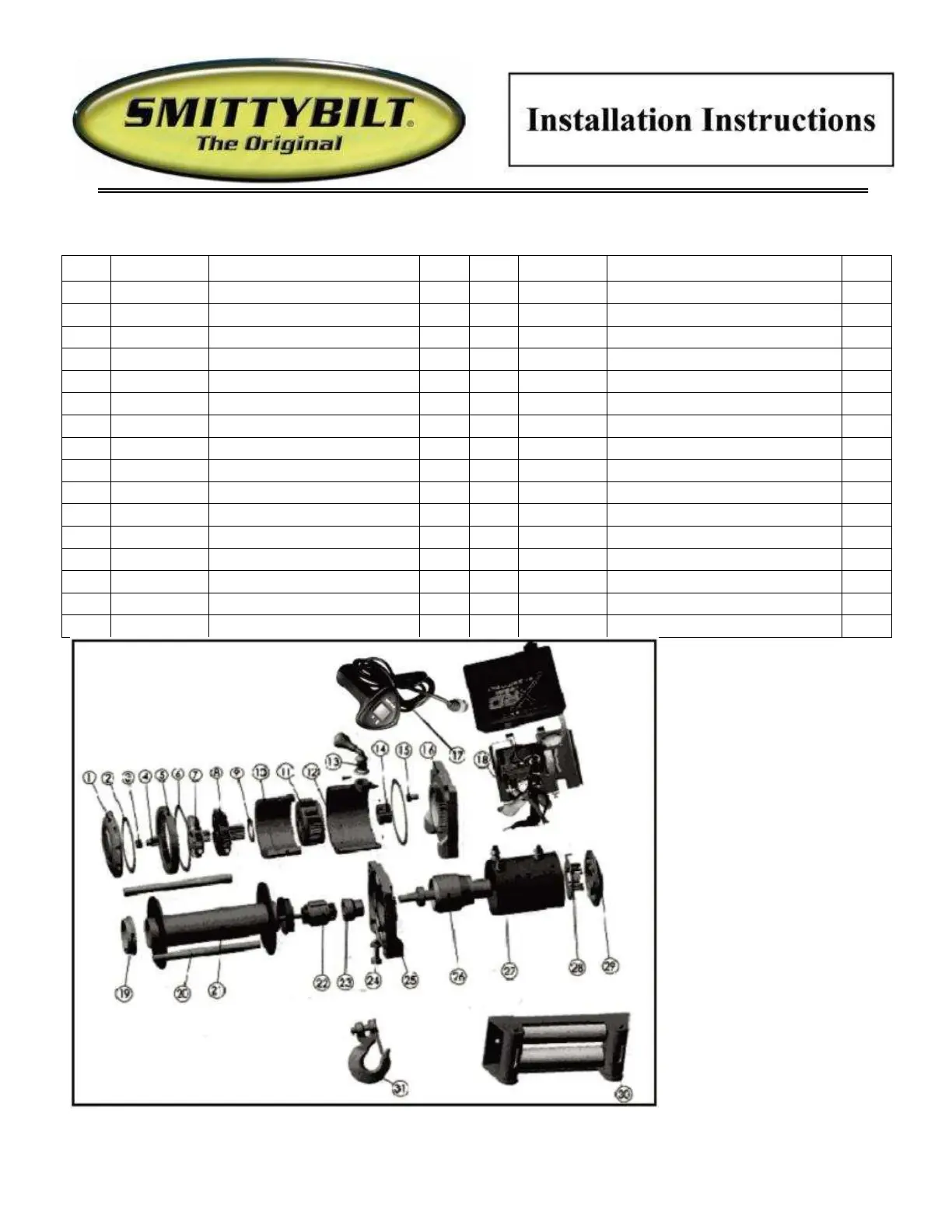

10 WINCH PARTS LIST
WINCH PARTS LIST WINCH PARTS LIST
WINCH PARTS LIST
No. Parts No. Description Qty No. Part No. Description Qty
1 97210-01 Gear Box End Cover 1 17 97281-24 Remote Control 1
2 97281-02 Gasket 1 18 97210-25 Control Box Assy 1
3 97210-03 Sun Gear-Input 1 19 97210-26 Nylon Bearing 2
4 97210-04 Inner Gear 1 20 97210-27 Tie Rod 2
5 97210-05 Gasket 1 21 97210-28 Drum 1
6 97210-06 Outer Spline 2 22 97210-29 Brake System 1
7 97210-07 Gear Carrier-Input 1 23 Coupling Joint 1
8 97210-08 Gear Carrier-Intermediate 1 24 97210-30 Winch Mount Bolt 4
9 97210-09 Washer-1.2mm thickness 2 25 97210-32 Motor Base 1
10 97210-10 Clutch Gear 1 26 97210-36 Rotor 1
11 97210-11 Gear Carrier-Output 1 27 97210-39 Stator 1
12 97210-12 Gear Box Tube 1 28 97210-41 Carbon Frame & Brush Assy 1
13 97210-13 Clutch Handle Assy 1 29 97210-45 Motor End Cover 1
14 97210-14 Outer Spline 1 30 97210-46 Roller Fairlead 4
15 97210-15 Link Screw 4 31 97210-47 Clevis Hook 1
16 97210-16 Gear Box Base 1 32 97210-49 Wire Rope 1
