Installation Manual
Installation Instructions
XRC8 Gear Lever
Note: Please read instructions entirely before installing this part.

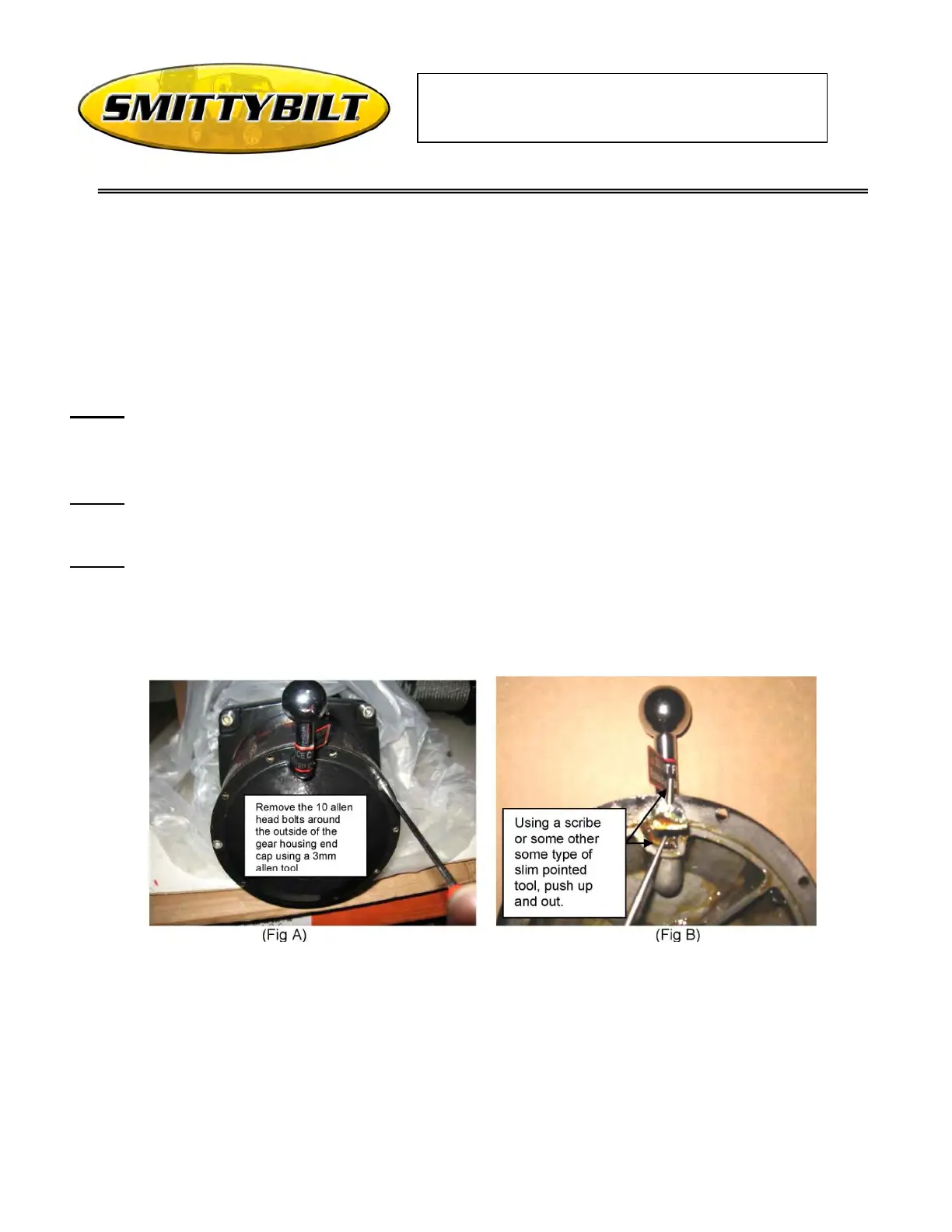

Step1:
Remove the 10 allen head bolts around the outside of the gear housing end cap
using a 3mm allen tool. (Fig A) Carefully remove end cap from housing. Use care in
order not to damage the gasket.
Step2:
Using a scribe or some other type of slim pointed tool, push up and out the small
holding rod/pin. (Fig B)
Step3:
Slowly pull out the clutch lever from the end cap. Do this slowly and on a flat clean
surface. Use caution when doing so; there is a spring and ball bearing that will be
revealed. (Fig C)
