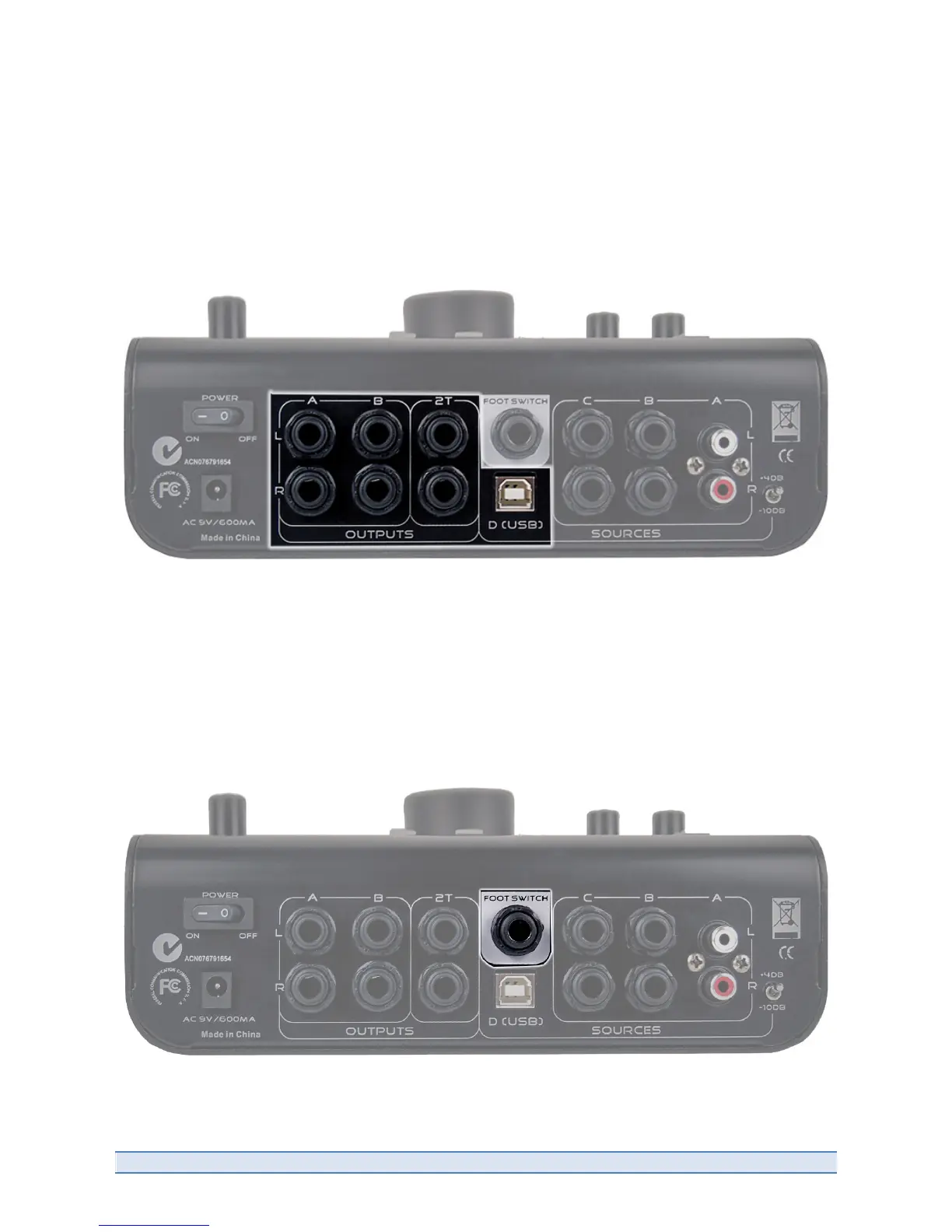

4.3 Outputs
Outputs is the description of the 4 output connectors. They are line level signal for plugging in your
active studio monitors or to the inputs of a power amplifier that is driving your passive monitors.
•
Outputs A and B are stereo 6.5mm or ¼ inch jacks
•
Output 2T (2 Track) is the 6.5mm stereo output that includes the talkback signal
• Source D is the USB output with Legacy driver built in. USB does not need mains power to
operate. USB output always records what is selected on the MAIN SOURCE input.!
!
!
!
!
4.4 Footswitch (TALK BACK CONTROL)
Plug a 6.5mm or ¼ inch jack footswitch into this socket. Pressing the footswitch initiates hands-
free activation of the talkback feature.
!
!
!
