Snap-On CT761A - Parts Listing

80
ZCT761ACE Rev. D (03/20)
4C
4B
4B7 4B2 4B3 4B4
4B2 4B1 4B5 4B6
4A1 4A2 4A3
10
6 1
12 7 5 8
3 2
4A
9 13 11

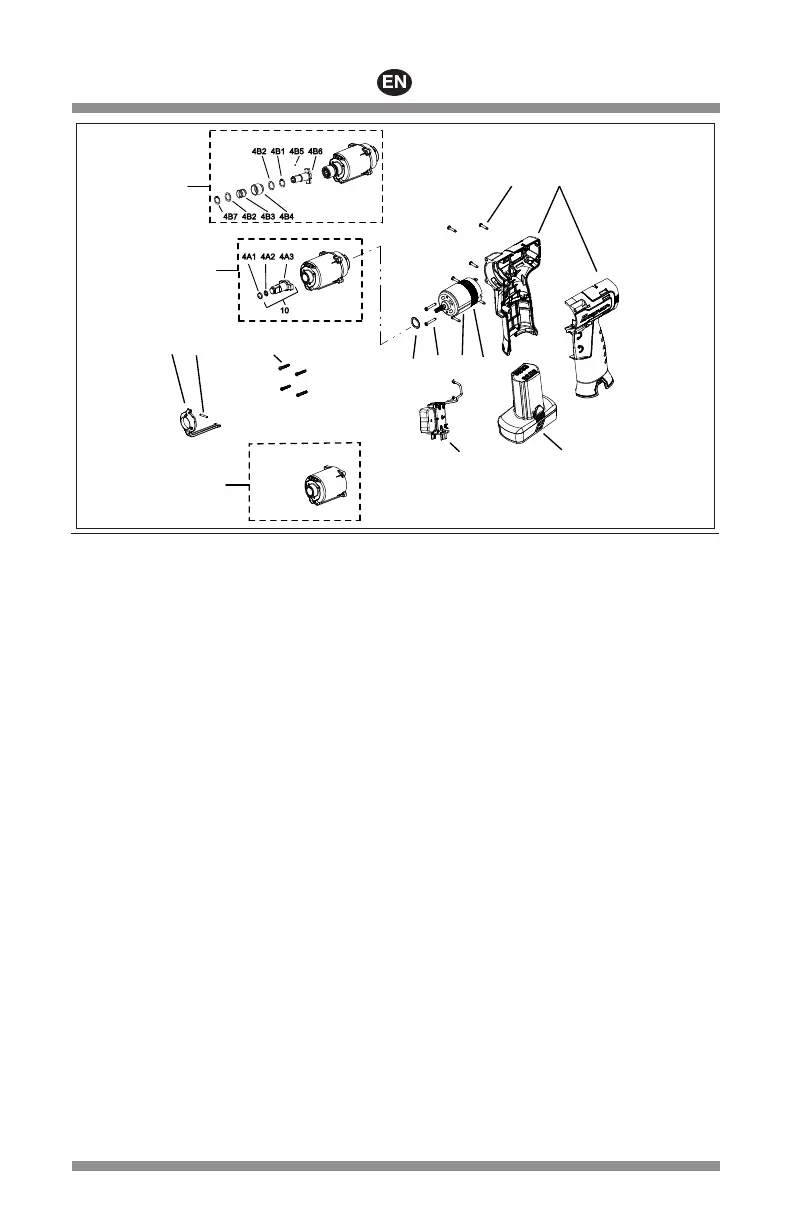

Figure 7: Exploded View
Parts Listing
Ref Description
Qty
Part Number
1 housing set (CT761) 1
CT761A100R
housing set (CT761QC) 1
CT761AQC100R
2 battery pack 1
CTB8172BK
3 switch assembly 1
CT761-317
CT761A
4A drive train assembly 1
CT761-150C
4A1 retaining ring 1
ME7A227
4A2 o-ring 1
ME7B115
4A3 anvil 1
CT761-152A
CT761AQC
4B drive train assembly 1
CT761QC150C
4B1 retaining ring 1
ME7A217
4B2 collar washer 2
ME5A181
4B3 spring 1
ME1A287
4B4 chuck sleeve 1
CTS561-153
4B5 3mm ball 1
ME9A36
4B6 qc anvil 1
CT761QC152A
4B7 retaining ring 1
ME7A260
4C nose, with bushing repair (CT761A) 1
CT761-151AR
5 motor assembly 1
CT761-160
6 housing screw 7
ME3L32R
7 motor screw 2
ME3J61
8 screen 1
CT661-113
9 led assembly 1
CT761-120A
10 anvil assembly (CT761A) 1
CT761-152AR
11 screw 4
ME3L33
12 o-ring 1
ME7B51
13 latch pin 1
ME2C88
* battery housing repair kit 1
CTB8172BK1
(includes top and bottom housing, 2 screws)
* battery housing repair kit 1
CTB7172-2
(includes 2 latch buttons, 2 pins, 2 springs)
* not shown
