ZCT838CE Rev. A (05/21)
87
4B
5
4A1
4A2
4A3
4A7
9
8
4B5 4B6 4B7
4B1 4B2 4B3 4B4
4C
4C
3 6 1
11
10
2

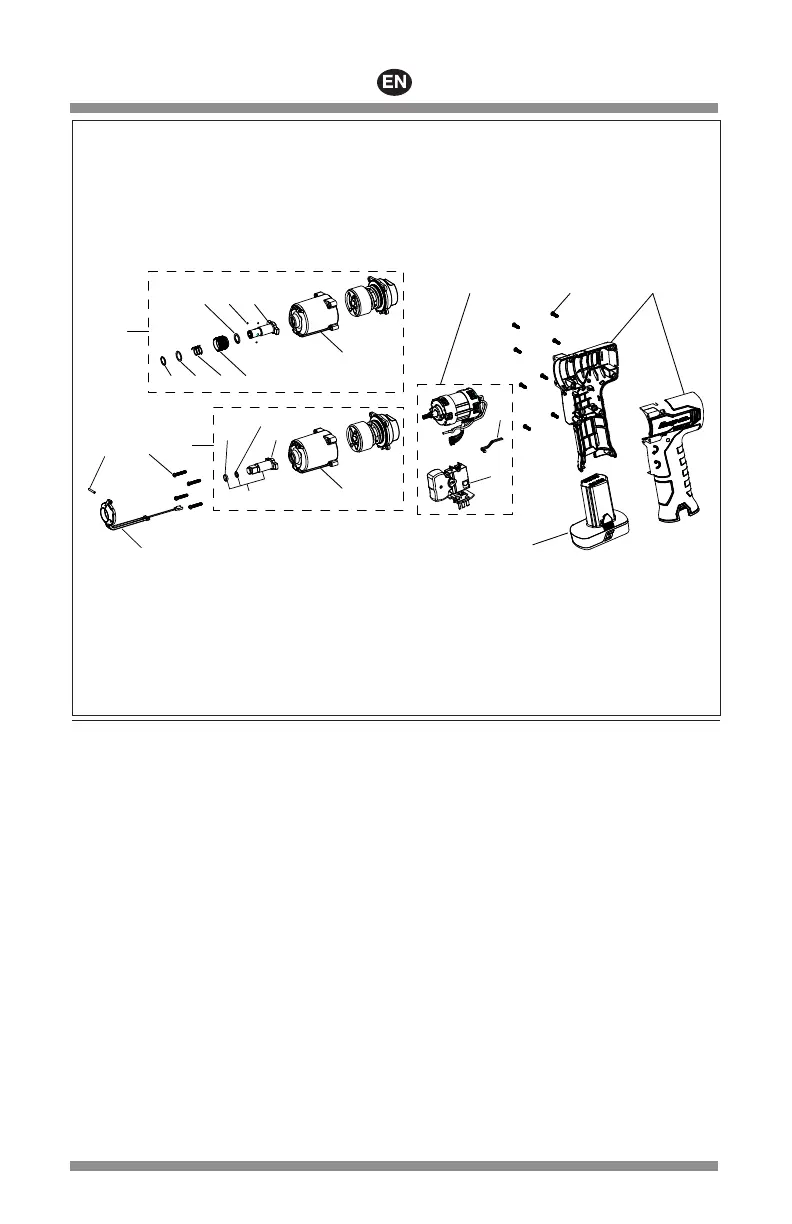

Figure 9: Exploded View CT861
Parts Listing
Ref Description
Qty
Part Number
1 housing set (CT861) 1
CT861-100R
housing set (CTQ861) 1
CTQ861-100R
2 battery pack 1
CTB8174
3 motor assembly (CT861) 1
CT861-160
motor assembly (CTQ861) 1
CTQ861-160
CT838
4A drive train assembly 1
CT838-150
4A1retaining ring 1
ME7A227
4A2o-ring 1
ME7B115
4A3anvil 1
CT838-152
CTQ838
4B drive train assembly 1
CTQ838-150
4B1retaining ring 1
ME7A260
4B2collar washer 1
CT761QC155
4B3spring 1
CT761QC156
4B4chuck sleeve 1
CTQ838-153
4B5retaining ring 1
ME7A217
4B63/32” ball 1
ME9A5
4B7qc anvil 1
CTQ838-152
4C nose, with bushing repair 1
CT838-151R
5 anvil assembly 1
CT838-152R
Ref Description
Qty
Part Number
6 housing screw 8
ME3L38
7 screw 4
ME3L33-2
8 led light assembly 1
CT838-120
9 latch pin 1
ME2C88
10 switch assembly 1
CT861-117
11 fuel gauge LED 1
CT838-115
* battery housing repair kit 1
CTB8172BK1
(includes top and bottom
housing, 2 screws)
* battery housing repair kit 1
CTB7172-2
(includes 2 latch buttons,
2 pins, 2 springs)
* not shown
