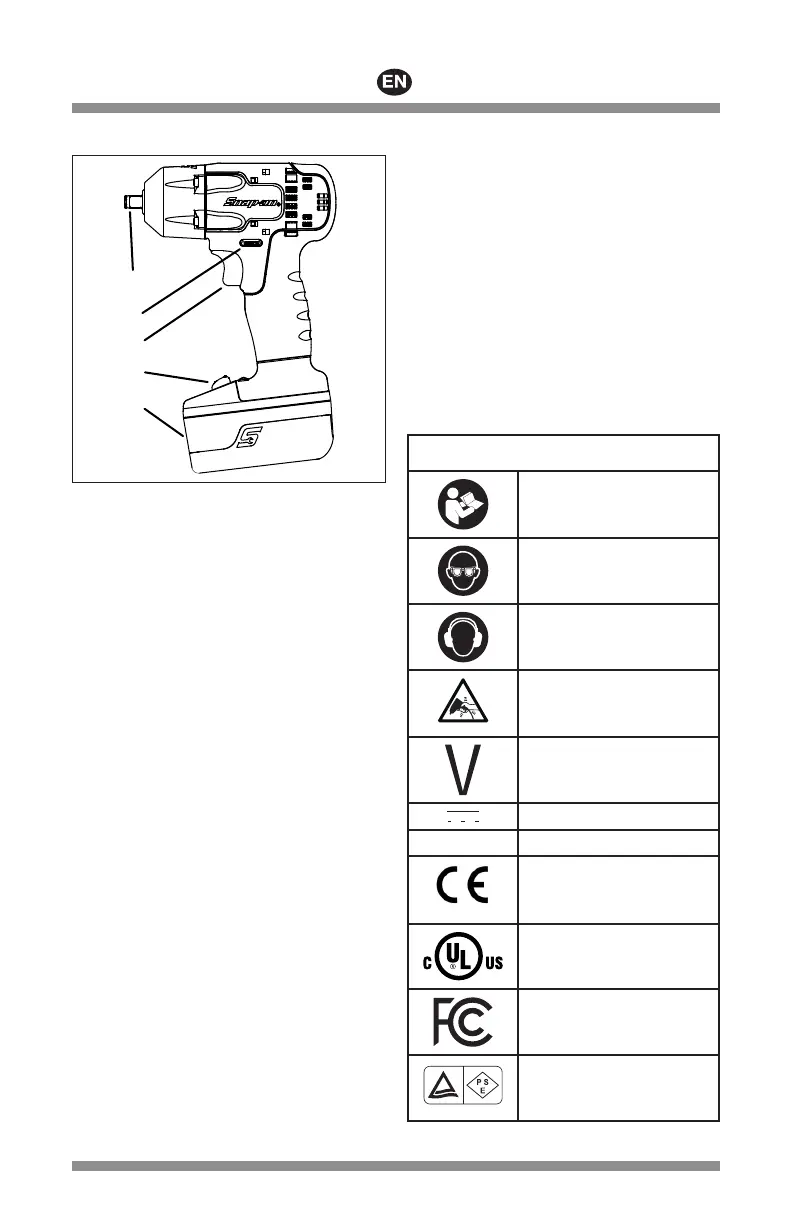

Functional Description
A
B
C
D
E
Figure 1: Cordless Impact Wrench
A – Friction Ring Anvil
B – Forward/Reverse Bar
C – Trigger
D – Release Button
E – Battery Pack
Specifications
Impact Wrench Specications
Square Drive Size
CT8810B / CT8810BP ................... 3/8” (10 mm)
CT8810BQC .............................. 1/4” internal hex
CT8815B / CT8815BP ................... 1/2” (13 mm)
Tightening Torque
CT8810B / CT8810BP .......230 ft. lbs. (312 N•m)
CT8810BQC ...................... 115 ft. lbs. (156 N•m)
CT8815B / CT8815BP .......230 ft. lbs. (312 N•m)
Bolt Breakaway Torque
CT8810B ...........................325 lbs. ft. (441 N•m)
Free Speed ............................................ 2400 rpm
Impacts per Minute ................................3480 ipm
Motor Voltage ........................................18.0 VDC
Weight with Battery Pack (BK/CTB8187) ...............
..................................................4.5 lbs. (2.05 kg)
Noise* (Tested in accordance with ISO 15744)
Sound Pressure Level (A) .......................97.3 dB
Uncertainty, K ...........................................3.0 dB
Sound Power Level (A) .........................108.9 dB
Uncertainty, K ...........................................3.0 dB
Vibration* (Tested in accordance with ISO 20643/
ISO 28927)
Vibration Level .......................................5.3 m/s
2
Uncertainty, K ........................................1.1 m/s
2
*These declared values were obtained by
laboratory type testing with the stated standards
and are not adequate for use in risk assessments.
Values measured in individual work places may be
higher. Values and risk of harm experienced by an
individual user are unique and depend upon the
environment and manner in which the user works,
the work piece and the workstation design, as well
as upon the exposure time and the physical
condition of the user.
Snap-on disclaims liability for the consequences of
using the declared values, instead of values
reflecting the actual exposure determined in an
individual risk assessment in a work place situation
over which we have no control.
Symbology
SYMBOLOGY
REFER TO INSTRUCTION
MANUAL/BOOKLET
WEAR EYE PROTECTION
WEAR EAR PROTECTION
VIBRATION HAZARD
VOLTS
DIRECT CURRENT
n
0
xxx/min NO LOAD SPEED
CE MARK
CANADIAN - UNITED STATES
UNDERWRITERS LABORATORY
FCC
FEDERAL COMMUNICATIONS
COMMISSION
JAPAN ELECTRICAL SAFETY
TÜV RHEINLAND

Snap-On CT8810B Specifications

General

Brand	Snap-On
Model	CT8810B
Category	Power Tool
Language	English
