34
ZCTR861NA Rev. A (01/21)
Parts Listing
Ref Description
Qty
Part Number
1 crankshaft 1
CTR861-5A
2 plastic housing repair set 1
CTR861-100R
3 LED ring 1
CTR861-119
4 wire harness 1
CTR861-121
5 gear carrier assembly 1
CTR861-160
6 bldc motor pcb assembly 1
CTR861-257
6a motor assembly 1
CTR861-50R
6b controller assembly 1
CTR861-117-5
6c 60a fuse 1
CTR861-117-50
6d 2a fuse 1
CTR861-117-51
6e trigger assembly 1
CTR861-117
6f terminal block assembly 1
CTR861-117-11
6g fuel gauge LED 1
CTR861-117-52
7 internal gear 1
CTR861-3
8 ratchet housing assembly 1
CTR861-400R
9 planetary gear 3
CTR861-6
10 clear lens 1
CTR861-61
11 drive body repair 1
FAR7000-300R
12 wear washer 1
FAR25-12A
13 plunger 2
FAR25-34A
14 groove washer 1
FAR25-41
15 drive body 1
FAR7000-301
16 pawl 2
FAR7000-302
17 selector knob repair 1
FAR7000-310AR
Ref Description
Qty
Part Number
18 bar element 1
FAR7000-7
19 ratchet head 1
FAR7000-8
20 compression spring 2
ME1A168C
21 disc spring 2
ME1G12
22 pawl pin 2
ME2A176
23 grooved pin 1
ME2C80
24 housing screw 8
ME3L36
25 pin 1
ME2A177
26 battery 1
CTB8174
* battery housing repair kit
(includes top and bottom
housing, 2 screws)
1
CTB8172BK1
* battery housing repair kit
(includes 2 latch buttons,
2 pins, 2 springs)
1
CTB7172-2
* boot 1
FAR7000
* not shown

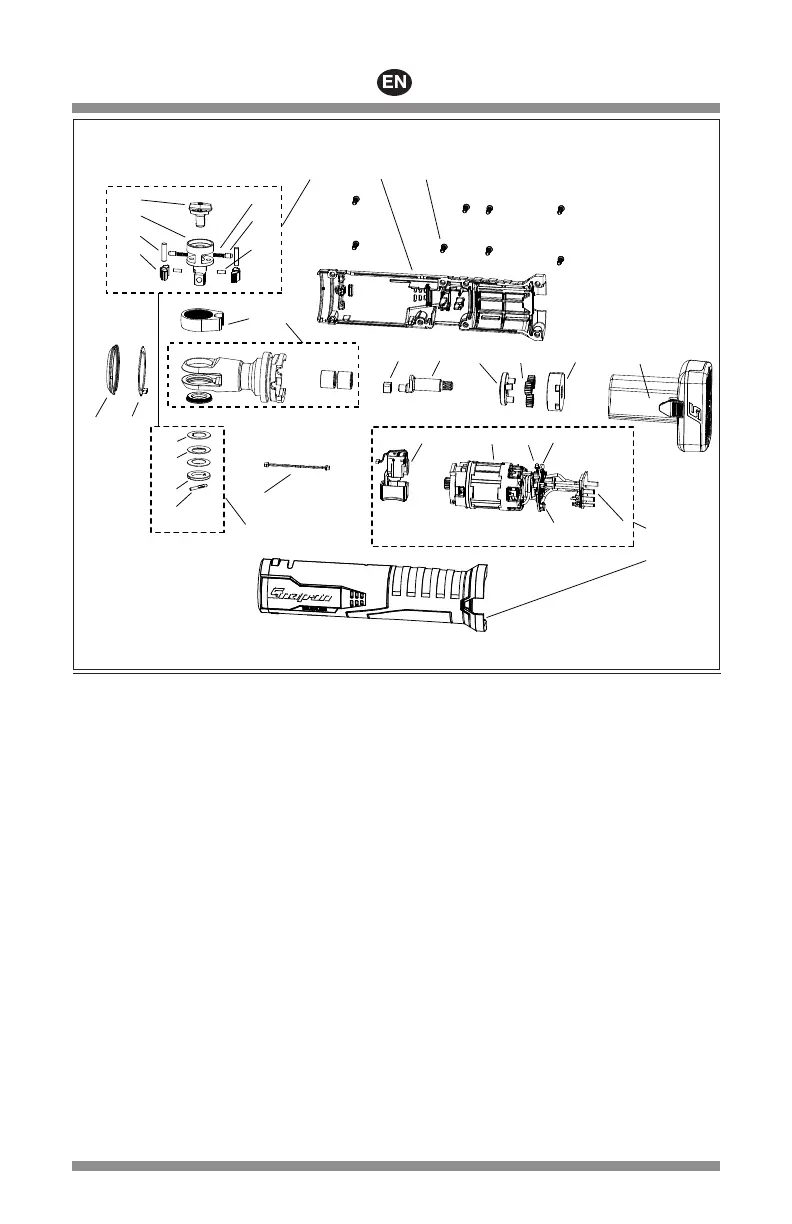

Figure 5: Exploded View
17
15
22
16
20
13
25
12
21
14
23
10 3
19 8
11 2 24
18 1 5 9 7 26
6e 6a 6g 6b
6c, 6d 6f
6
2
4
11
