8
ZCTR861NA Rev. A (01/21)

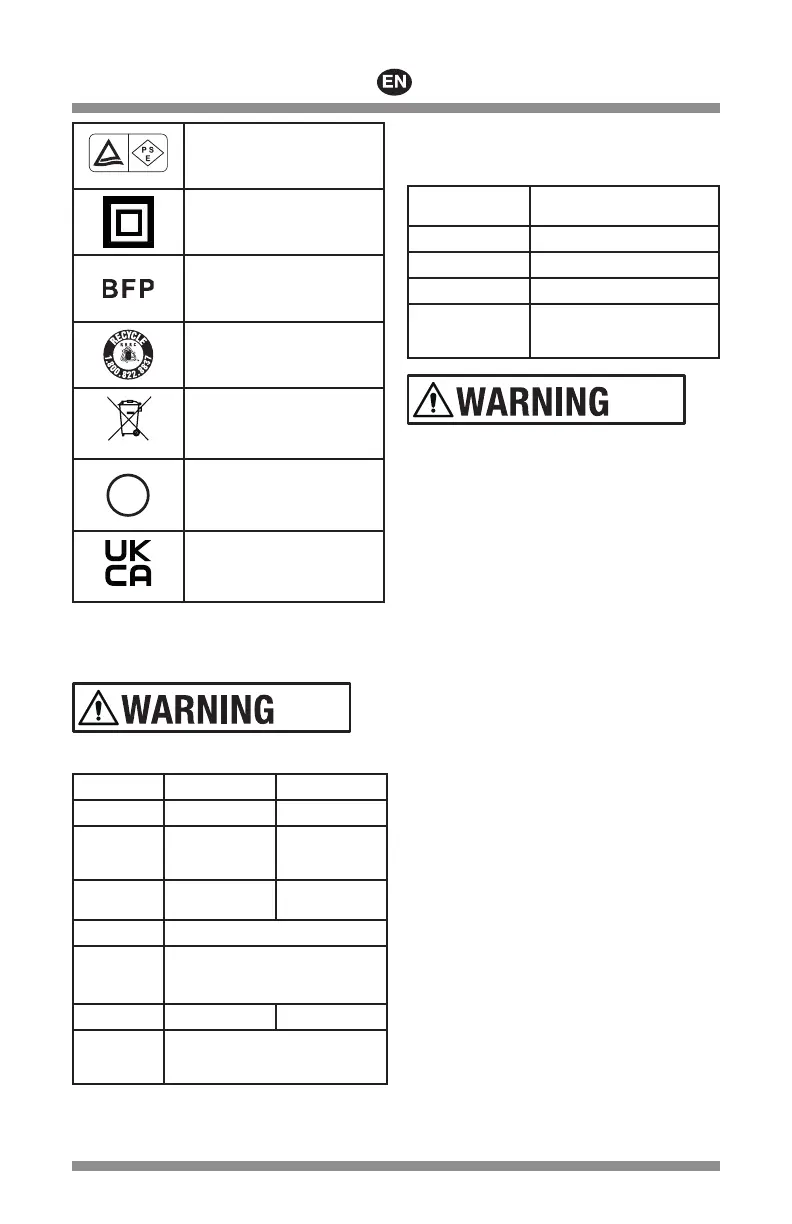

JAPAN ELECTRICAL SAFETY
TÜV RHEINLAND
DOUBLE INSULATION
BACK FEED PROTECTION
PROPERLY RECYCLE BATTERY
DO NOT THROW IN GARBAGE
BC
CALIFORNIA - TITLE 20
COMPLIANT
UKCA (UK CONFORMITY
ASSESSED) MARKING
Battery Pack
Specifications
DO NOT USE CTB6172
CTB8172BK CTB8174
Type Lithium-Ion Lithium-Ion
Voltage 14.4 VDC
(3.6 V x 4 cell
pairs)
14.4 VDC
(3.6 V x 4 cell
pairs)
Weight ~0.51 lbs
(0.23 kg)
~0.51 lbs
(0.23 kg)
Charge Time refer to section Battery Charging
Life
1000 cycles
(1 cycle=1 charge and 1 discharge)
Capacity 2.0 Ah 2.5 Ah
Discharge
Temperature
Range
-4°F(-20°C) to 140°F(60°C)
Battery Charger
Specifications
CTC772A/CTCA772A/
CTCEU772A/CTCJ772A
Input 100-240V, 50/60 Hz
Output 3.0 A
Weight ~1.15 lbs (0.52 kg)
Charging
Temperature
Range
32°F(0°C) to 113°F(45°C)
DO NOT BLOCK VENT OPENINGS!
Application
The Snap-on CTR861 Cordless Ratchet is a rugged,
reversible ratchet that is ideal for many confined
automotive and industrial applications. It is designed and
built to make fast work of fastener turning jobs that do
not require more than 48 ft. lb. (65 N•m) torque.
General Instructions for Use
1. Insert a fully charged CTB series battery into the base
of the tool, as shown in Figure 3.
2. Attach the desired socket on to the drive body.
3. Check that the reversing selector knob is in the correct
position for either tightening or loosening.
4. If a fastener has been tightened beyond the powered
limits of tool, torque can be applied manually to break
the fastener free prior to pulling the trigger.
5. Depress the variable speed trigger to loosen or tighten
the fastener at the desired speed.
6. Remove the battery and socket when done using the
tool.
Use only CTC series chargers with 14.4V receptacle.
Installing Sockets
The CTR861 uses 3/8” square drive sockets. Be sure that
only power or impact sockets are used.
Variable Speed Trigger
This tool is equipped with a variable speed trigger which
allows precise output speed control.
