Snap-On FAR2500 - Parts List

29
Parts List

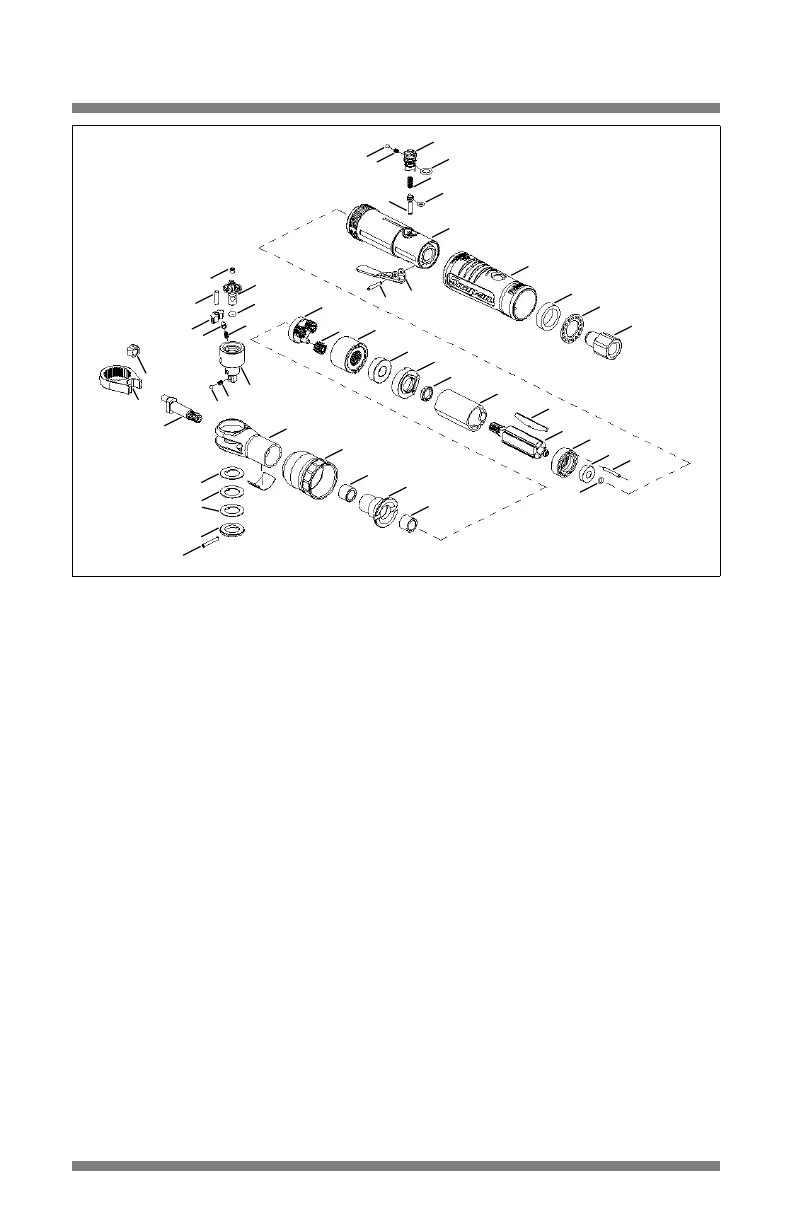

Figure 2: FAR2500/FAR2505 Air Ratchet, Exploded View

















































Ref Description Qty Part Number
1jacket
— FAR2500 1 FAR2500-100R
— FAR2505 1 FAR2505-100R
2 ball 1 ME9A14
3 spring - compression 1 ME1A189
4 regulator 1 MR2000-6
5o-ring 1 ME7B5
6 spring 1 ME1A227
7 valve stem 1 MR2000-13
8o-ring 1 ME7B97
9 muffler 1 PT100-13
10 exhaust washer 1 PT100-2
11 inlet bushing 1 ME6F7
12 paddle 1 FAR25-11A
13 pin, spiral 1 ME2C82
14 housing 1 PT100-1
15 regulator pin 1 ME2A140
16 ball bearing 1 ME11A35
17 rear end plate 1 FAR2500-5
18 cylinder 1 PT100-7
19 splined rotor 1 FAR2500-6
20 vane 5 FAR2500-30
— vane service set of 5 1 FAR2500-305V
21 spacer - front end plate 1 PT100-10
22 front end plate 1 FAR2500-4
23 o-ring 1 ME7B74
24 ball bearing 1 ME11A12
25 internal gear 1 PTR200-3
26 planet gear 3 FAR25-6
27 gear carrier assembly 1 FAR25-100
28 lock nut 1 FAR2500-35
29 clamp nut 1 FAR2500-11
30 caged needle bearing 2 ME11B15
31 plunger 1 FAR25-34A
32 plunger spring 1 ME1A228
33 pawl pin 1 ME2A129
34 pawl 1 FAR25-32A
35 ball
FAR2500
FAR2505
1
ESD852
ESD854
36 spring
FAR2500
FAR2505
1
ME1A133
ESD16
37 grease zerk 1 ESD1333
38 selector knob 1 FAR25-33B
39 o-ring 1 ME7B88
40 drivebody (includes items 35 & 36)
— FAR2500 1 FAR2500-31R
— FAR2505 1 FAR2505-31R
41 ratchet housing 1 FAR2500-2
42 ratchet head 1 FAR25-8
43 bar element 1 FAR25-7
44 crank shaft 1 PTR200-5
45 wear washer 1 FAR25-12A
46 disc spring 2 ME1G12
47 groove washer 1 FAR25-41
48 spring pin 1 ME2C80
49 boot 1 YA905
