Snap-On FJ300 - Parts Drawing and Parts List

FJ300 11 Rev. 07/23/18

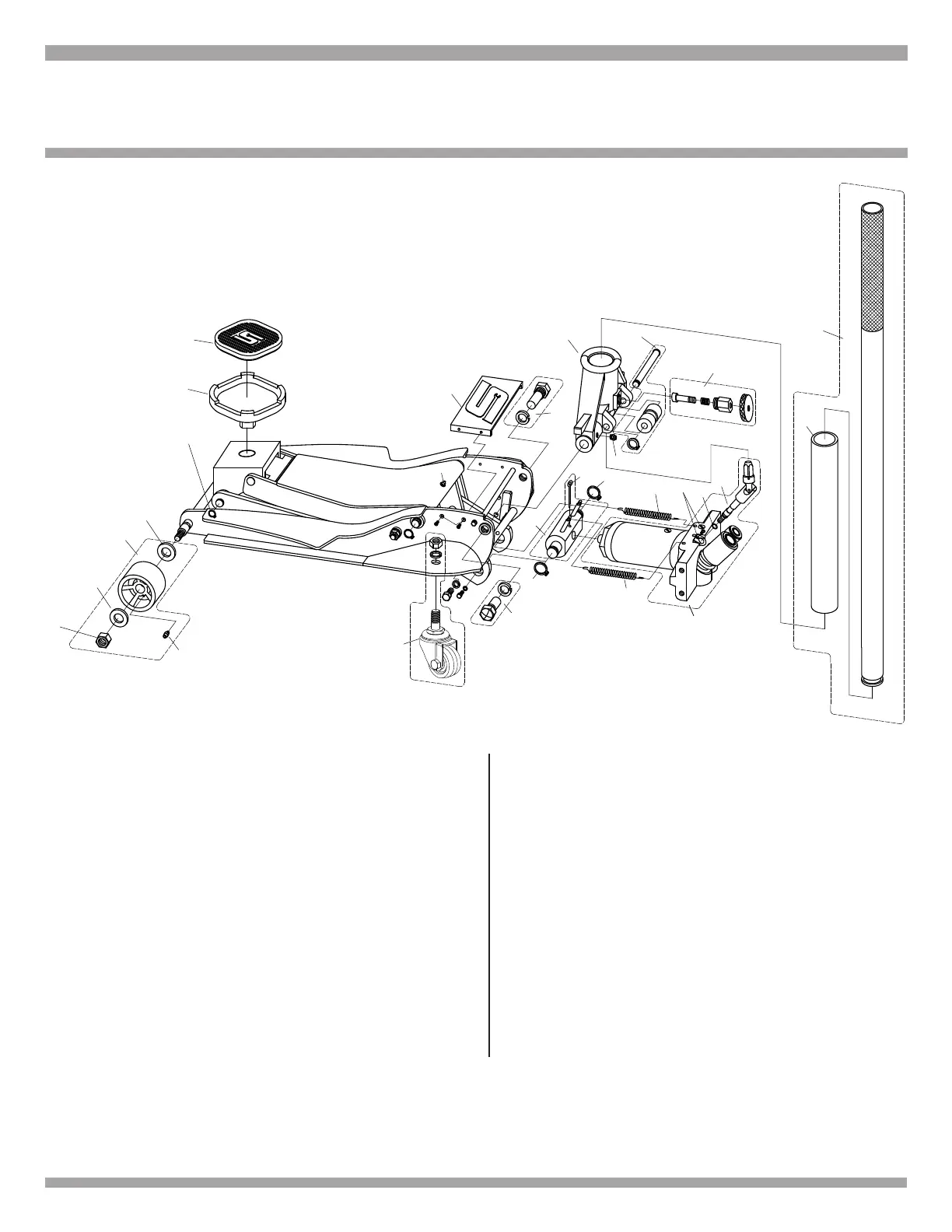

PARTS DRAWING AND PARTS LIST
Key Stock Number Description
01 FJ200-1 Rear Caster Assy, Nut and Washer
02 FJ200-2 Handle w/Foam Pad
03 FJ200-3 Universal Joint w/Seal
04 FJ300-4 Front Wheel, Nut & Washers
05 FJ300-5 Power Unit Assembly - Complete
06 FJ200-6 Saddle
07 FJ300-7 Yoke Pump Roller Assembly
08 FJ200-8 Nut & Washers for Front Wheel
09 FJ300-9 Retaining Rings and Cotter Pin Set
10 FJ300-10 Return Springs (2)
11 FJ300-11 Handle Yoke Casting
12 FJ200-12 Handle Retaining Pin
Key Stock Number Description
13 FJ200-13 Foam Handle Pad
14 FJ200-14 Grease Fitting (5ea)
15 FJ200-15 Saddle Pad
16 FJ200-16 Yoke Pivot Bolts & Washers (2)
17 FJ200-17 Universal Joint Retainer & Screw
18 FJ300-18 Floor Jack and Handle Packaging (2)
19 FJ200-19 HPU Shipping Strap and Screw
(not shown)
20 FJ300-20 Truinon Block and Cotter Pin
21 FJ200-21 Cover plate screws - set of four
22 FJ200-22 Cover plate
