O-RINGS
The SVT270B has been assembled with O-rings made with Nitrile, Buna-N, a materi-
al compatible with most fluids found in an automobile, but not brake fluid. Exposure
to brake fluid will cause these O-rings to swell. O-rings made of Ethylene Propylene
(EPDM) will not swell in brake fluid, but will swell if exposed to gasoline. If the piston
O-ring (#311) swells, the pump handle will not move easily and eventually the pump
will not work. Repair kit SVT270BRK contains O-rings made of Buna-N.
1
2
8
9
10
6
7
5

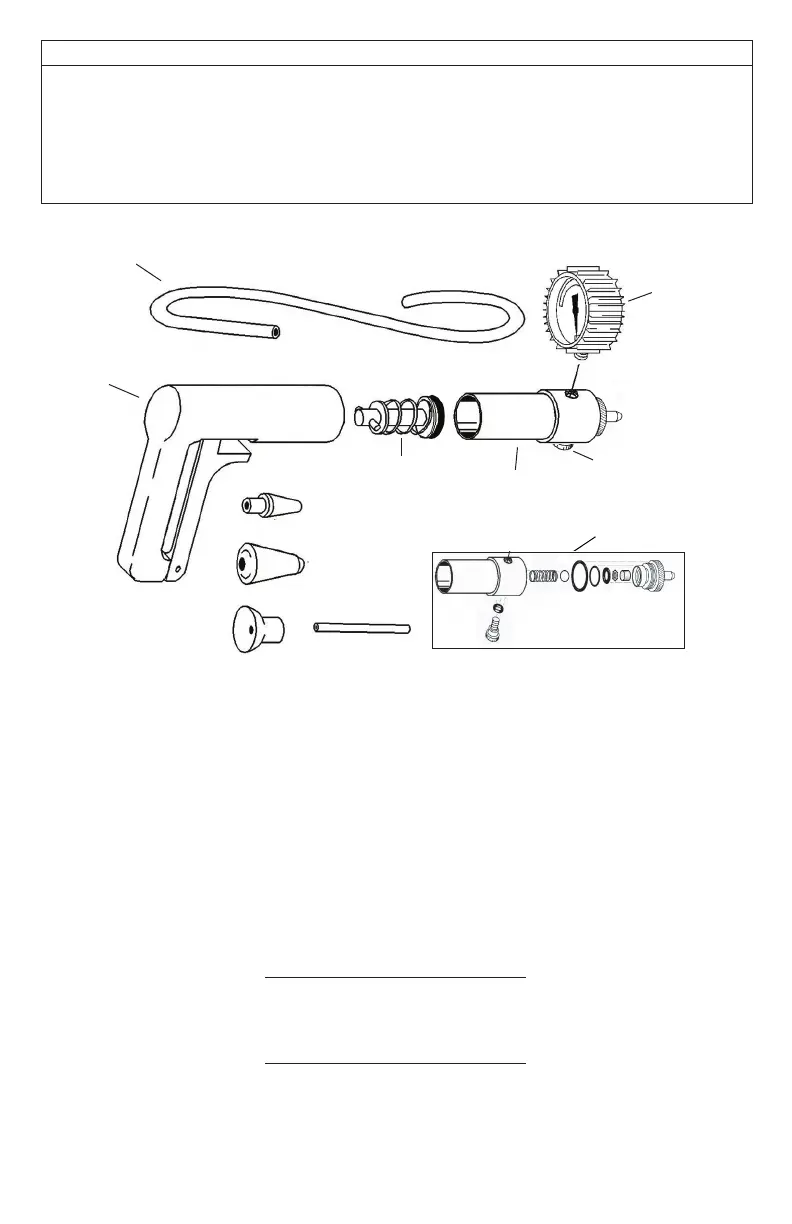

Parts List
3
4
5
1 SVT261-14 Rubber tubing
2 SVT270019A Body and Trigger Assembly
3 SVT270020 Piston Assembly w/O-ring (O-ring #311)
4 SVT270021A Pump Head Assembly with Vacuum Release Valve
5 SVT270-018 Vacuum Release Valve w/O-ring Only (O-ring #010)
6 SVT270-10 Vacuum Gauge with Boot
7 SVT261-15 Metal Adapter Cone
8 SVT261-16 Rubber Adapter Cone
9 SVT270-016 Rubber Cup
10 SVT270-015 Rubber Mini Tube
11 SVT270BRK Pump Head Assembly Repair Kit (Contains the
following left to right): O-ring #010, Spring, Stainless
Steel Ball,O-rings: #018, #013, #108, Retainer Clip,
and Felt Plug
SVT270BRK-EPDM Pump Head Assembly Repair Kit (same as above)
but with EPDM O-rings
SVT270P-1 Plastic Carrying Case (not shown)
