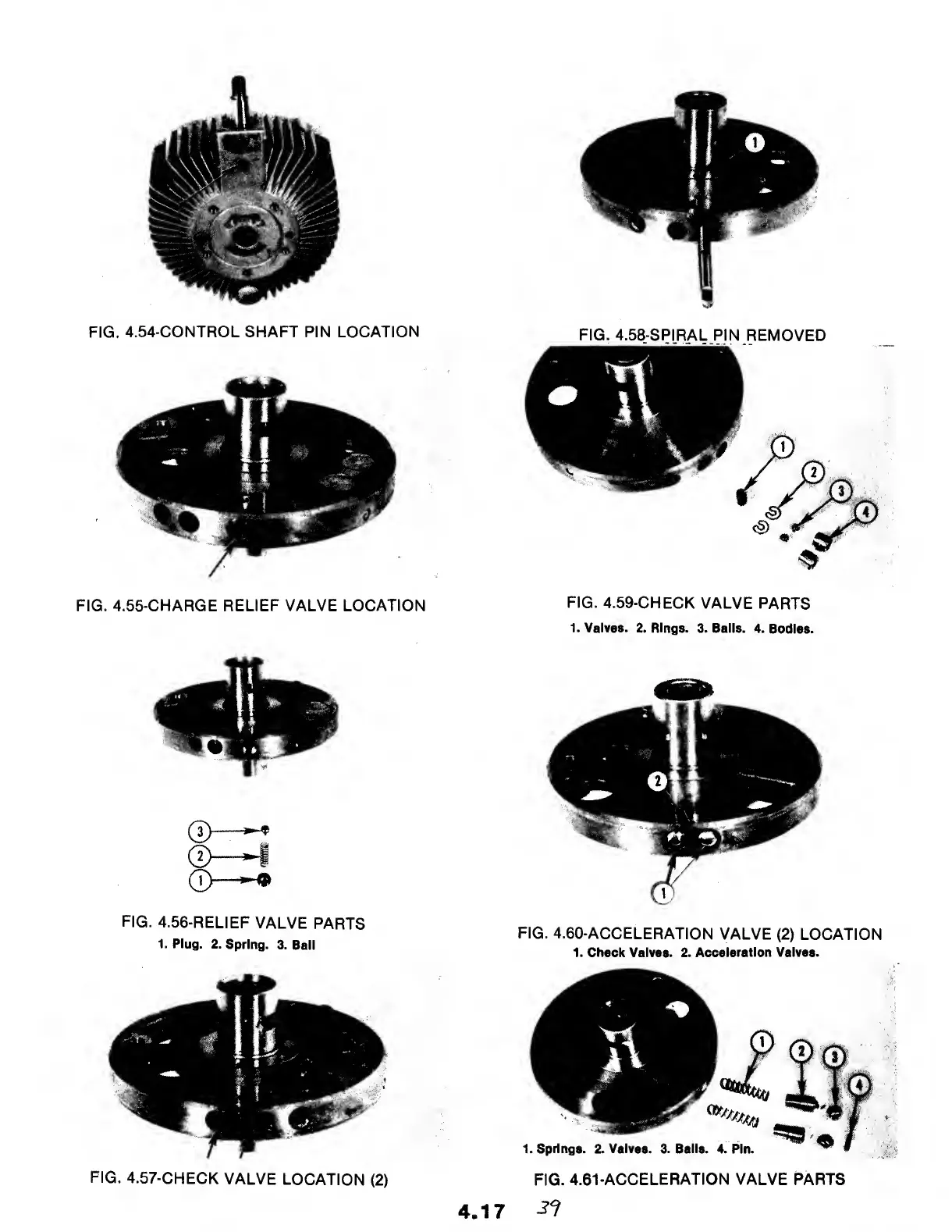

Snapper 1600 Series - Mower Adjustments and Belts

FIG. 4.54-CONTROL SHAFT PIN LOCATION
FIG. 4.58-SPIRAL PIN REMOVED
FIG. 4.59-CHECK VALVE PARTS
FIG. 4.55-CHARGE RELIEF VALVE LOCATION
1. Valves. 2. Rings. 3. Balls. 4. Bodies
©—*
FIG. 4.56-RELIEF VALVE PARTS
1. Plug. 2. Spring. 3. Ball
FIG. 4.60-ACCELERATION VALVE (2) LOCATION
1. Check Valves. 2. Acceleration Valves.
1. Springs. 2. Valves. 3. Balls. 4. Pin
FIG. 4.57-CHECK VALVE LOCATION (2)
FIG. 4.61-ACCELERATION VALVE PARTS
