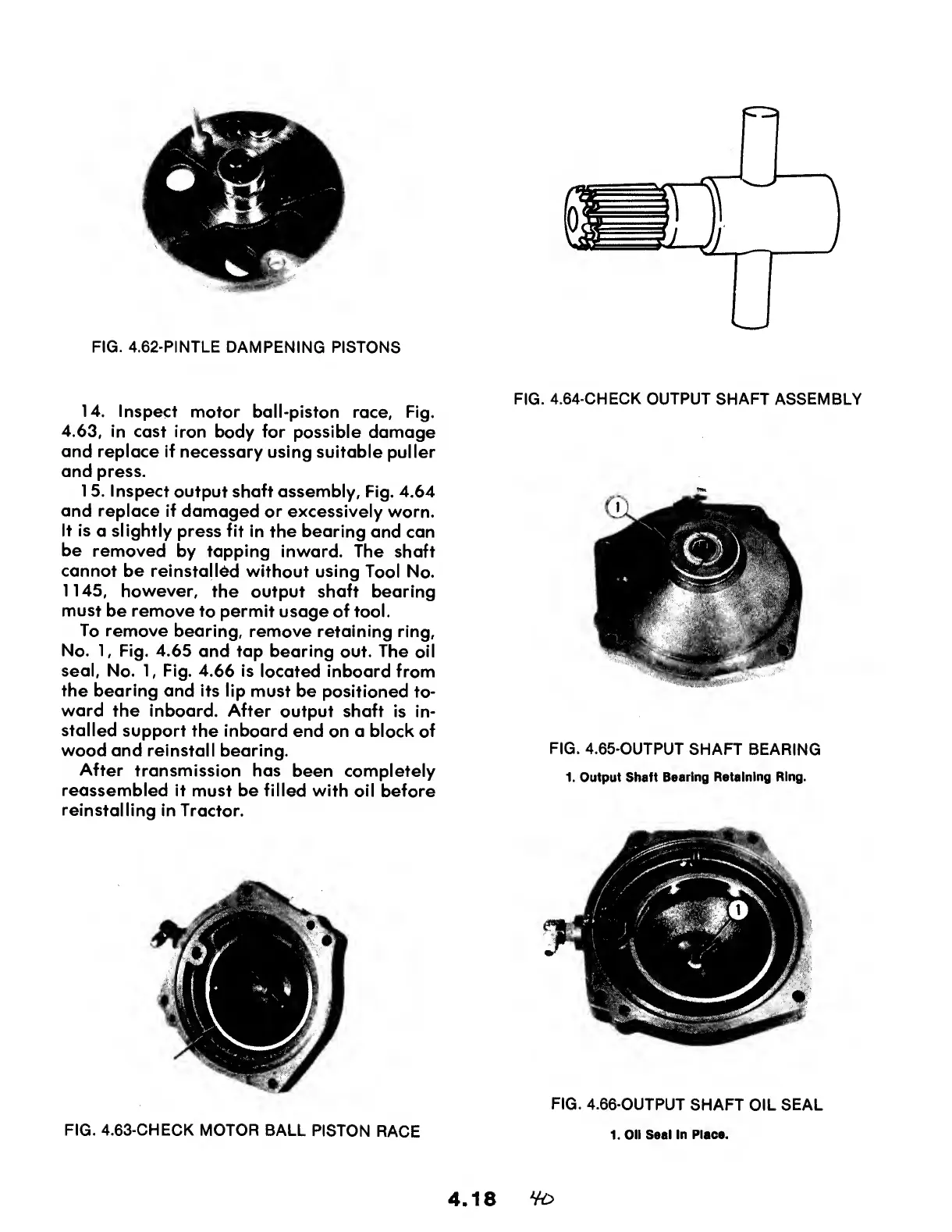

FIG. 4.62-PINTLE DAMPENING PISTONS
14. Inspect motor ball-piston race, Fig.
4.63, in cast iron body for possible damage
and replace if necessary using suitable puller
and press.
1 5. Inspect output shaft assembly, Fig. 4.64
and replace if damaged or excessively worn.
It is a slightly press fit in the bearing and can
be removed by tapping inward. The shaft
cannot be reinstalled without using Tool No.
1145, however, the output shaft bearing
must be remove to permit usage of tool.
To remove bearing, remove retaining ring,
No. 1, Fig. 4.65 and tap bearing out. The oil
seal, No. 1, Fig. 4.66 is located inboard from
the bearing and its lip must be positioned to¬
ward the inboard. After output shaft is in¬
stalled support the inboard end on a block of
wood and reinstall bearing.
After transmission has been completely
reassembled it must be filled with oil before
reinstalling in Tractor.
FIG. 4.63-CHECK MOTOR BALL PISTON RACE
FIG. 4.64-CHECK OUTPUT SHAFT ASSEMBLY
FIG. 4.65-OUTPUT SHAFT BEARING
1. Output Shaft Bearing Retaining Ring.
FIG. 4.66-OUTPUT SHAFT OIL SEAL
1. 011 Seal In Place.
