Contents of Carton
• Lawn Mower (1) • Grass Catcher (1) • Side Discharge Chute (1)
• Electric Starter Push Key† (1) • Operator’s Manual (1) • Oil (1)
Figure 3-2
4. Remove the T-bolts (a) from the handle brackets as shown
in Figure 3-3.
Figure 3-3
NOTE: Please be aware that this Operator’s Manual covers both
the low and high wheel models of this mower. While this manual
illustrates the low wheel model, the instructions and features
are equally applicable to the high wheel model as well, unless
otherwise noted.
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed BEFORE operating your
mower.
Handle
1. Remove any packing material which may be between
upper and lower handles.
2. Remove star knobs (a) and carriage bolts (b) from handle as
shown in Figure 3-1. Do not loosen or remove adjacent hex
head screws.

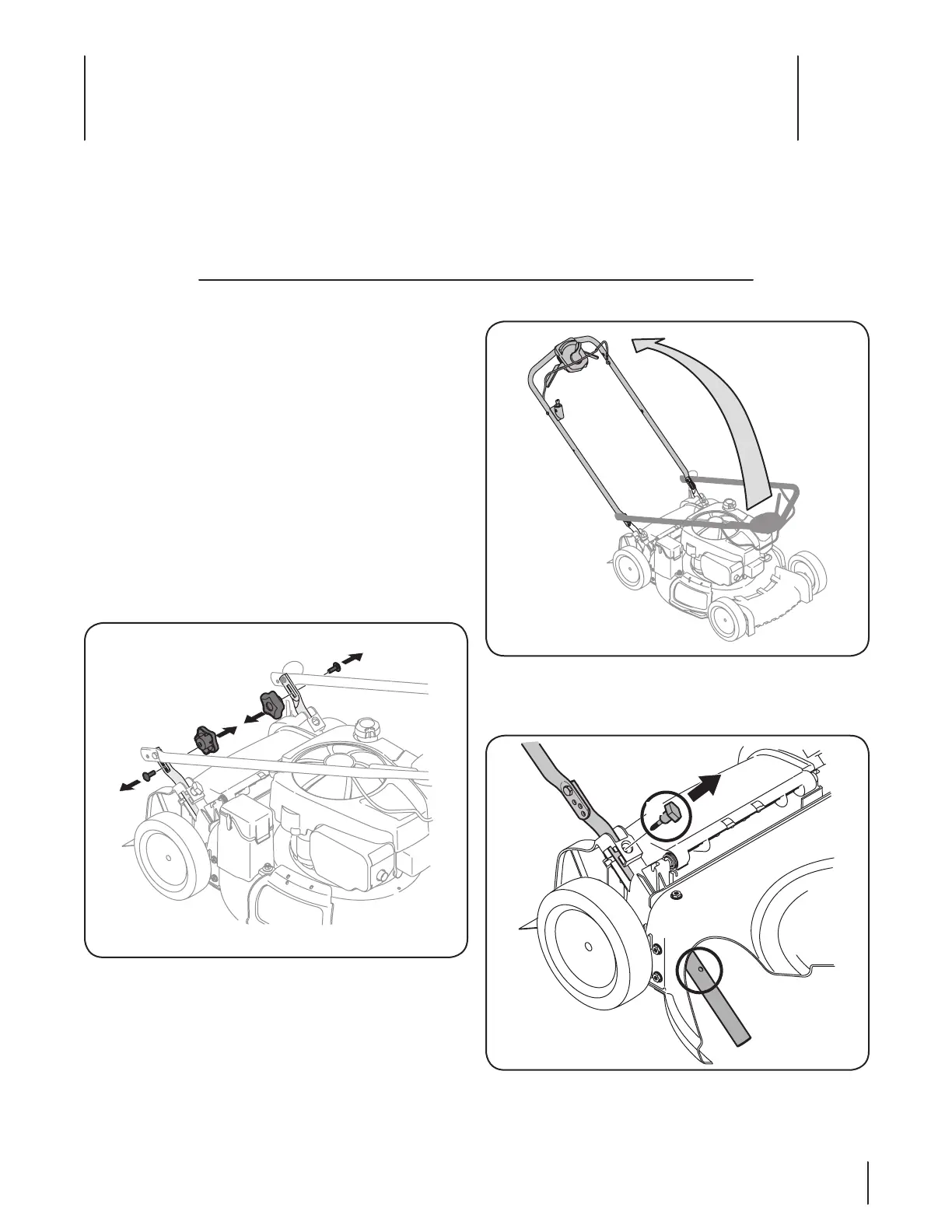

Figure 3-1
3. While stabilizing mower so it doesn’t move, pivot upper
handle up as shown in Figure 3-2. Do not crimp cable while
lifting the handle up.
† If Equipped
To Next Page
