Snapper 22 Series User Manual

9

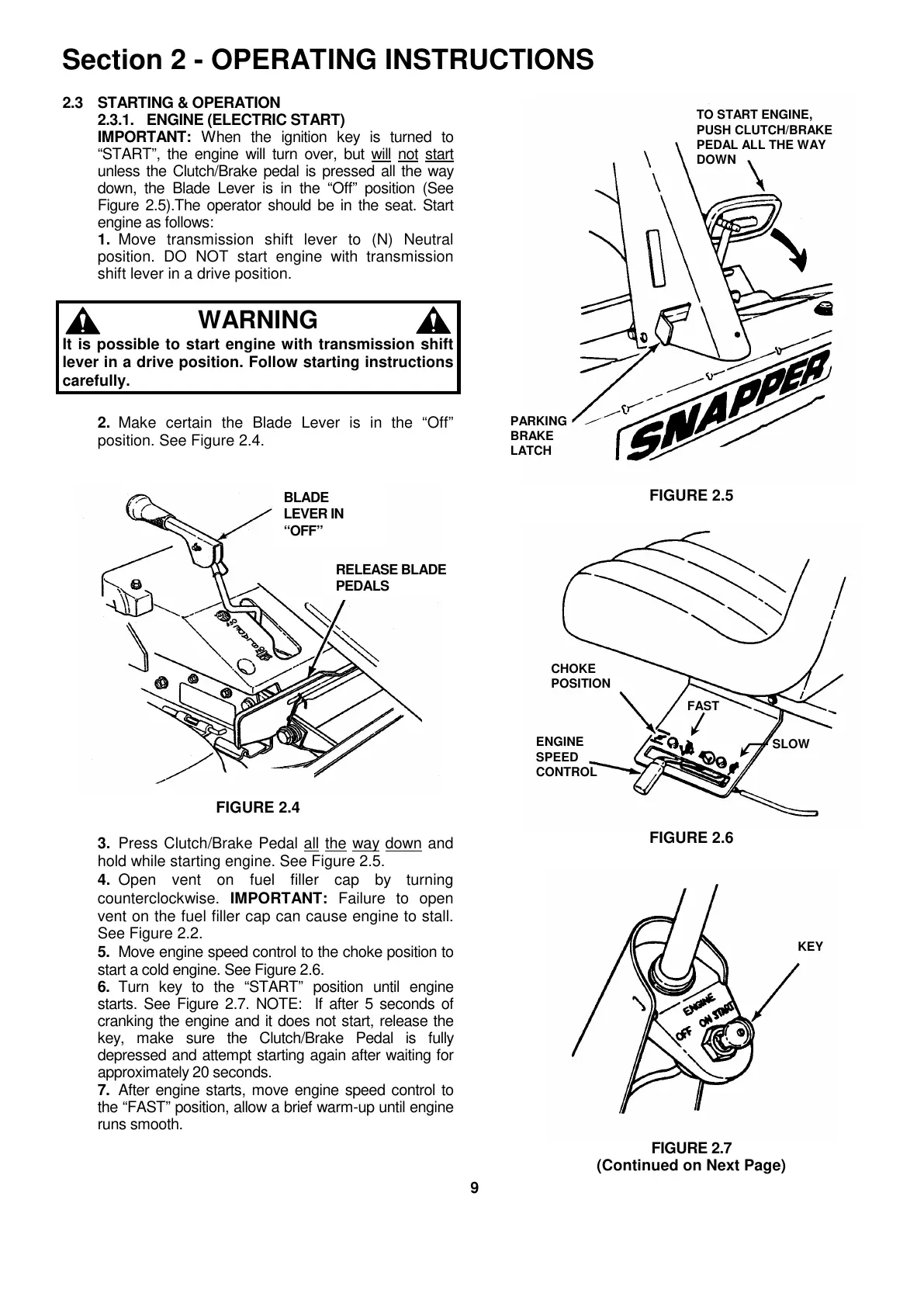

Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING & OPERATION
2.3.1. ENGINE (ELECTRIC START)
IMPORTANT: When the ignition key is turned to
“START”, the engine will turn over, but will
not start
unless the Clutch/Brake pedal is pressed all the way
down, the Blade Lever is in the “Off” position (See
Figure 2.5).The operator should be in the seat. Start
engine as follows:
1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission
shift lever in a drive position.
WARNING
It is possible to start engine with transmission shift
lever in a drive position. Follow starting instructions
carefully.
2. Make certain the Blade Lever is in the “Off”
position. See Figure 2.4.
FIGURE 2.4
3. Press Clutch/Brake Pedal all
the way down and
hold while starting engine. See Figure 2.5.
4. Open vent on fuel filler cap by turning
counterclockwise. IMPORTANT: Failure to open
vent on the fuel filler cap can cause engine to stall.
See Figure 2.2.
5. Move engine speed control to the choke position to
start a cold engine. See Figure 2.6.
6. Turn key to the “START” position until engine
starts. See Figure 2.7. NOTE: If after 5 seconds of
cranking the engine and it does not start, release the
key, make sure the Clutch/Brake Pedal is fully
depressed and attempt starting again after waiting for
approximately 20 seconds.
7. After engine starts, move engine speed control to
the “FAST” position, allow a brief warm-up until engine
runs smooth.
FIGURE 2.5
FIGURE 2.6
FIGURE 2.7
(Continued on Next Page)
TO START ENGINE,
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN
PARKING
BRAKE
LATCH
KEY
CHOKE
POSITION
ENGINE
SPEED
CONTROL
FAST
SLOW
BLADE
LEVER IN
“OFF”
RELEASE BLADE
PEDALS
