Check Transmission Oil Level
®
Do not allow dirt, water, or other debris to
enter the expansion chamber or
transmission. Even a small amount of dirt
can damage the transmission
Service Interval: Every 25 Hours
Oil Type: Type F Automatic Transmission Fluid
1. Clean the area around the transmission dip stick (A,
Figure 25).
2. Remove the dip stick (A) from the transmission and
wipe it clean.
3. insert the dip stick intothe transmission without
threading it in. Remove the dip stick and read the oil
level. The oil level should be even with the top of the
hash mark area when the transmission is cold.

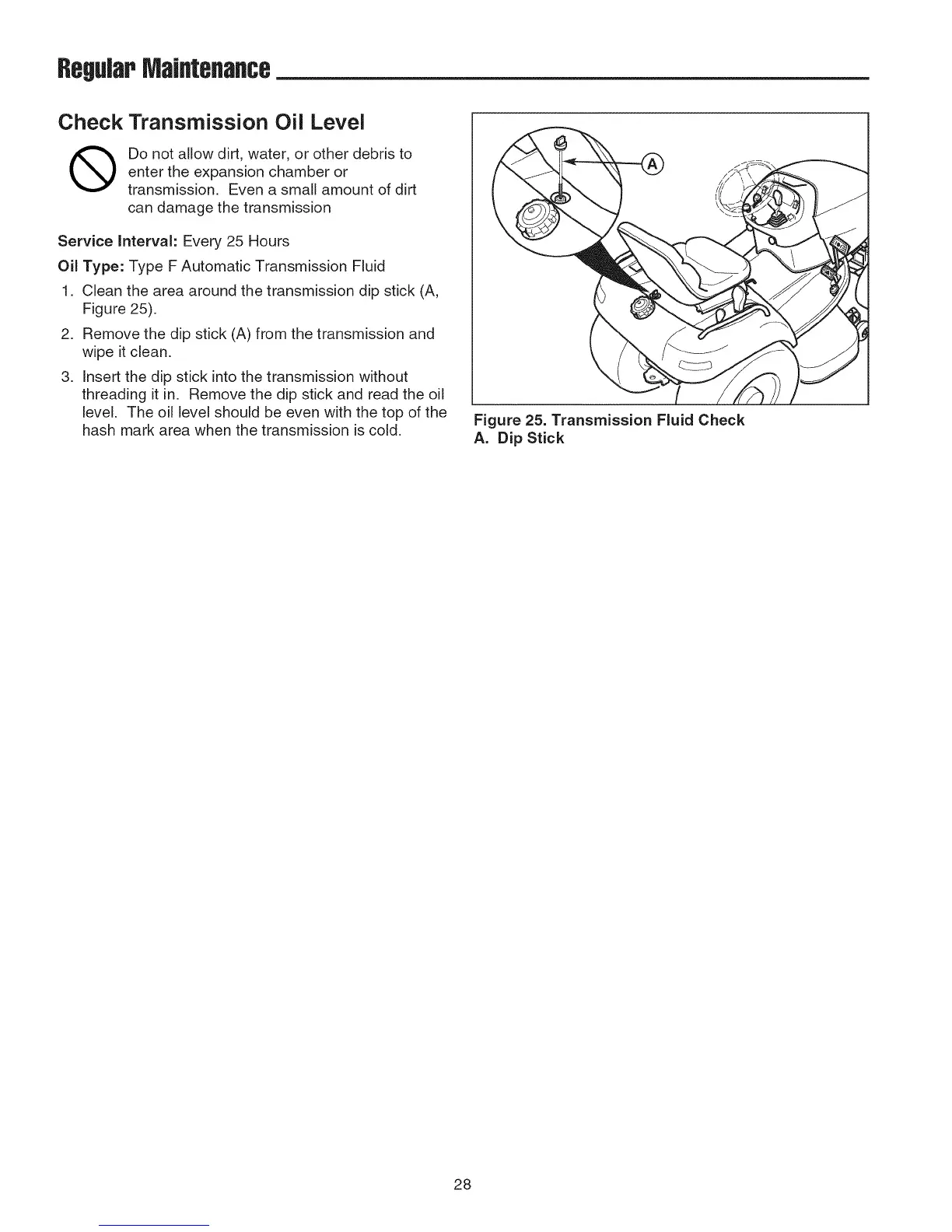

Figure 25. Transmission Fluid Check
A. Dip Stick
