35

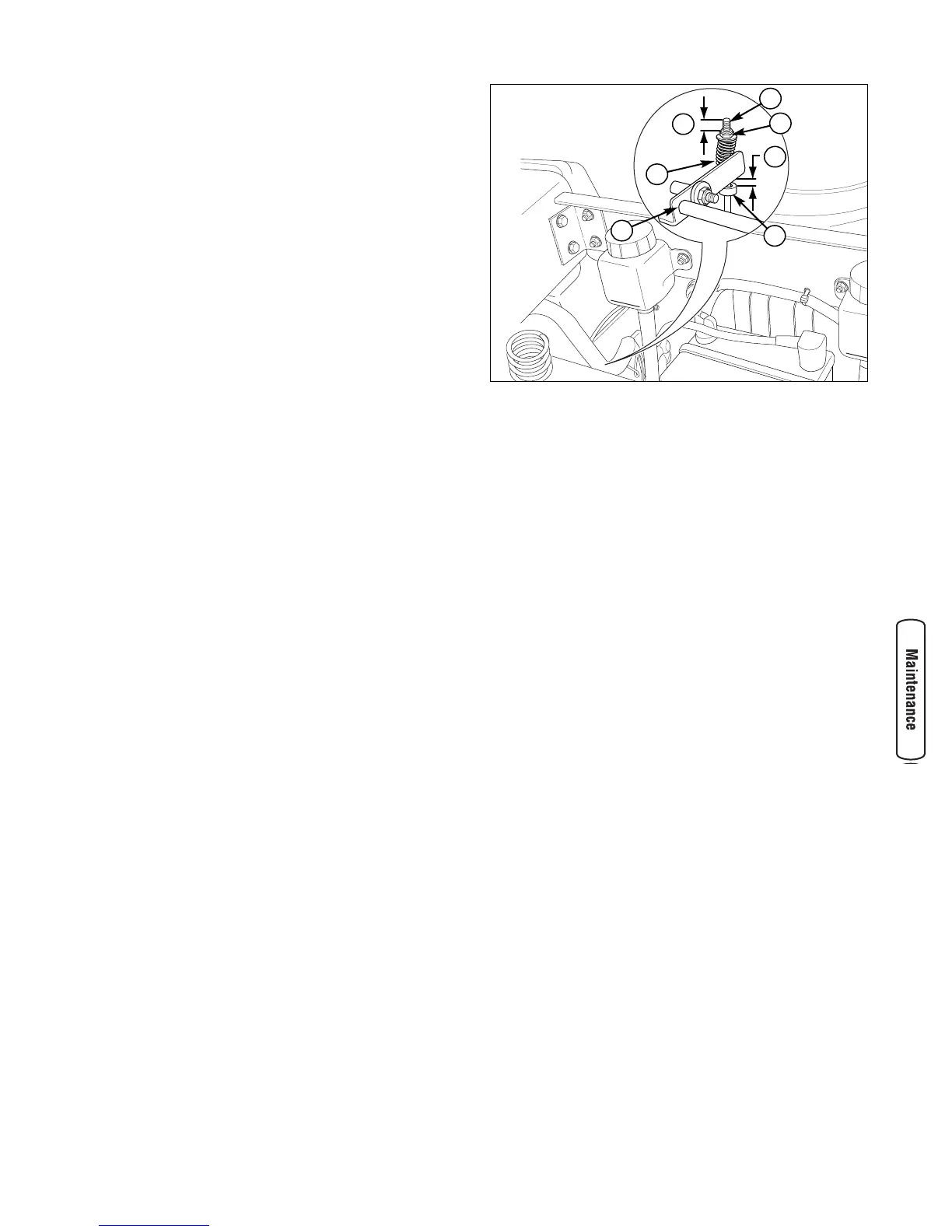

Figure 37. Parking Brake Adjustment
A. Brake Spring
B. First Measurement - 1/2” (1,27 cm)
C. Brake Spring Rod
D. Lock Nut
E. Second Measurement - 3/8” (0,95 cm)
F. Set Collar
G. Brake Shaft Weldment
Parking Brake Adjustment
If the unit creeps with the engine shut off and the parking
brake engaged, the parking brake will need to be adjusted.
1. Disengage the PTO, stop the engine, engage the parking
brake, and remove the key from the ignition.
2. Raise the seat plate to gain access to the parking brake
components.
3. Measure the distance from the top of the brake spring
rod (C, Figure 37) to the top of the lock nut (D) on both
sides of the unit. The measurement should be 1/2” (1,27
cm). If not, adjust the locknut to achieve the
measurement of 1/2” (1,27 cm).
4. Measure the distance between the bottom of the brake
shaft weldment (G) and the top of the set collar (F). The
measurement should be 3/8” (0,95 cm). If not, position
the set collar until the measurement equals 3/8” (0,95
cm).
NOTE: If this procedure does not correct the problem see
your dealer.
E
F
D
B
A
C
G
