www.snapper.com10
Operation
WARNING
Grass Catcher bags used on SNAPPER products are made
of woven fabric, and are subject to deterioration and wear
during normal usage. Check condition of bag before each
use. Immediately replace worn or damaged catcher bags
with only bags recommended by SNAPPER. The grass
catcher is optional equipment on some models.
!
!

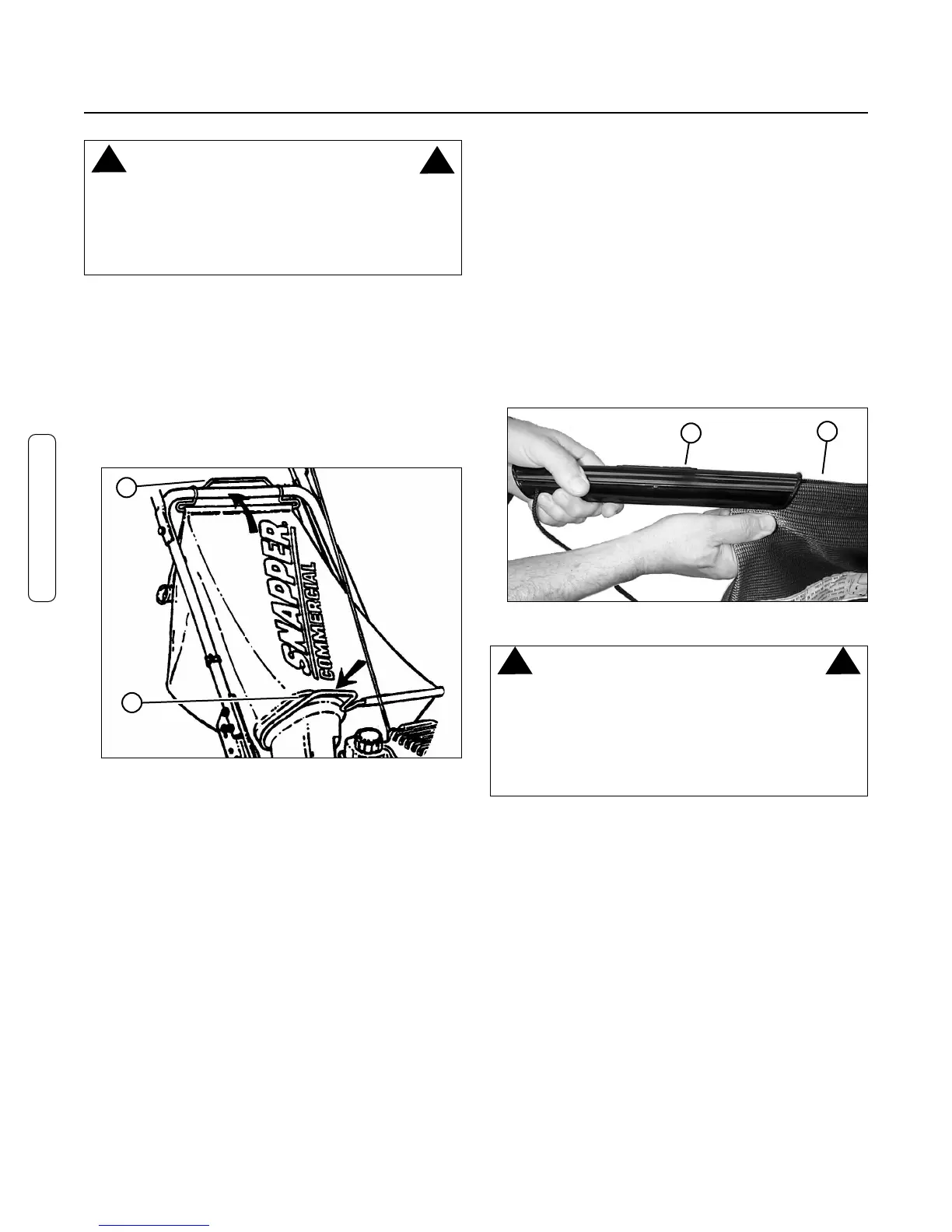

Figure 14: Installing the grass bag
B
A
Figure 15: Removing the bag slider
B
A
Installing the Grass Bag
(Slide Closure Type)
1. Install the grass bag adapter. Refer to the Section
entitled “Installing the Grass Bag Adapter”.
2. Install the grass bag by sliding the connector (A, Figure
14) over the adapter flange.
3. Attach the grass bag hooks (B) over the middle handle
cross bar.
Dumping the Grass Bag
1. Grasp the bag connector and bag handle. Lift up on the
bag handle, removing it from the mower handle. Then
lift up on the bag connector, removing it from the
adapter flange.
2. Open the bag by pulling the bag slider (A, Figure 15) off
of the Z-fold at the rear of the bag (B).
3. To close the bag, fold the rear of the bag into the former
Z-shape, keeping the edges aligned. Grasp the edge of
the Z-fold, and while holding the slider, pull the Z-fold
fully into the slider.
NOTE: An illustration of the Z-Fold is attached to the bag.
WARNING
DO NOT attempt any maintenance, adjustments or service
with engine and blade running. STOP engine and blade.
Disconnect spark plug wire and secure away from spark
plug. Engine and components are HOT. Avoid serious
burns, allow sufficient time for all components to cool.
!
!
Operation (Continued)
