Section 2 - OPERATING INSTRUCTIONS
2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.4. PARK BRAKE
1. Engage park brake by pushing clutch/brake pedal
“DOWN” and moving the park brake lever to the “ON”
position. While holding the park brake lever “ON”,
release clutch/brake pedal to set park brake.

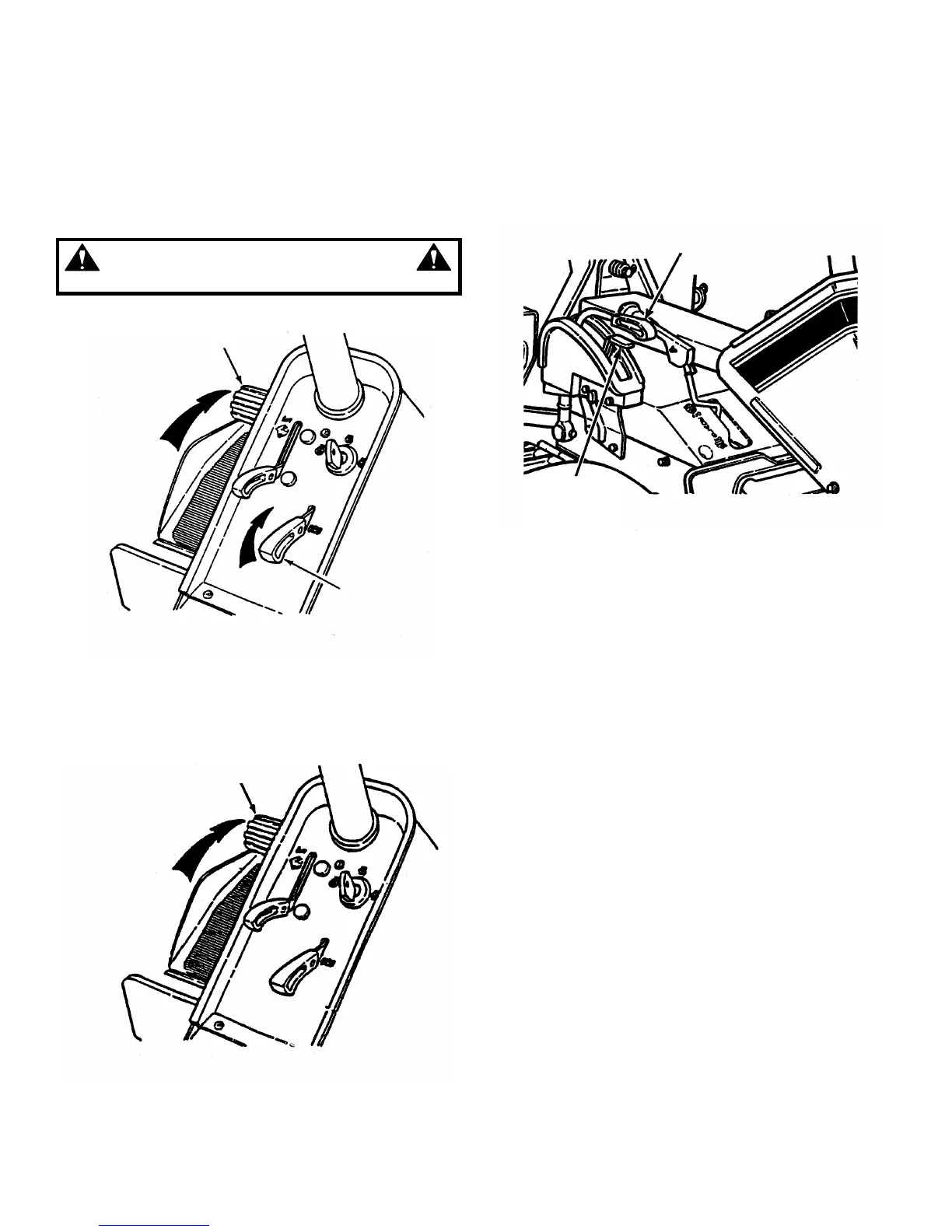

See Figure 2.16.
WARNING
DO NOT park the machine on slopes.
FIGURE 2.16
2. Release park brake by pushing down on the
clutch/brake pedal to release park brake lever. See
Figure 2.17.
FIGURE 2.17
2.5. CUTTING HEIGHT ADJUSTMENT
1. Adjust cutting height as desired to any one of six
positions using deck lift lever. When in desired
height of cut, release latch, then try to move deck
lift lever to ensure lift lever latch is fully engaged.
See Figure 2.18.
FIGURE 2.18
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY DOWN
MOVE PARK
BRAKE LEVER
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN
DECK LIFT LEVER
LIFT LEVER
LATCH
To Next Page
