Snapper GROUNDS CRUISER GC9520KW Parts Manual

11

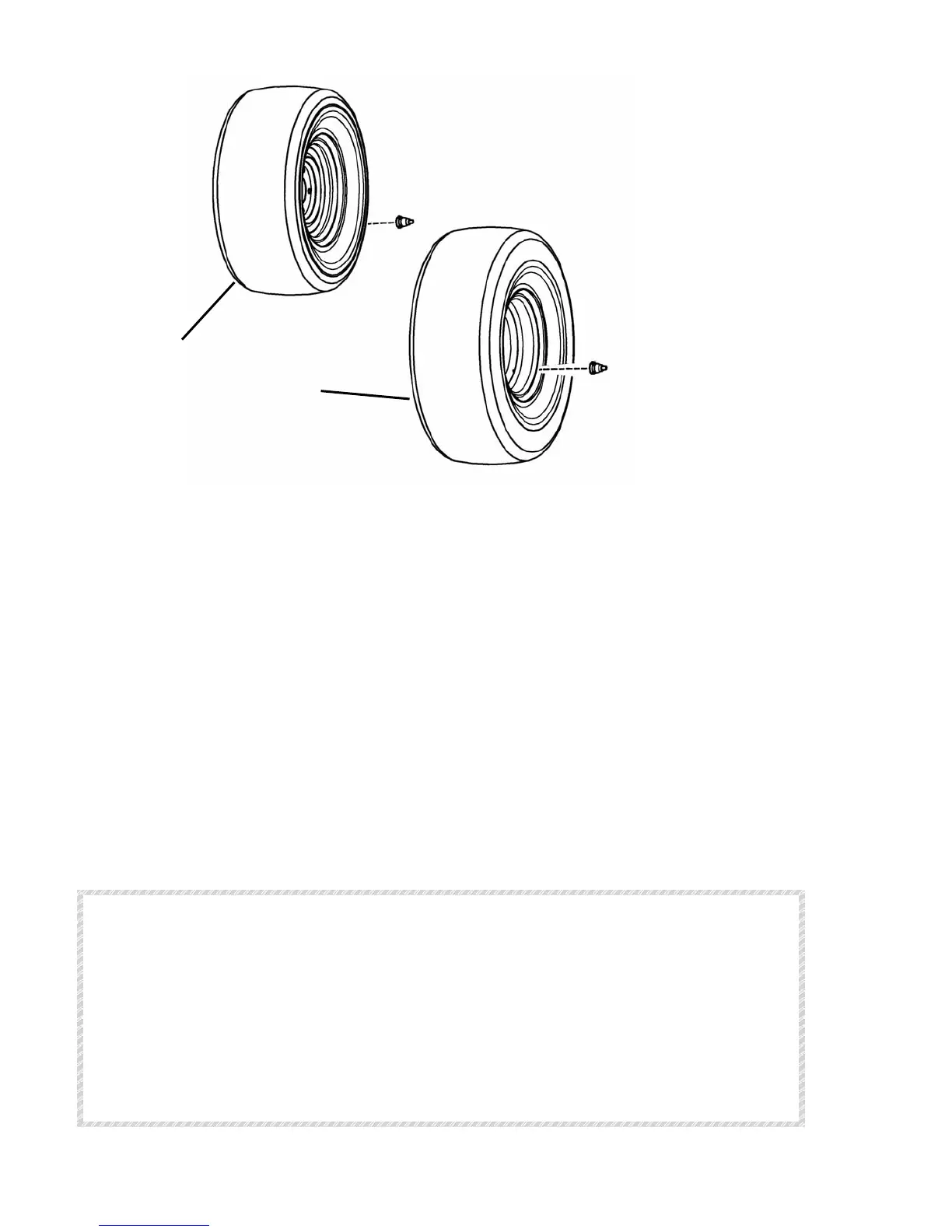

WHEEL GROUP
-- 6-3152 KIT, Turf Tire (Utility Vehicle) (includes items listed below)
1 5-8652 ASSEMBLY, Front Wheel (Qty. 2) (Includes 1A & 1B)
1A 7-3005 TIRE, Titan Multi Trac C/S, 23 x 8.50-12, 4 Ply
1B 7-3832 RIM, 12 x 7.00 w/1.06 Inset Wheel
2 5-8653 ASSEMBLY, Rear Wheel (Qty. 2) (Includes 2A & 2B)
2A 7-2888 TIRE, Titan Multi Trac 26 x 12.00-12, 4Ply
2B 7-3823 RIM, 12 x 8.50 w/.95 Offset Wheel
GROUNDS CRUISER UTILITY VEHICLE SERIES 0 MANUAL No. 06126
ITEM NO.
QTY.
PART #
DESCR
IPTION
1 1 58473 ASSEMBLY, RIGHT HAND FRONT WHEEL
1 73007 RIM, 10 X 6 W/1.06 OFFSET
1 73194 TIRE, ATV 22 X 11 - 10
1 12234 VALVE, AIR (snap-in)
2 1 58472 ASSEMBLY, LEFT HAND FRONT WHEEL (not shown)
1 73007 RIM, 10 X 6 W/1.06 OFFSET
1 73194 TIRE, ATV 22 X 11 - 10
1 12234 VALVE, AIR (snap-in)
3 1 58471 ASSEMBLY, RIGHT HAND REAR WHEEL
1 73193 RIM, 10 X 6 W/ 1.25 OFFSET
1 73195 TIRE, ATV 25 X 12 - 10
1 12234 VALVE, AIR (snap-in)
4 1 58470 ASSEMBLY, LEFT HAND REAR WHEEL (not shown)
1 73193 RIM, 10 X 6 W/ 1.25 OFFSET
1 73195 TIRE, ATV 25 X 12 - 10
1 12234 VALVE, AIR (snap-in)
3
1
