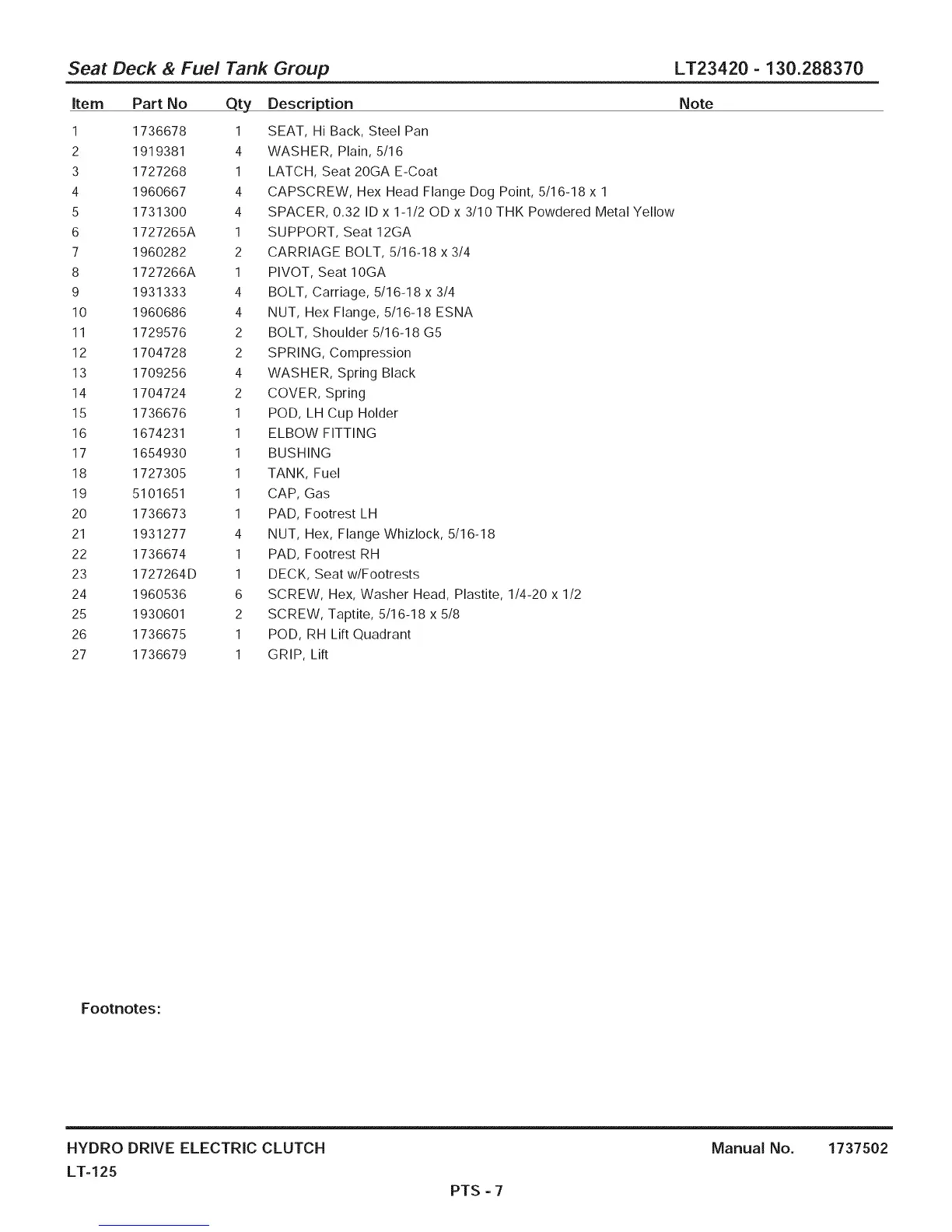

Seat Deck & Fuel Tank Group LT23420 - 130.288370
Item Part No
1 1736678
2 1919381
3 1727268
4 1960667
5 1731300
6 1727265A
7 1960282
8 1727266A
9 1931333
10 1960686
11 1729576
12 1704728
13 1709256
14 1704724
15 1736676
16 1674231
17 1654930
18 1727305
19 5101651
20 1736673
21 1931277
22 1736674
23 1727264D
24 1960536
25 1930601
26 1736675
27 1736679
DescriptionQty
1 SEAT, Hi Back, Steel Pan
4 WASHER, Plain, 5/16
1 LATCH, Seat 20GA E-Coat
4 CAPSCREW, Hex Head Flange Dog Point, 5/16-18 x 1
4 SPACER, 0.32 ID x 1-1/20D x 3/10 THK Powdered Metal Yellow
1 SUPPORT, Seat 12GA
2 CARRIAGE BOLT, 5/16-18 x 3/4
1 PIVOT, Seat 10GA
4 BOLT, Carriage, 5/16-18 x 3/4
4 NUT, Hex Flange, 5/16-18 ESNA
2 BOLT, Shoulder 5/16-18 G5
2 SPRING, Compression
4 WASHER, Spring Black
2 COVER, Spring
1 POD, LH Cup Holder
1 ELBOW FITTING
1 BUSHING
1 TANK, Fuel
1 CAP, Gas
1 PAD, Footrest LH
4 NUT, Hex, Flange Whizlock, 5/16-18
1 PAD, Footrest RH
1 DECK, Seat w/Footrests
6 SCREW, Hex, Washer Head, Plastite, 1/4-20 x 1/2
2 SCREW, Taptite, 5/16-18 x 5/8
1 POD, RH Lift Quadrant
1
GRIP, Lift
Note
Footnotes:
HYDRO DRIVE ELECTRIC CLUTCH
LT-125
PTS =7
Manual No. 1737502
