Operation,
Adjusting Mower Cutting Height
The mower lift lever (A, Figure 6) controls the mower cut-
ring height. The cutting height is has seven positions
between approximately 1-1/4" and 4" (3,2-10 cm).
Attaching a Trailer
The maximum horizontal drawbar force allowed is 280
Nm. The maximum vertical drawbar force is 160 Nm.
This equates to a 250 Ibs (113 kg) trailer on a 10 degree
hill. Secure the trailer with an appropriately sized clevis
pin (A, Figure 7) and clip (B).
®

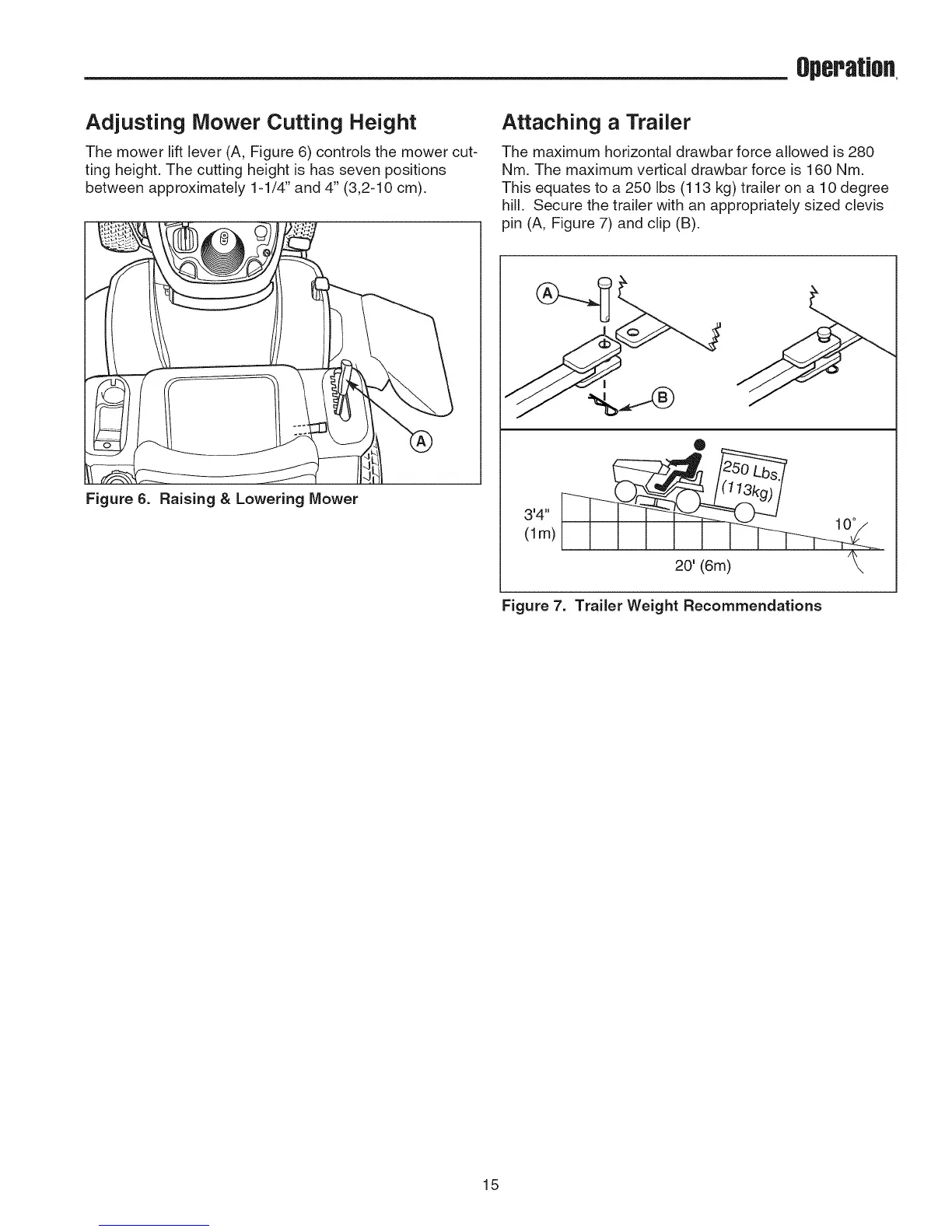

Figure 6. Raising & Lowering Mower
'4"
(lm)
20' (6m)
Figure 7. Trailer Weight Recommendations
10°
15
