Snapper LT145H38GBV User Manual

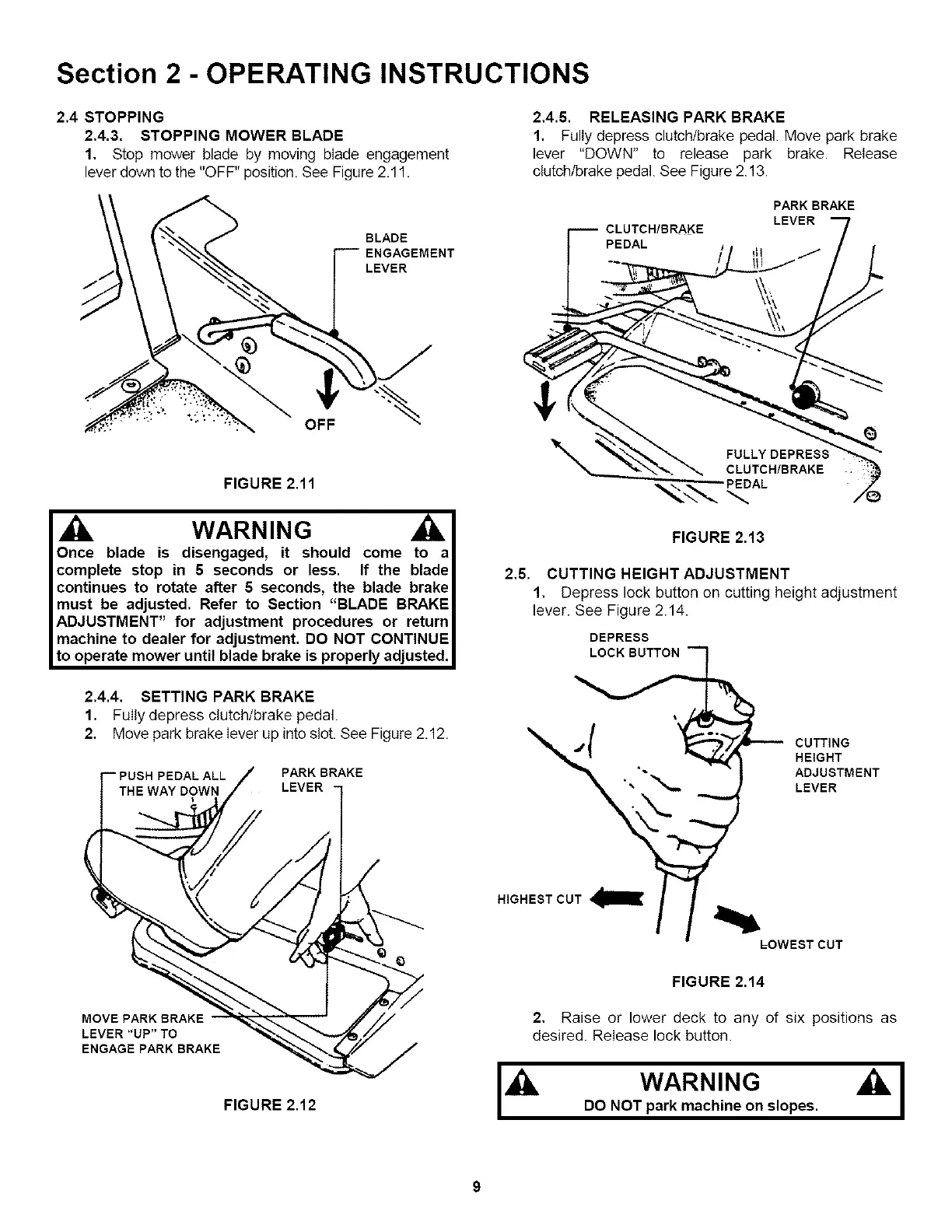

Section 2 - OPERATING INSTRUCTIONS
2,4 STOPPING
2,4,3, STOPPING MOWER BLADE
1, Stop mower blade by moving blade engagement
lever down to the "OFF" )osition. See Figure 2.11.
BLADE
LEVER
OFF
2,4.5. RELEASING PARK BRAKE
1, Fully depress clutch/brake pedal. Move park brake
lever "DOWN" to release park brake. Release
clutch/brake pedal. See Figure 2.13.
CLUTCH/BRAKE
PEDAL
PARK BRAKE
LEVER
FIGURE 2.11
WARNING
Once blade is disengaged, it should come to a
complete stop in 5 seconds or less. If the blade
continues to rotate after 5 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to dealer for adjustment. DO NOT CONTINUE
to operate mower until blade brake is properly adjusted.
2,_.
FIGURE 2.13
CUTTING HEIGHT ADJUSTMENT
1, Depress lock button on cutting height adjustment
lever. See Figure 2.14.
DEPRESS
LOCK BUTTON
2,4.4. SETTING PARK BRAKE
1. Fully depress clutch/brake pedal.
2. Move park brake lever up into slot. See Figure 2.12.
PEDAL ALL PARK BRAKE
LEVER
MOVE PARK BRAKE
LEVER"UP"TO
ENGAGE PARK BRAKE
FIGURE 2.12
CUTTING
HEIGHT
ADJUSTMENT
LEVER
HIGHEST CUT
LOWEST CUT
FIGURE 2.14
2, Raise or lower deck to any of six positions as
desired. Release lock button.
i WARNING
DO NOT parkmachine on slopes.
9
