Section 2 - OPERATING INSTRUCTIONS
2.6. ROLLING TRACTOR WITH ENGINE OFF
2.6.1. Rolling Hydro Models
1. With engine "OFF", move to rear of tractor.
2. Pull the roll release control all the way out to
disengage the hydro transmission. See Figure 2.15.

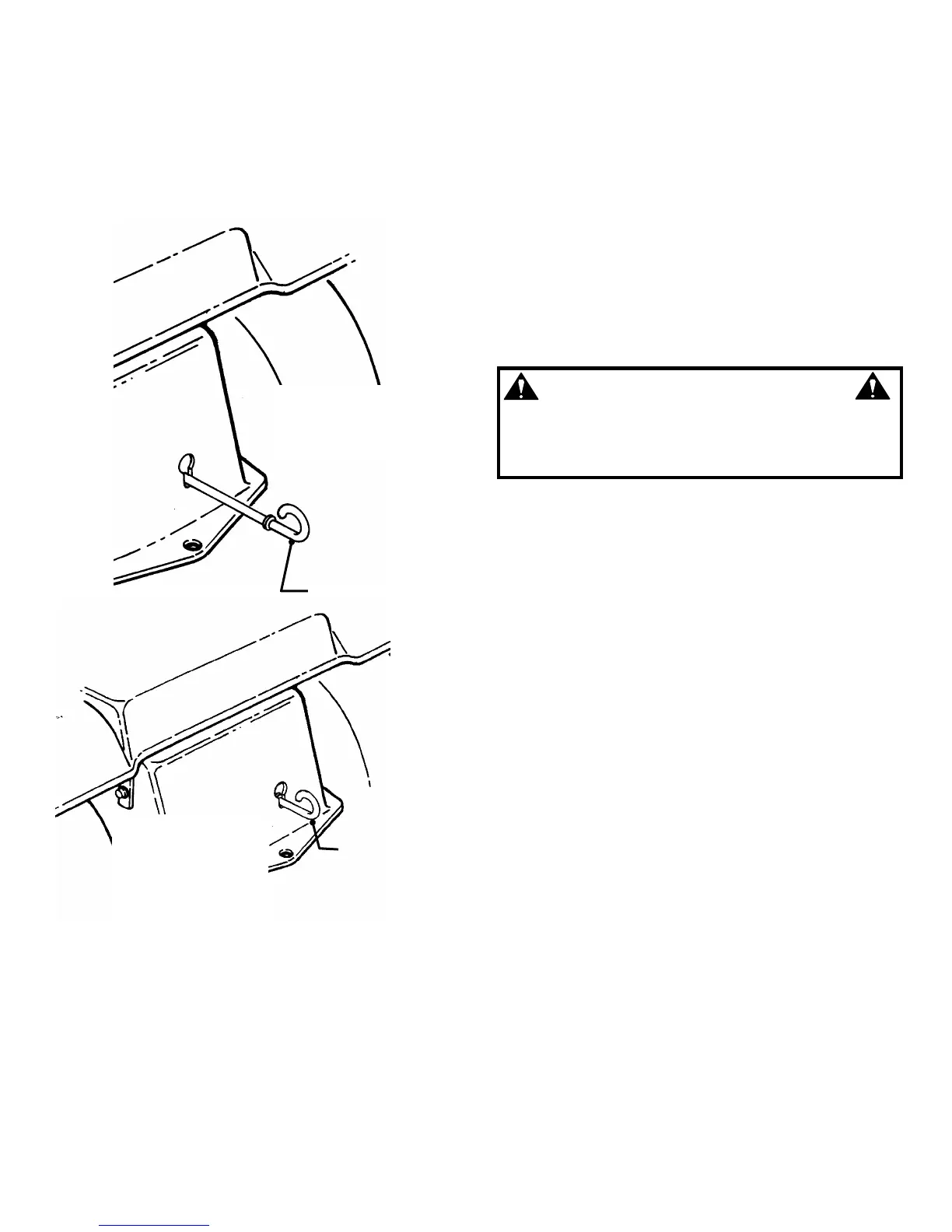

FIGURE 2.15
3. Move tractor to desired location.
4. Push roll release control all the way in to engage
hydro transmission. See Figure 2.15.
5. Set park brake.
NOTE: The transmission will not propel the tractor if it is
left in the "ROLL" position.
WARNING
DO NOT disengage the hydro transmission and coast
down slopes. DO NOT use Roll Release Control to
disengage the hydro transmission unless machine
motion can be controlled and engine is off.
PUSH ROLL RELEASE
CONTROL ALL THE WAY
IN TO ENGAGE HYDRO
TRANSMISSION
ROLL RELEASE
CONTROL
ROLL RELEASE
CONTROL
PULL ROLL RELEASE
CONTROL ALL THE WAY
OUT TO DISENGAGE
HYDRO TRANSMISSION
