Snapper P216019KWV User Manual

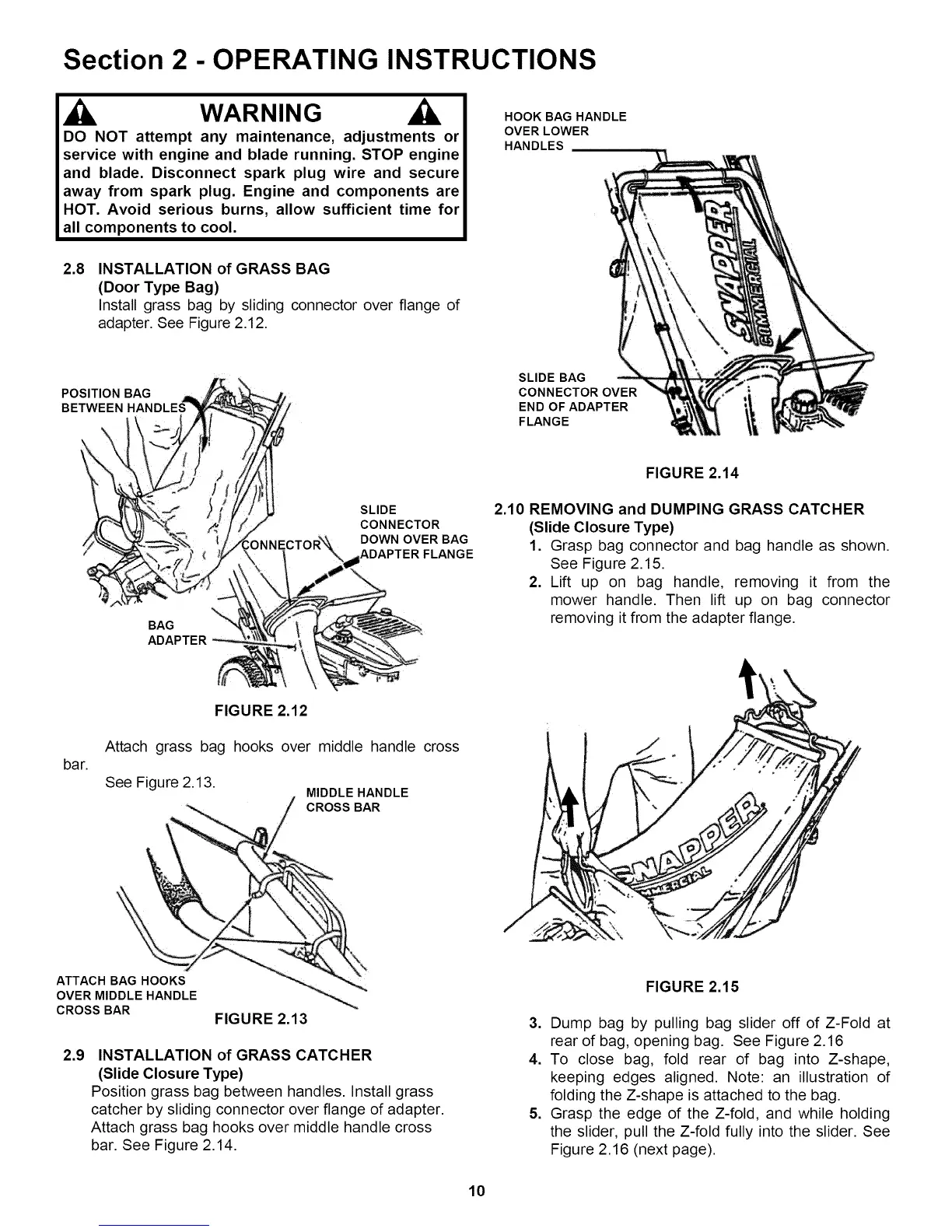

Section 2 -OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
HOOK BAG HANDLE
OVER LOWER
HANDLES
2.8 INSTALLATION of GRASS BAG
(Door Type Bag)
Install grass bag by sliding connector over flange of
adapter. See Figure 2.12.
POSITION BAG
BETWEEN
BAG
ADAPTER
\
SLIDE
CONNECTOR
DOWN OVER BAG
SLIDE BAG
CONNECTOR OVER
END OF ADAPTER
FLANGE
FIGURE 2.14
2.10 REMOVING and DUMPING GRASS CATCHER
(Slide Closure Type)
1. Grasp bag connector and bag handle as shown.
See Figure 2.15.
2. Lift up on bag handle, removing it from the
mower handle. Then lift up on bag connector
removing it from the adapter flange.
bar.
FIGURE 2.12
Attach grass bag hooks over middle handle cross
See Figure 2.13.
MIDDLE HANDLE
ATTACH BAG HOOKS
OVER MIDDLE HANDLE
CROSS BAR
FIGURE 2.13
2.9 INSTALLATION of GRASS CATCHER
(Slide Closure Type)
Position grass bag between handles. Install grass
catcher by sliding connector over flange of adapter.
Attach grass bag hooks over middle handle cross
bar. See Figure 2.14.
FIGURE 2.15
3. Dump bag by pulling bag slider off of Z-Fold at
rear of bag, opening bag. See Figure 2.16
4. To close bag, fold rear of bag into Z-shape,
keeping edges aligned. Note: an illustration of
folding the Z-shape is attached to the bag.
5. Grasp the edge of the Z-fold, and while holding
the slider, pull the Z-fold fully into the slider. See
Figure 2.16 (next page).
10

Snapper P216019KWV Specifications

General

Brand	Snapper
Model	P216019KWV
Category	Lawn Mower
Language	English
