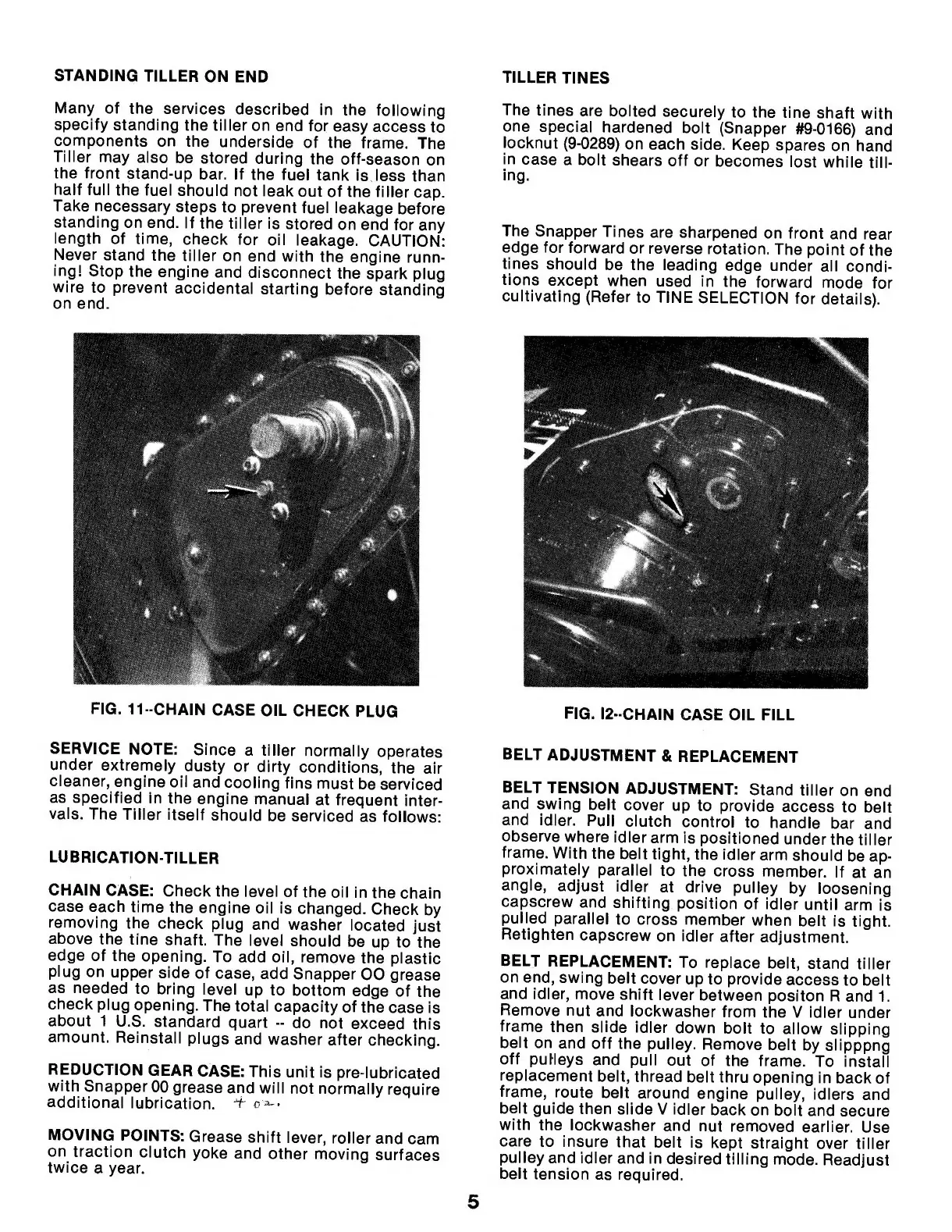

Page #5 background imageLoading...
Page #5 background image
STANDING
TILLER
ON
END
Many
of
the
services
described
in
the
foliowing
specify
standing
the
tiller
on
end
for
easy
access
to
components
on
the
underside
of
the
frame.
The
Tiller
may
also
be
stored
during
the
off-season
on
the
front
stand-up
bar.
If
the
fuel
tank
is
less
than
half
full
the
fuel
should
not
leak
out
of
the
filler
cap.
Take
necessary
steps
to
prevent
fuel
leakage
before
standing
on
end.
If
the
tiller
is
stored
on
end
for
any
length
of
time,
check
for
oil
leakage.
CAUTION;
Never
stand
the
tiller
on
end
with
the
engine
runn¬
ing!
Stop
the
engine
and
disconnect
the
spark
plug
wire
to
prevent
accidental
starting
before
standing
on
end.
FIG.
11-
CHAIN
CASE
OIL
CHECK
PLUG
SERVICE
NOTE:
Since
a
tiller
normally
operates
under
extremely
dusty
or
dirty
conditions,
the
air
cleaner,
engine
oil
and
cooling
fins
must
be
serviced
as
specified
in
the
engine
manual
at
frequent
inter¬
vals.
The
Tiller
itself
should
be
serviced
as
follows:
LUBRICATION-TILLER
CHAIN
CASE:
Check
the
level
of
the
oil
in
the
chain
case
each
time
the
engine
oil
is
changed.
Check
by
removing
the
check
plug
and
washer
located
just
above
the
tine
shaft.
The
level
should
be
up
to
the
edge
of
the
opening.
To
add
oil,
remove
the
plastic
plug
on
upper
side
of
case,
add
Snapper
00
grease
as
needed
to
bring
level
up
to
bottom
edge
of
the
check
plug
opening.
The
total
capacity
of
the
case
is
about
1
U.S.
standard
quart
-
do
not
exceed
this
amount.
Reinstall
plugs
and
washer
after
checking.
REDUCTION
GEAR
CASE:
This
unit
is
pre-lubricated
with
Snapper
00
grease
and
will
not
normally
require
additional
lubrication.
+
cr^-
MOVING
POINTS:
Grease
shift
lever,
roller
and
cam
on
traction
clutch
yoke
and
other
moving
surfaces
twice
a
year.
TILLER
TINES
The
tines
are
bolted
securely
to
the
tine
shaft
with
one
special
hardened
bolt
(Snapper
#9-0166)
and
locknut
(9-0289)
on
each
side.
Keep
spares
on
hand
in
case
a
bolt
shears
off
or
becomes
lost
while
till¬
ing.
The
Snapper
Tines
are
sharpened
on
front
and
rear
edge
for
forward
or
reverse
rotation.
The
point
of
the
tines
should
be
the
leading
edge
under
all
condi¬
tions
except
when
used
in
the
forward
mode
for
cultivating
(Refer
to
TINE
SELECTION
for
details).
FIG.
12-CHAIN
CASE
OIL
FILL
BELT
ADJUSTMENT
&
REPLACEMENT
BELT
TENSION
ADJUSTMENT:
Stand
tiller
on
end
and
swing
belt
cover
up
to
provide
access
to
belt
and
idler.
Pull
clutch
control
to
handle
bar
and
observe
where
idler
arm
is
positioned
under
the
tiller
frame.
With
the
belt
tight,
the
idler
arm
should
be
ap¬
proximately
parallel
to
the
cross
member.
If
at
an
angle,
adjust
idler
at
drive
pulley
by
loosening
capscrew
and
shifting
position
of
idler
until
arm
is
pulled
parallel
to
cross
member
when
belt
is
tight.
Retighten
capscrew
on
idler
after
adjustment.
belt
REPLACEMENT:
To
replace
belt,
stand
tiller
on
end,
swing
belt
cover
up
to
provide
access
to
belt
and
idler,
move
shift
lever
between
positon
R
and
1.
Remove
nut
and
lockwasher
from
the
V
idler
under
frame
then
slide
idler
down
bolt
to
allow
slipping
belt
on
and
off
the
pulley.
Remove
belt
by
slipppng
off
puHeys
and
pull
out
of
the
frame.
To
install
replacement
belt,
thread
belt
thru
opening
in
back
of
frame,
route
belt
around
engine
pulley,
idlers
and
belt
guide
then
slide
V
idler
back
on
bolt
and
secure
with
the
lockwasher
and
nut
removed
earlier.
Use
care
to
insure
that
belt
is
kept
straight
over
tiller
pulley
and
idler
and
in
desired
tilling
mode.
Readjust
belt
tension
as
required.
5
