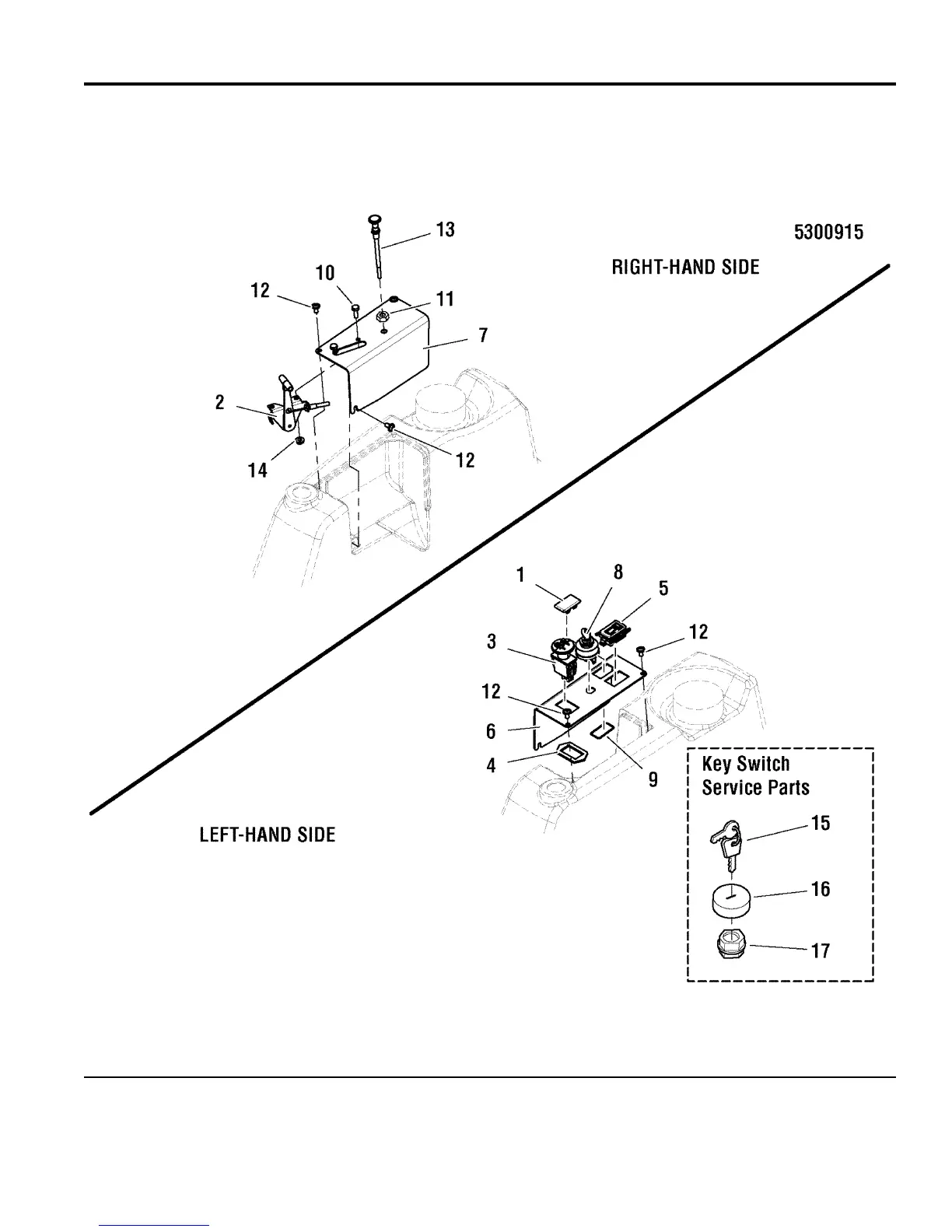

Instrument Control Panel Group
NOTE: Unless noted otherwise, use
the standard hardware torque
specification chart.
The above parts
group applies to
the following Mfg. Nos
.:
2007
12
© Copyright Briggs and St
ratton. All Rights
Reserved.
5900683
5900709
5900734
TP 400-7345-IR-M5-SP
11
13
Table of Contents
Table of Contents
3
Main Frame & Front Caster Group
4
Rear Bumper Group
6
Seat Mount & Floor Group
8
Fuel Tank Mount & Supply Group
10
Instrument Control Panel Group
12
Engine & PTO Group - 26 HP Briggs & Stratton
14
Engine & PTO Group - 19 HP Kawasaki
16
Pump Drive Group
18
Motion Control Group
20
Hydraulic Group
22
Parking Brake Group
24
Deck Lift Group
26
Transmission SERVICE PARTS
28
Wheel & Tire Group
30
Decal Group - Brand & Model
32
Decal Group - Safety & Operation
34
36" & 48" Mower Deck - Hanger Chains
36
48" Mower Deck - Housing, Covers, Spindles & Blades
38
48" Mower Deck - Pulleys, Belts & Idler Arm Group
40
36" Mower Deck - Housing, Covers, Spindles & Blades
42
36" Mower Deck - Pulleys, Belt & Idler Arm
44
48" Mower Deck - Rollers
46
Torque Specification Chart
49
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Snapper S50X Series and is the answer not in the manual?
Ask a question
Snapper S50X Series Specifications
General
Brand
Snapper
Model
S50X Series
Category
Lawn Mower
Language
English
