Snapper SGV13320KW - Page 31

GVTP SM32-R0303.1
32" Cut Mower

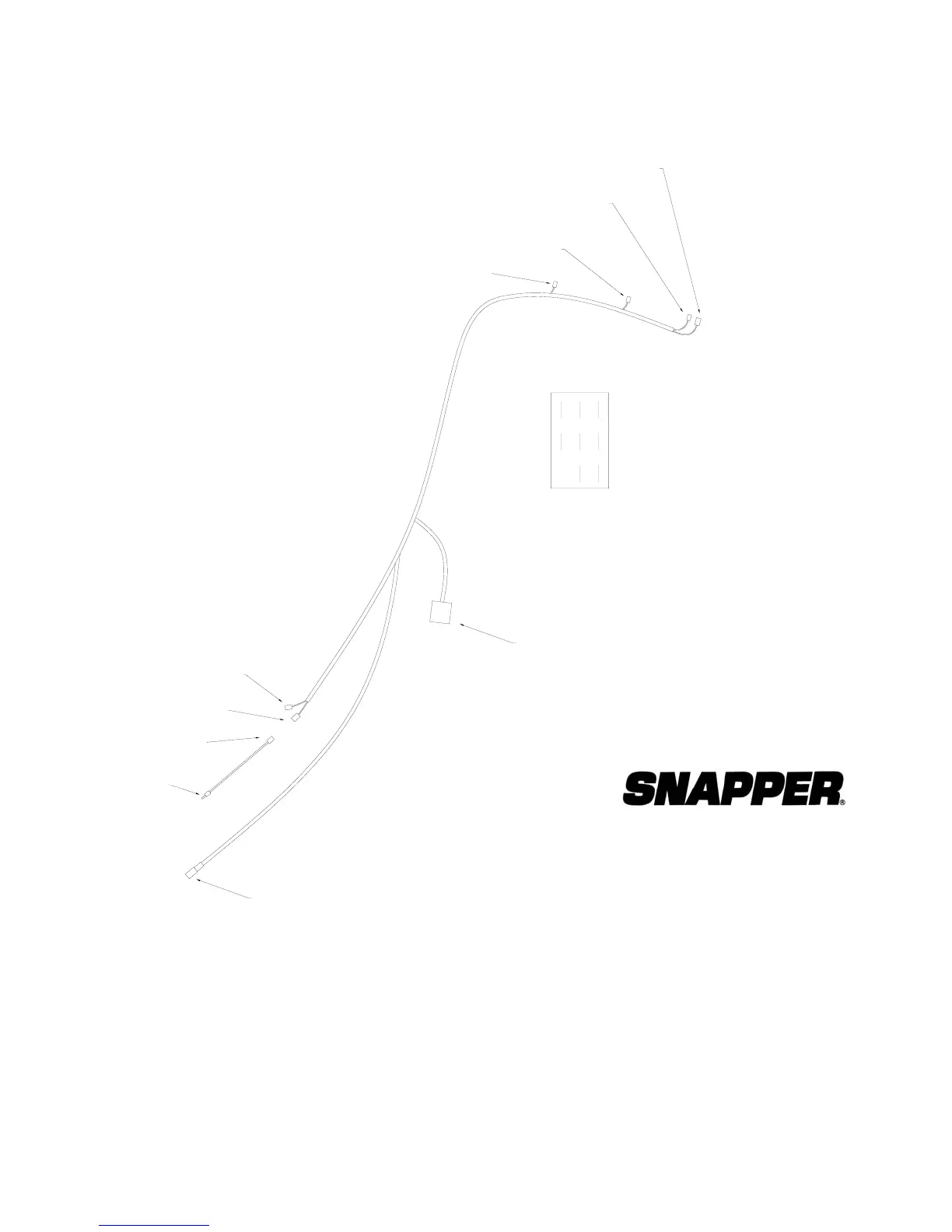

HARNESS WIRING SCHEME
2-terminal male housing -
Blade Clutch
A - Not used
B - To 1/4" Female on Harness
C - To Ground lead
D-F - Not Used
G-H - To 2-terminal housing on Harness
1/4" female -
PTO switch - location 'B'
1/4" male
Bullet terminal -
engine kill
1/4" female
1/4" female -
engine hot
2-terminal female housing -
Transmission Ball Switch
PTO switch
(looking up
from below)
D
A
HG
FE
CB
1/4" female -
'off' switch
1/4" female -
safety switch
2-terminal housing -
PTO switch - locations 'G" & 'H'
