GVTP SM32-R0303.1
3
unit assembly (cont.)

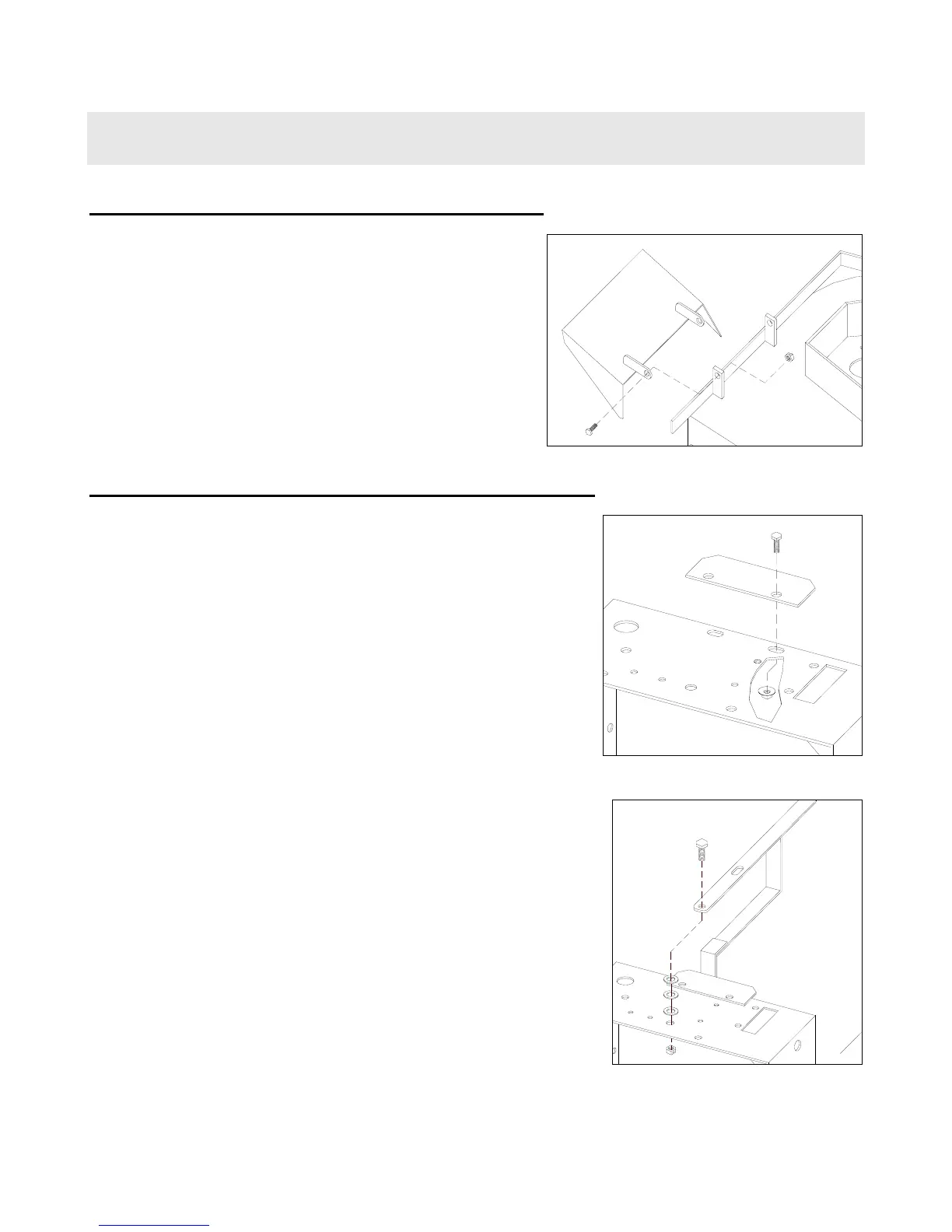

DISCHARGE DEFLECTOR ASSEMBLY
• Attach discharge deflector (1:5) using two 5/16"
x ¾" bolts and lock nuts (1:6-7). CAUTION:
Do not over tighten lock nuts.
TRANSMISSION SHIFT LEVER ASSEMBLY
• Install Shift indicator panel (2:45) onto rear of
engine deck (2:1) with two 5/16 x 3/4” hex bolts
(2:47), securing with large serrated flange nuts
(2:48). Leave hardware finger tight.
• Remove 3/8” nylon lock nut and flat washer
(2:43,44) from shift stud atop transmission
(2:14 – location ‘A’).
• Remove 1/2 x 2-1/2” hex bolt, three oillite
washers, and lock nut (2:40-42) from top rear of
engine deck.
• Insert same 1/2” bolt down through top forward
hole in Shift lever (2:38), slip same three
washers up onto threads of bolt, then drop bolt
into same hole.
