Section 1 - FAMILIARIZATION
FIGURE 1.1
(MODEL SPV21 SHOWN)
1.1 INTRODUCTION
This manual has been prepared for the operators of
the SNAPPER ‘EASY LINE’ WALK BEHIND
MOWERS. Its purpose, aside from recommending
operating and routine service requirements, is to
promote safety through the use of accepted
operating practices. Read, Understand and Follow
the “IMPORTANT SAFETY INSTRUCTIONS” on
Pages 2 - 4 of this manual and all safety messages
on the mower and attachments before operating the
mower.
1.2 NOMENCLATURE

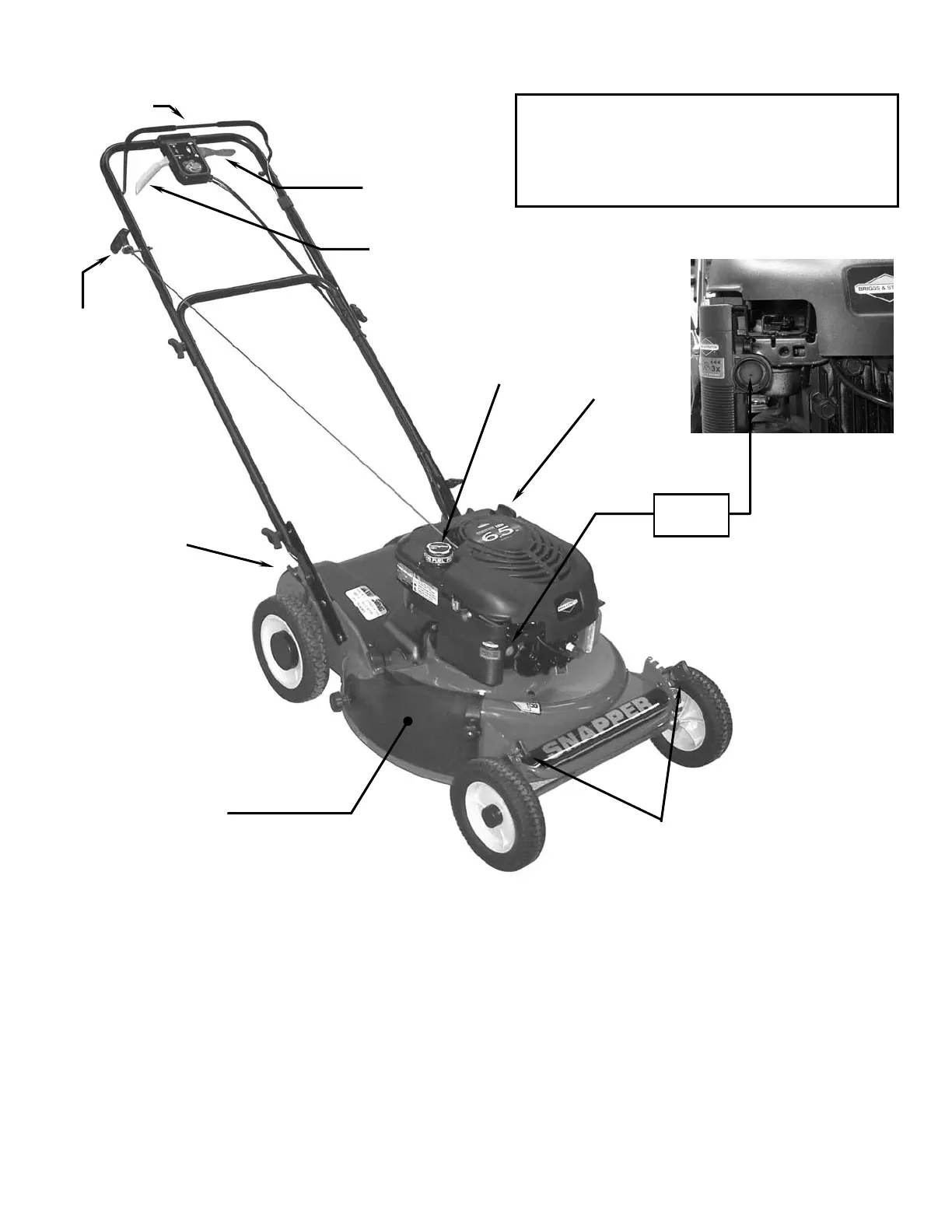

The nomenclature drawing above, Figure 1.1, shows
the essential parts of the SNAPPER ‘EASY LINE’
WALK BEHIND MOWERS. It is recommended that
all operators of the mower become thoroughly
familiar with the controls, parts and operation of the
mower before operating. Specific details involving
the engine are found in the separate engine owner’s
manual. Study these manuals before operating and
keep both handy for future reference.
IMPORTANT
The figures and illustrations in this manual are
provided for reference only and may differ from
your specific model. Contact your Snapper
dealer if you have questions.
WHEEL DRIVE CONTROL
(NOT ALL MODELS)
BLADE
CONTROL
GROUND SPEED
CONTROL
NOT ALL MODELS
FUEL FILLER
CAP
FRONT HEIGHT
ADJUSTMENT
LATCHES
RECYCLING
COVER
OIL FILL CAP
AND DIPSTICK
ROPE START
HANDLE
REAR HEIGHT
ADJUSTMENT
LATCH
ENGINE
PRIMER
